Object after removal of support material
By removing the support material between the dragon and the sphere it holds, a gap is created between the dragon and the sphere, making it possible to design the sphere to rotate.

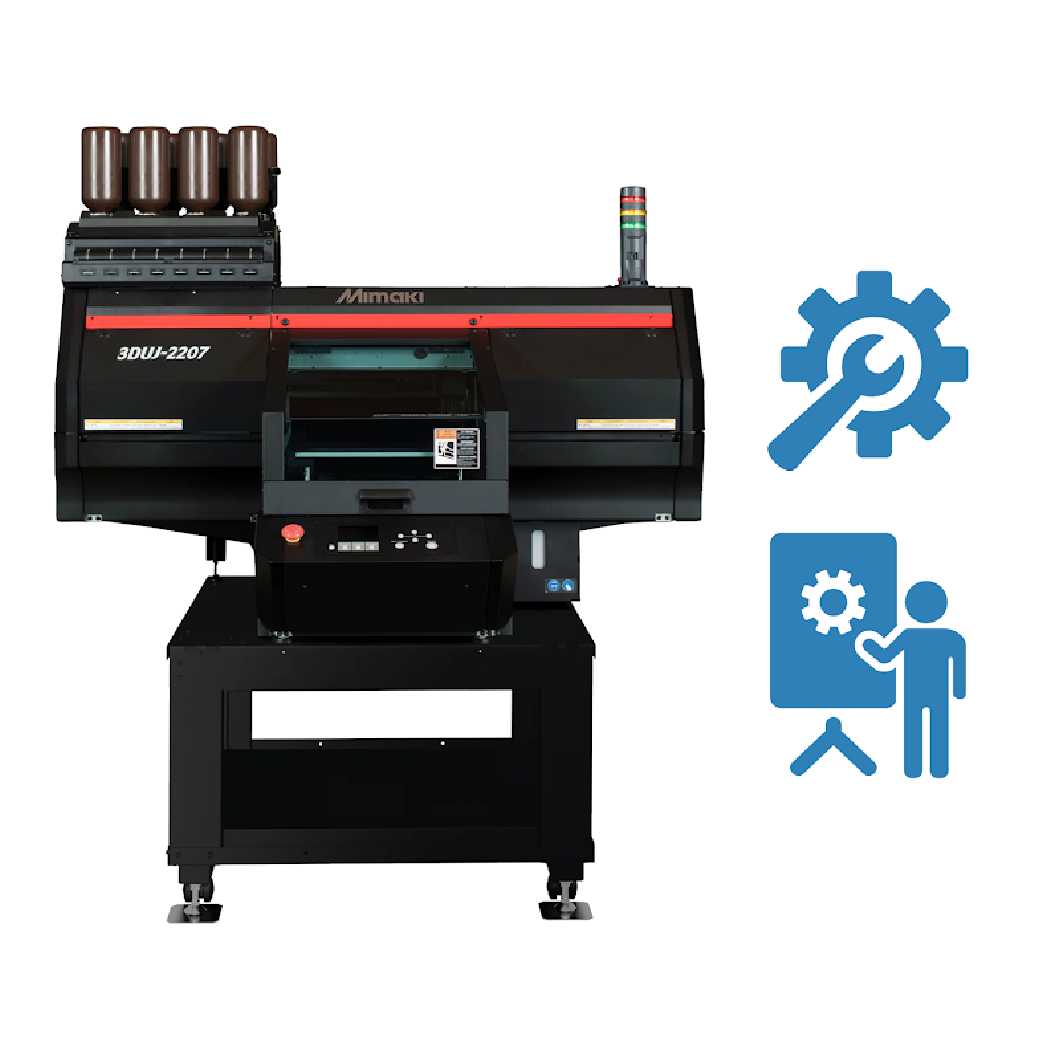

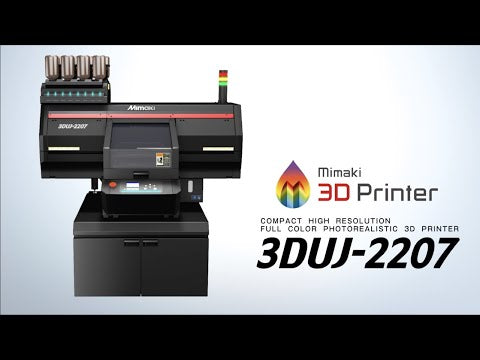

The all new Mimaki 3DUJ-2207 brings affordable colour 3d printing to the workplace. Small, office friendly and with an affordable price tag, 3d printing in brilliant colour is now available to everyone.
Offering more than 10 million colours the 3DUJ-2207 leads the industry for high quality complex full colour prototype models. It even supports ICC profiles which are widely used within the 2d printing space to accurately match colours and create predicatable results.
The Mimaki 3DUJ has a build volume of 203 x 203 x 70mm making it an ideal 3d printer for full colour concept prototypes, medical/reaerch models and custom gaming miniatures. In addition to producing photo quality colour models, the Mimaki 3d printer can also create clear/transluscant parts or areas of a 3d model freeing the possibilites for design engineers when creating a new product concept. This can be taken one step further by mixing the transluscent material with colour to produce opaque parts in any colour the design requires.
The 3DUJ-2207 has a standard layer resolution of 28 microns which means small complex details can be easily achieved.
By removing the support material between the dragon and the sphere it holds, a gap is created between the dragon and the sphere, making it possible to design the sphere to rotate.
Mimaki's 3DUJ-2207 delivers beautifully detailed results in full color, saving a tremendous amount of time and effort having to hand paint a colorless model to achieve the same photorealistic results.
A few or a lot—the Mimaki 3DUJ-2207 Full Color 3D Printer is capable of producing models in any number of colors specific to your application needs.
Need prototypes that have strength? Mimaki's special in-house inks compatible with the Mimaki 3DUJ-2207 3D printer are engineered to deliver ABS plastic levels of durability for longer-lasting prints.
GENERAL | |
---|---|
Technology | UV Curable Inkjet / Material Jetting |
Assembly | Fully-Assembled |
Printheads | Two |
UV Device | Two Air-cooled LED UV Emitters |
Machine Dimensions (W × D × H) |
1355mm × 1290mm × 856mm (53.3" × 50.8" × 33.7") |
Machine Weight | 190kg (419 lbs) |
Installation Area Dimensions (W × D × H) |
1955mm × 2290mm × 856mm (77" × 90.1" × 33.7") |
PRINT VOLUME | |
Max Print Volume | 203mm × 203mm × 76 mm (8" × 8" × 3") |
Max Load Capacity | Less than 3kg (6.6 lbs) |
PRINTER PARAMETERS | |
Number of Possible Colors | Over 10 million |
X Print Resolution | 1200 dpi |
Y Print Resolution | 1200 dpi |
Z Print Resolution (Layer Height) | 28μm |
Absolute Accuracy | ±0.3 mm or ±0.3 % of specified |
Duplicability | ±0.2mm or ±0.1% of specified distance, whichever is greater |
Perpendicularity | ±0.3mm/400mm |
Number of Nozzles | 420 Nozzles x 4 Rows |
Print Speed | 13.3mm per hr |
Curing Speed | 3 - 8 sec per layer (at 100μm depending on resin) |
Build Platform Dimensions (W × D × H) |
510 x 280 x 350 mm (20" x 11" x 13.7") |
PRINTER FEATURES | |
Enclosed | Yes |
Printer Stand | Included |
Air Filtration | Optional Add-on |
Head Collision Prevention | Yes |
Clogged Nozzle Detection | Yes |
Mimaki Circulation Technology1 | Yes |
Waveform Control2 | Yes |
Variable Dot Technology3 | Yes |
