Brand New Mimaki UJF-7151 Plus II Multipurpose UV-LED High Performance Flatbed Inkjet Printer

Please Contact Us To Order 647-998-6637 or email: info (at) absolutetoner.com

CONTACT FOR DETAILS »

Product Information

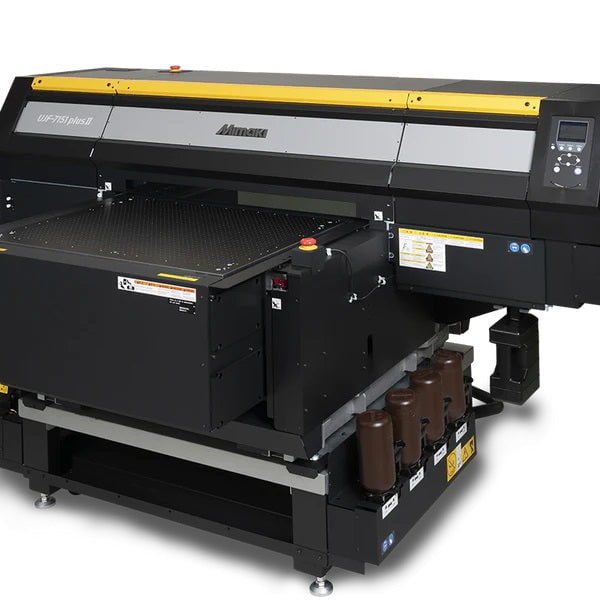

Brand New Mimaki UJF-7151 Plus II Multipurpose UV-LED High Performance Flatbed Inkjet Printer

The Mimaki UJF-7151 Plus II UV-LED printer is a high-performance UV inkjet printer model with high accuracy, high image quality, and high speed, and is a further improvement in quality and stability. It is the next generation model in the world’s best selling UJF Series line. This state of the art printer is geared for high accuracy, high image quality, and industry-leading productivity and stability.
  • Print area of 28” x 20”; up to 6” thick
  • Raised effects and braille capable
  • Capable of printing up to 1800 dpi
  • Print speeds up to 190% faster than the previous model
  • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED Rigid and Flexible inks
  • Pair with our desktop 3D printer to produce jigs, molds for thermoforming or custom models
  • Included RIP software Rasterlink7 has variable data and jig printing functionality
  • Load capacity has been increased from 22lbs to 66lbs

    Specifications

     Print head On-demand piezo head (8 staggered printheads)
     Print resolution 1800 dpi maximum
    Maximum printable area 710 × 510 mm (28 × 20 in)
     Ink  Type/Colour LH-100 (C, M, Y, K, Lc, Lm, W, Cl)
    MUH-100-Si (Si)
    LUS-120 (C, M, Y, K, Lc, Lm, W, Cl)
    LUS-350 (C, M, Y, K, W, Cl)
    PR-200 (Primer)
     Capacity 200ml bottle (MUH-100-Si)
    250ml bottle (LH-100, LUS-120, PR-200)
    1L bottle (LH-100, LUS-120, LUS-350, PR-200)
    Certifications VCCI class A, FCC class A, ETL IEC 62368-1,
    CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
    CB, REACH
     Media Dimensions (W×D) 730 × 530 mm (28.7 × 20.9 in) or smaller
    Height 153 mm (6 in) or less
    Weight 30 kg (66 lb) or less
     Power supply Single phase AC100-240V +6%/-10% 50/60Hz ± 1Hz
     Power consumption Less than 1.3 kVA
    Interface

    USB 2.0 / Ethernet

     Operational environment

    Temperature: 15 - 30 degC (59 - 86 degF)
    Humidity: 35 - 65%Rh (Non condensing)

    Recomended temperature : 20 - 25 degC (68 - 77 degF)

    Temperature change : ±10 degC (±50 degF) /h or less

     Weight 330 kg / 728 lb (including dedicated base)
    Assembled Dimensions (W×D×H) 2,203 × 1,572 × 1,293mm / 87 × 62 × 51 inch

    Features

    High production - High speed printing of up to 8.0m²/h

    The CMYK staggered (4C+4C) setting can be selected without special colors, primer or clear, to achieve print speeds approximately twice as fast as conventional machine.


    UJF-7151 plusII Print speed

    Printhead Configuration: High productivity and high image quality are realized by installing 8 heads, 2 more than the current model.

    For a 8-printhead configuration, two set-ups are available: 6+2 stagger (6C+2SP) or 4+4 stagger (4C+4C/4SP).
    The 6-color configuration, including the newly added light colors (Lc, Lm), enables more natural and smooth gradations and beautiful prints without graininess.

    * Head configuration is selectable at the time of installation, and later modification is also possible. Our service personnel perform such modifications.


    UJF-7151 plusII Printhead Configuration:  6+2 stagger (6C+2SP), 4+4 stagger (4C+4C/4SP)

    Head arrangement Color set Features
    6 + 2 stagger 6C + 2SP High-quality printing with two spot colors added to the 6 colors C, M, Y, K, Lc and Lm.
    4 + 4 stagger 4C + 4C High volume production with high speed printing due to doubling the four colors C, M, Y and K.
    4 + 4 stagger 4C + 4SP Four colors C, M, Y and K as well as four spot colors enhance functionality and expressiveness.

    Color Gloss Function - Glossy texture realized without using a clear ink!


    Equipped with a color gloss function that realize glossy colors with color inks alone. Realize impressive textures different from those of conventional clear inks. Realize impressive textures different from those of conventional clear inks. When exposed to ultraviolet radiation, high ink-density portions become hardened to a glossy tone, and low ink-density portions become hardened to a mat tone.
    Unlike convetional clear ink printing, a just one time printing is very effective.
    * Depending on the media and data, an adequate effect may not be possible, so carry out test printing in advance.


    UJF-7151 plusII Color Gloss Function: Without “Color Gloss” function -> With “Color Gloss” function

    High-definition printing - 1800 dpi maximum, MFD2


    The new 1800x1800 dpi mode is even better than the 1200x1200 dpi mode of the previous model. It is capable of beautifully and accurately reproducing images such as miniature paintings and tiny text.
    In addition, "MFD2" which controls the position of the dots, delivers beautiful image quality with reduced graininess and color irregularities.

    Ink landing system: 1800 dpi maximum

    Strengthened structure of the printer body reduces shaking during printing, allowing ink droplets ejected from the print head to land in more precise positions. This provides for sharp edges and fine lines, and less color irregularities in solid printing.


    UJF-7151 plusII: Ink droplet placement performance is improved, which minimizes placement errors.

    Ball screw mechanism: Mechanical structure for high-precision printing


    UJF-7151 plusII: Ball screw

    Ball screw

    To reduce vibration during printing, the 7151 Series has been modified by having the print table move during printing and installing a fixed Y-bar. Two ball screws have also been added to both sides of the table to assist with its movement.

    Furthermore, the UJF-7151 plusII uses a ball screw system for the Z-axis as well, which greatly increases the load capacity from 10 kg to 30 kg, making it possible to use heavy media and high-precision jigs for industrial applications.


    Improved image quality by supporting MFD2 (Mimaki Fine Diffusion 2)


    Supports MFD2 (Mimaki Fine Diffusion 2) for improved image quality. MFD2 controls the position of the dots to reduce graininess, suppress unintended noise and color irregularities, and enable beautiful prints.

    Patent number / JPN: 7152323


    UJF-7151 plusII: Improved image quality by supporting MFD2 (Mimaki Fine Diffusion 2)

    Mimaki Advanced pass System 4 (MAPS4)


    Generally, swath boundaries are straight lines. Therefore, a slight misalignment between boundaries causes banding or uneven color printing. MAPS4 reduces banding and uneven color printing with blurred boundaries similar to gradation printing.


    MAPS4 applied

    ■MAPS4 applied
    Banding and uneven color printing are reduced by scattering swath boundaries. Beautiful print image is obtained.



    No MAPS4

    ■No MAPS4
    Bandings appear on swath boundaries. Print quality is remarkably degraded because banding is recognizable on each boundary.


    Reliable operating support package


    Ink and media shortage, clogged nozzles, and other minor problems influence stable productivity.
    The UJF-7151 plusII fully supports continuous printing with reliable technologies.

    Printhead ink-circulation system reduces clogging nozzles

    The ink-circulation system in the head reduces ink settling and thus provides stable ink jetting. In addition, this system removes air bubbles, which plug the nozzle.. Thanks to this function, the nozzle-cleaning frequency is reduced, and accordingly, cost-effective stable printing is achieved.


    Head Comparison

    Head Comparison


    Self-recovery

    Self-recovery


    NCU automatically detects and recovers clogged nozzles

    Clogged nozzles are detected automatically by monitoring ink droplets with sensors. When clogged nozzles are located, these are automatically cleaned, reducing waste printing. Nozzles are checked per transfer file.

    NRS for maintaining productivity

    If the clogged nozzles are not recovered after cleaning through the NCU function, the NRS selects substitute nozzles and then restarts printing. This is a significant novelty, since previously, when nozzle cleaning fails, the printhead has to be repaired by a technician, and the printing operation ceases until the printhead is repaired. The NRS* allows the printer to continue printing without interruption by using non-defective nozzles as substitutes for defective nozzles until the technician arrives.*
    *NRS may not be activated depending on print modes.


    NCU, NRS

    *Click to view larger image.





    Highly functional inks realize a variety of expressive effects and printing stability


    Metallic


    The MMC (Mimaki Metallic Control) is the system dedicated to metallic printing using Mimaki's unique "Surface Imaging technology". The MMC printing technology that separately prints one type of metallic ink in gloss and matte tones.
    Using separately the beautiful glossy tone print like mirror finish and the matte tone print of metallic texture with suppressed gloss feeling will expand the range of expressions. Texture expression with embossing effect can be printed by changing the inkjet concentration. The texture expression whose appearance changes according to the light reflection provides a higher level of performance appeal. Color metallic expression is possible by printing with colored ink on top of metallic ink. By combining the application of metallic, color and color metallic, high-quality design print can be available.


    Gloss tone, Matte tone, Texture representation, Color metallic


    White


    White ink: with white undercoat / without white undercoat

    Printing with high-concentration white ink as the basic color on transparent or deep-color media makes full-color images more vivid.


    Clear


    It is a clear ink that can give an additional value such as both gloss and matte tones, texture expression according to the application. UJF-7151 plusII mounting system for clear print control, " MCC (Mimaki Clear Control)" allows the minimization of uncured time to prevent dust from sticking and to avoid bubble generating. It provides high-grade glossy representation and expressive embossing feeling with highly-concentrated clear to lead a fine and beautiful texture print.


    Gloss finish, Matte finish, Embossed print

    Primer


    It is an inkjet primer that improves the adhesion of materials such as resin, glass, metal and those surface-finished.
    Expanding the range of material selection, high value added applications can be produced.


    Selective primer application

    As the primer, PR-200 is applied simultaneously with color printing, the PR-200 applying only to the necessary part of material is possible, too.
    Therefore the texture of the base material that was lost by conventional manual primer applying can be maintained.


    Connected digital printing


    Supports MDL (Mimaki Device Language) commands to automate the printing process

    Mimaki offers command sets to enable customer production systems and peripheral devices to control our printers. Through applying these commands, the position and height of the media setting table, the start of printing, and other printer operations can be controlled. It also allows for the acquisition of remaining ink level and error information from the printer.
    Regarding the MDL command, customers are able to build systems optimized to their individual applications by developing the necessary software using technical information (SDK) provided from Mimaki. The system will contribute to automation and labor saving in customers business.


    Former Production Lines -> Connected Digital Printing
