Product Overview

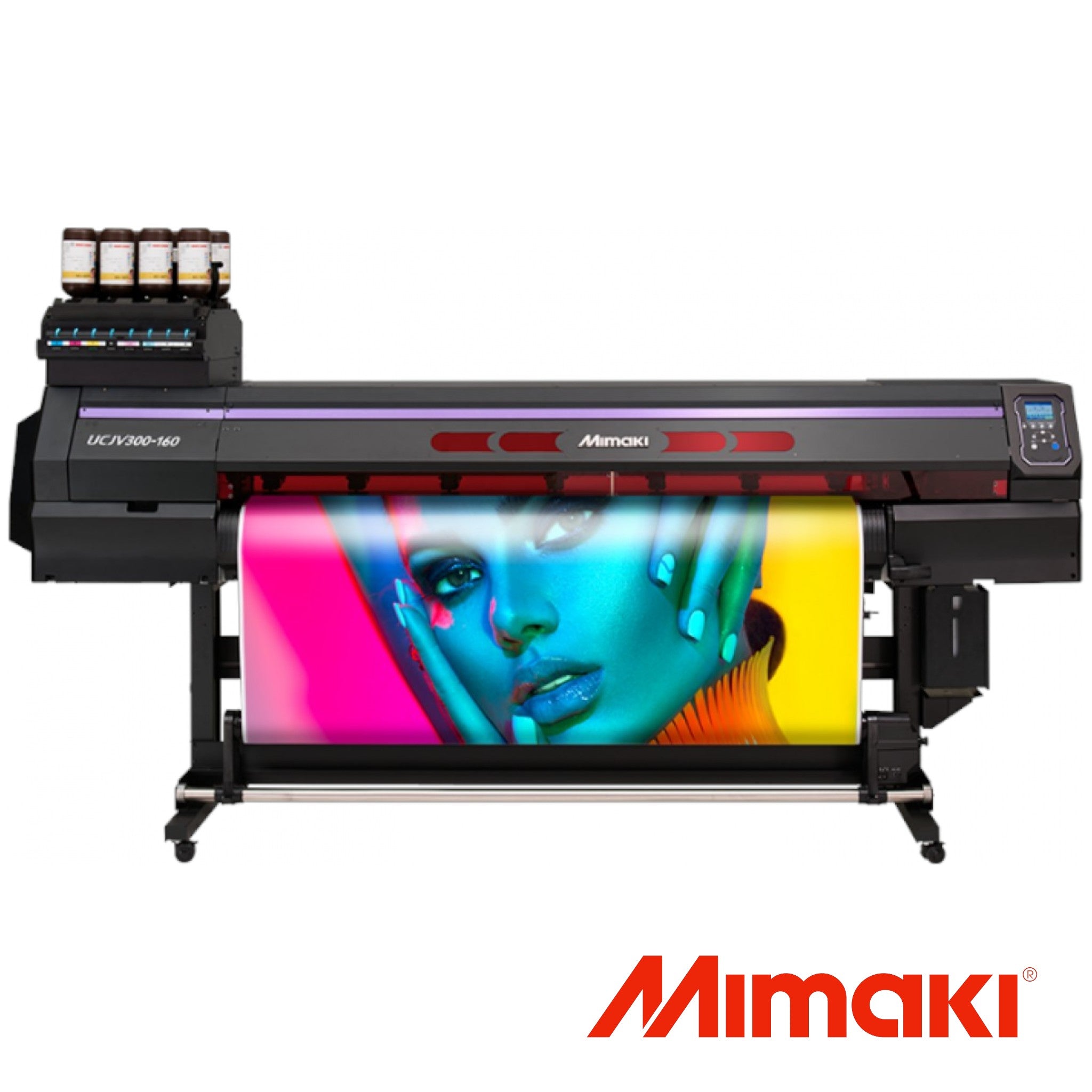

The Mimaki UCJV300-160 is a high-performance, 64-inch UV-LED printer and cutter that delivers unmatched versatility and productivity in a single, compact footprint. Engineered for professionals in signage, vehicle graphics, packaging, and specialty printing, the UCJV300-160 offers integrated print-and-cut functionality, instant-dry UV inks, and innovative multi-layer printing capabilities.

This model empowers print service providers to create vibrant, high-resolution prints on a wide range of substrates while reducing turnaround time, waste, and energy consumption.

Key Features

1. Integrated Print-and-Cut Workflow
Automate your production line with seamless print-and-cut functionality. Eliminate alignment issues and save valuable time by completing both processes on one device.

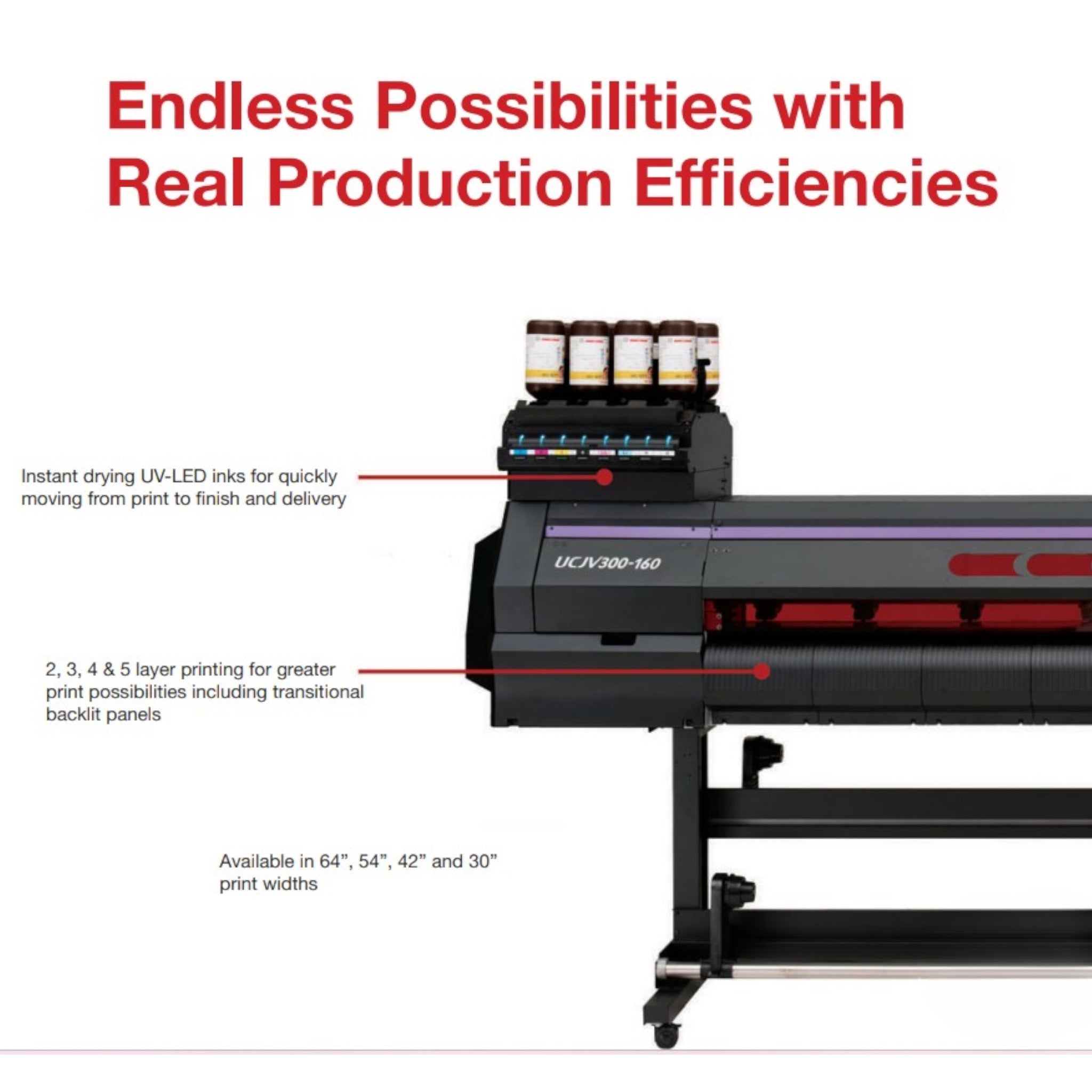

2. Multi-Layer Printing (2-, 3-, 4-, and 5-Layer)
Create advanced graphics with up to 5-layer composite prints. Applications include day/night backlit panels, double-sided window graphics, and layered label designs.

3. Instant-Dry UV-LED Inks
Prints are immediately dry and ready for finishing or delivery, improving workflow efficiency and reducing bottlenecks.

4. White and Clear Ink Support
Print on transparent, colored, or specialty media with white ink to enhance opacity or create stunning effects using clear ink and texture layers.

5. ID Cut Function
Simplify post-processing with automated cutting sequences driven by printed barcodes and registration marks—ideal for jobs with multiple SKUs or design variations.

6. Eco-Conscious Design
Equipped with low-power LED lamps and certified GREENGUARD Gold UV inks, the UCJV300-160 supports a more sustainable, low-emission print environment.

7. Advanced Cutting Tools
Features include half-cut, overcut, zero margin, and continuous crop mark functions, delivering superior accuracy for intricate sticker, label, and contour-cut designs.

8. Nozzle Recovery System
Automatically reassigns printing tasks to working nozzles in the event of a clog, ensuring consistent quality and minimizing downtime.

9. RasterLink6 Plus RIP Software
Mimaki’s bundled RIP software enables advanced layering, barcode automation for ID Cut, and over 100 preloaded Artista textures for specialty finishes.

Specifications

• Maximum Print Width: 63.4 in (1,610 mm)
• Maximum Media Width: 63.8 in (1,620 mm)
• Media Thickness: Up to 0.04 in (1 mm)
• Roll Media Weight: Up to 88 lbs (40 kg)
• Print Resolution: 300 / 600 / 900 / 1,200 dpi
• Max Print Speed: Approx. 195.9 SqFt/Hr (25.8 m²/h)
• Power Supply: AC100V~240V x 2
• Power Consumption: AC100V: 1.44 kW / AC200V: 1.92 kW
• Operational Environment: 68°–86°F (20°–30°C); 35–65% RH
• Dimensions (W x D x H): 114.2" x 30.6" x 58.1" (2,900 x 776 x 1,475 mm)
• Weight: 414.5 lbs (188 kg)

Supported Applications

• Signage (indoor & outdoor)
• Vehicle wraps and fleet graphics
• Window displays and clings
• Floor graphics
• Packaging prototypes
• Labels, decals, and stickers
• Backlit and dual-view panels
• POP displays and posters

Ink Configuration

LUS-170 UV Ink (CMYK, Lc, Lm, White, Clear)

Lc and Lm stand for:

• Lc = Light Cyan
• Lm = Light Magenta

These are lighter variations of the standard Cyan (C) and Magenta (M) inks. Here's why they matter:

• Purpose of Lc and Lm:
  Smoother color gradations: They help produce finer transitions, especially in light areas, skin tones, and gradients.
• Higher photo-quality output: Ideal for applications where photorealistic detail and soft tones are important—like fine art prints, close-up signage, and premium graphics.
• Reduced graininess: Lc and Lm help minimize visible dot patterns in light-colored areas.

LUS-200 UV Ink (CMYK, White)

• Supplied in 1-liter bottles
• Instant drying for immediate post-print processing
• GREENGUARD Gold certified

Why Choose the Mimaki UCJV300-160?

The UCJV300-160 combines precision, flexibility, and productivity in a single unit, delivering tremendous value for any print service provider seeking to expand into high-margin applications. Whether you’re printing intricate decals, high-impact window graphics, or eco-conscious signage, this printer is built to meet the challenge—with uncompromised quality and reliability.
