WE WILL BEAT ANY PRICE - Brand New Mimaki UCJV300-160 64" Inch UV Light Curable Inkjet Printer And Cutting Plotter With ID Cut Function

Sale price
$26,995
Regular price
$29,995
You save
$3,000 (11%)
Please Contact Us To Order 647-998-6637 or email: info (at) absolutetoner.com

Product Information

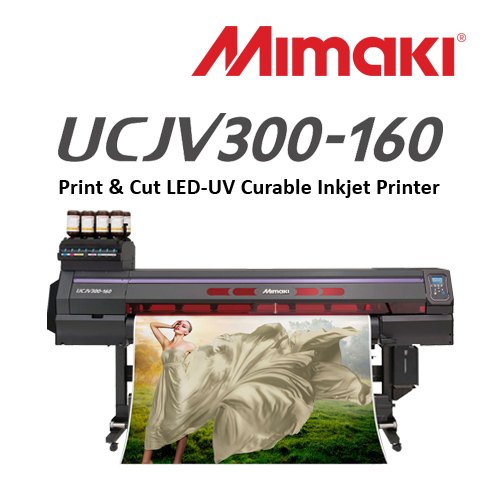

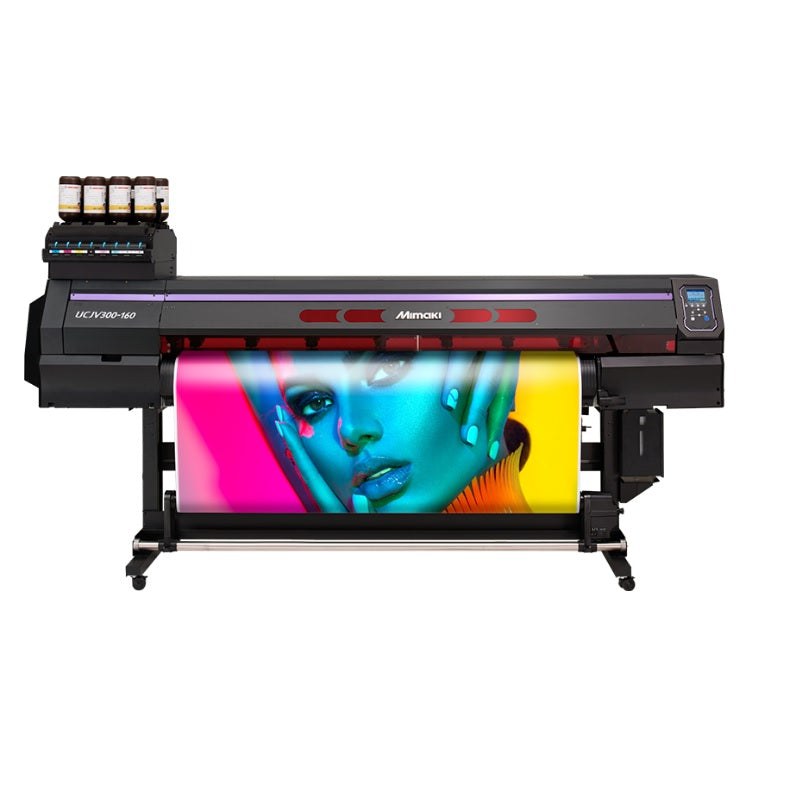

Brand New Mimaki UCJV300-160 64" Inch UV Light Curable Inkjet Printer And Cutting Plotter With ID Cut Function

Leading The Way For UV-LED Technology

Optional Colors:

Cyan Magenta Yellow Black Light Cyan Light Magenta White Clear

Mimaki is proud to continue paving the way in UV-LED printing. Our revolutionary technologies have enabled us to improve print quality, speed, and versatility. The UCJV300 Series offers unparalleled flexibility and benefits to businesses of all types. The UCJV300 print-and-cut family offers in-line cutting capabilities and features multi-layer printing for transitional or double-facing images. Graphics are instantly cured, so you can efficiently create applications that will meet (and exceed) your customers’ needs. Our state-of-the-art print-and-cut machines offer benefits such as:

  • Available in 32”, 42”, 54”, and 64” with print speeds up to 277.7 SqFt/Hr
  • Highest media versatility with unparalleled scratch resistance
  • Print and cut capability in one unit
  • Instantly cured prints for shorter turnarounds and additional cost savings
  • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks
  • 3M™ MCS™ Warranty on LUS-200 inks and Avery Dennison™ ICS™ Performance Guarantee on LUS-170/LUS-200 inks
  • RIP software RasterLink6 Plus with ID cut function included



  • Wide format, UV-LED cut-and-print devices
  • Maximum Media Width 64" Inch
  • 4 or 7 color configuration
  • Four-layer printing to build layered, transformative graphics for backlit applications
  • Integrated cutting capabilities
  • Instant-dry for instant use
  • 1-liter ink bottles

The Mimaki UCJV300-160 cut-and-print devices provide more than a simple print and cut experience: it goes beyond extraordinary to deliver an awe-inspiring range of applications and versatility. Create stunning transitional backlit panels that ‘change’ color schemes with the light source. Print and cut – or cut first then print – labels, decals, window clings, vehicle markings, etc., all on one unit. Flexible UV cure inks expand the possibilities for you to offer unique capabilities to keep you competitive.

    Features

    1. "Multilayer print" for a new advertisement expression

    1) 4 layer print [Day & Night Printing]

    The combined solutions of the 4 layers print and the inside lighting of graphic will present the amazing image-change named [Day & Night Printing] when the printed media is lighted from the back.
    It is a particular sign method with an appeared image switching between daytime and nighttime, double face print of front and reverse image by multi layers print. They will contribute to receive a high value-added job to your business, because such advantageous methods have been difficult.

    [Day & Night Printing] : 4 layers print configuration image


    [Day & Night Printing] : 4 layers print configuration image

    [Day & Night Printing] : 4 layers Sign applying image


    [Day & Night Printing] : 4 layers Sign applying image

    Utilizing the plug-in tool of Adobe illustrator, [RasterLink Tools] of newly upgraded [RasterLink6Plus] enables to confirm the final image of 4 layers print on the PC monitor of Illustrator operation. As the view while backlight ON & OFF is shown before print at the monitor (*), it saves a retry of print to reduce media losses.
    * Preview does not completely show the same with the practical image while backlight ON & OFF.


    [RasterLink Tools] screen (image)

    [RasterLink Tools] screen (image)




    2) 5 layer print [Front & Back Printing]


    Different printed design can appear on the "Front and Back" by one time print.
    By printing on a transparent film with five layers, the [Front&Back Printing] of different design on the two sides is realized. A different image of indoor and outdoor of one window sign, etc. , it is a new proposal of more attractive sign with higher design property.


    5 layer print [Front & Back Printing]

    5 layer print [Front & Back Printing]: Outside / Inside

    2. On-demand print utilizing UV characteristics


    1) Quick access to next processing and sign applying due to UV ink property

    With the UV ink property of immediate curing upon UV light irradiation, no drying time is required. The post-processing and sign applying are possible instantly, improving the productivity and receiving an order of short delivery time.


    Max. 90% of working time is shortened!

    2) Wider application range with UV print


    -1- Vibrant print with eye-catching

    According to the higher color density of UV than solvent, UV print can create a more vivid color expression. The color brightness of UV is the key to add value to created signs.

    Comparison of UV and solvent printer (image)


    Comparison of UV and solvent printer (image)

    UCJV300/150 can create more vivid expression with a higher color density. High color density print is not easy by solvent as the property of taking time of drying for ink bleeding.


    -2- Possible to print wider range of materials for broadening applications


    By applying UV ink, not only PVC and tarpaulin, also, other materials difficult to solvent and latex such as fabric, paper and PET film are printable. UV can provide a diverse printing application.

    Banners and flags (fabric)

    Banners and flags (fabric)

    UV ink is good to print fabric as no bleeding because of the quick ink curing upon UV irradiation.

    Shoji (sliding paper door---Japanese paper)

    Shoji (sliding paper door---Japanese paper)

    Paper print such as Japanese paper is also available. Shoji, fan and poster in paper should be fine to print.

    Letter printing to wall paper (patterned wall paper)

    Letter printing to wall paper (patterned wall paper)

    Utilizing white ink enhances the good opacity to print letters and illustration on patterned or deep colored wall papers.

    Swing P.O.P. (PET film)

    Swing P.O.P. (PET film)

    Available to print PET film, too. Making both promotional goods and sign boards is an attractive proposal to your clients.

    Stickers (Colored media)

    Stickers (Colored media)

    White ink is effective to print on color media.


    3. Newly developed environmentally friendly UV ink, [LUS-170] and [LUS-175]


    [GREENGUARD Gold] certification

    Newly developed ink, [LUS-170/175] adaptive to environment, generates hardly VOC and can cure without the irradiation of short wavelength UV. [LUS-170/175] yellow ink is eco-friendly and nickel free though general yellow inks are compounding it. [LUS-170/175] gained the [GREENGUARD Gold] certification, which is based on most strict global standard of chemical substance diffusion.
    And its adaption of the criteria is approved by the 3rd party of certification authority.
    [GREENGUARD Gold] certification assures the product property conforms to schools and medical facilities.
    * [LUS-175] is only available in specific countries


    Clear ink added! New!


    Visibility of indoor poster is enhanced.

    Glossy printing can give the finish of high-quality feeling with the effect of freshness and sizzling of food.
    In comparison to a standard poster, a poster wth glossy printing can get higher visibility.


    Glossy printing

    Texture expression

    Printing the clear texture on the color print can create the expressive design to get one that cannot help touching it at a glance.
    UCJV300 Series are suitable for an easy operation of Print & Cut to create a POP having the texture expression by clear ink on the color print.


    Texture expression

    Clear print on the transparent film

    Matte finish printing on the transparent film can create the window display like frosted glass using an irregular reflection of light by the printed clear ink on the film surface.
    The new graphic expression with the UV clear ink can extend widely the business possibilities.


    Matte finish printing on the transparent film

    4. Flexible UV Ink [LUS-200] New!


    [GREENGUARD Gold] certification

    The LUS-200 ink has 200% stretchability after curing.
    The ink film retains the print quality, and will not crack even when printed materials are bent or stretched during post-print processes.
    [LUS-200] also gained the [GREENGUARD Gold] certification.


    5. Productive cutting functions. A new function of [ID Cut] will improve the work efficiency


    1) Print & Cut is available by one unit printer


    Label

    Having high function and high performance cutting, [UCJV300/150-160] is possible to make labels and stickers by one unit.
    Several productive cutting functions are prepared to [UCJV300/150-160], which are selectable to suit your job:

    • [Continuous registration mark detection] for consecutive cutting,
    • [Over Cut / Corner Cut] for cutting sharply on preventing an occurrence of uncut,
    • [Intermediate Cut] for a correct cut of long outline by multiple corrections of position with intermediate registration marks,
    • [Register mark of Zero margin] for saving media losses to eliminate the margin between register marks.

    And more.


    2) A newly equipped function [ID Cut]: Quicker and easier operation


    [ID Cut] is a function to print together crop mark and ID for recognition of cutting details and media rotation of job and then cut data of every print data is readable to start the cut automatically.
    It saves the labor of confirmation of media direction and no need to have every cut order by operator on the RIP, even in a case of multiple types of small lot cut. It reduces media loss by data transmission error.

    ID Cut function (image)


    ID Cut function (image)

    Specifications

     Print head On-demand piezo head
     Print resolution  300dpi, 600dpi, 900dpi, 1200dpi
    Droplet size Min. 7pl, Max. 28pl
     Head gap  3 degrees adjustment (2.0/2.5/3.0 mm) by manual
     Ink  Type/Colour
    LED-UV ink: LUS-170 (C, M, Y, K, Lc, Lm, W, Cl)
    LED-UV ink: LUS-175 (C, M, Y, K, Lc, Lm, W, Cl)
    *Only available in specific countries
    LED-UV ink: LUS-200 (C, M, Y, K, W)
     Capacity 1L (Bottle supply)
     Maximum print width  1,610mm (63.4")
     Media  Maximum width  1,620mm (63.8")
     Thickness  1 mm or lower
     Roll weight 40 kg (88.2 lb) or less
    roll outer diameter φ250 mm or less
     Cutting function  Cutting speed Max. 300 mm/s (420 mm/s in 45 degrees direction)
     Acceleration  Max. 0.5G
     Cutting pressure 10-450 gf
    Cutter Types
    Eccentric cutter, Blade for small character, Blade for reflective sheet, Blade for fluorescent sheet, Blade for PVC with low-pressure
     Interface USB2.0 / Ethernet 1000 BASE-T
    Safety standard VCCI Class A / FCC Class A / Compliant with UL 60950-1, ETL / CE Marking (EMC, Low voltage, Machinery directive) / RoHS / CB Report / REACH, ENERGY STAR® / RCM
     Power supply Single phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz)
     Power consumption AC100V: 1.44kW / AC200V: 1.92kW
     Operational environment Temperature: 20-30 degC / 68-86 degF
    Humidity: 35-65% Rh (Non condensing)
     Weight 188 kg (414.5 lb)
    Dimensions (W×D×H) 2,900 x 776 x 1,475 mm (114.2 x 30.6 x 58.1 in)
