$95.85/Month Brand New Mimaki CG-130AR 54" Professional Roll to Roll Cutting Plotter With Over Cutting and Corner Cutting with 5 Year Parts Warranty

Lease To Own For Only:
Price
$95.85
Per Month
Please Contact Us To Order 647-998-6637 or email: info (at) absolutetoner.com

Product Information

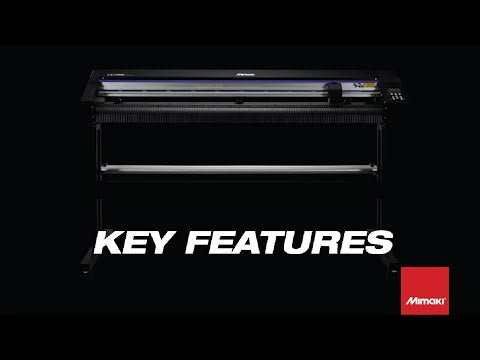

Brand New Mimaki CG-130AR 54" Professional Roll to Roll Cutting Plotter With Over Cutting and Corner Cutting with 5 Year Parts Warranty

Mimaki CG-130AR is the entry-model of cutting plotter with improved cutting performance, compatibility with a wide range of cutting materials, and enhanced usability, all at an affordable price.

In addition to cutting letters, labels, and stickers, the CG-130AR newly supports full cutting and folding lines of cardboards. It can also produce packages up to A3 size by using dedicated options.

Specification

  • Acceptable sheet width - 90 - 1,550 mm (3.5 - 51.0")
  • Effective cutting area - 1,370 mm × 51 M (53.9" x 167.3')
  • Maximum speed Cutting - 73 cm/s (28.7"/s), Moving at 45° direction: 103 cm/s (40.5"/s)
  • Adjustable speed range - 1 - 10 cm/s (1 cm/s step adjustment): 0.4 - 3.9"/s (0.4"/s step adjustment, 10 - 73 cm/s (5 cm/s step adjustment): 4.0 - 28.7"/s (2.0"/s step adjustment)
  • Mechanical resolution - X direction: 2.5 μm, Y direction: 5 μm
  • Command resolution - 25 μm, 10μm(MGL-IIc) / 100 μm, 50 μm(MGL-Ic1)
  • Repeatability - ± 0.2 mm / 2 M
  • Effective Repeatability - 1,350 mm × 2 M
  • Maximum pressure - 550g
  • Range of down pressure
    • Cutter 10 - 20 g (2 g step), 20 - 100 g (5 g step), 100 - 550g (10g step)
    • Pen 10 - 20 g (2 g step), 20 - 100 g (5 g step), 100 - 150g (10 g step)
    • Creasing tool 10 - 20 g (2 g step), 20 - 100 g (5 g step), 100 - 550g (10g step)
  • Acceptable sheet - Vinyl sheet, Fluorescent type vinyl sheet, Reflective sheet, Rubber sheet and Cardboard (used in combination with an optional sheet table)
  • Acceptable tool - Eccentric cutter, Creasing tool, commercially available ball-point pen
  • Type of command - MGL-IIc / MGL-Ic1
  • Interface - USB, RS-232C, Ethernet
  • Receiver buffer size - About 27 MB as standard (17 MB when sorting is effective)
  • Operational environment - Temperature: 5 - 35 degC (41 - 95 degF), Humidity: 35 - 75 % Rh (Non-condensing)
  • Power supply - AC 100 V - 240 V 1A 50/60Hz
  • Power consumption - 168W or less
  • Dimensions(W×D×H) - 1,810 × 580 × 1,160 mm
    (71.3 × 22.8 × 45.7")
  • Weight - 43kg (94.8 lb)
  • Stand - Standard equipment

Features

Best-in-class cutting pressure of 550 g and the speed improved to 105% of the conventional model

The cutting pressure can be selected from 10 g to 550 g, and three types of cutting are possible: normal cutting, complete cutting, and half cutting. The machine can cut a wide variety of materials, including PVC, fluorescent and reflective sheets, and rubber sheets.


Normal cutting / Full cutting / Half cutting

Optional products for cutting cardboard can be added to produce packages up to A3 size


CG-AR Series are now capable of producing high-quality cutouts from plain paper to cardboard with the use of optional products for cardboard cutting, such as a Sheet table, Cutting sheet, Blade for heavy paper and Creasing tool. Using this machine, you can produce paper crafts and packages.


Installation of a sheet table -> Setting cardboard attached to a cutting sheet on the table. -> Cutting is performed with a cardboard cutting blade, and the creasing-tool makes folding lines.

Examples of production


Paper craft / Package

Supporting for Windows plotter driver allows you to cut without the need for dedicated software


With use of familiar software such as Microsoft Word/Excel/PowerPoint, cutting is now as easy as outputting from a general office printer.


Supporting for Windows plotter driver allows you to cut without the need for dedicated software

"ID Cut function" provided for efficient Print & Cut


"ID cut" is a function for automatically cutting data included in an ID simply by scanning the ID register marks output by Mimaki's optionally available printer*. Data transmission from the PC is completed with one-time operation, which drastically saves labor for print & cut and enhances work efficiency.


"ID Cut function" provided for efficient Print & Cut

"Mimaki Remote Access (MRA)" enables to check the machine operation status and operate the panel from a distance


It is now possible to check the status of the cutting plotter remotely from your iPhone or PC. This function enables operators to check the operation status of the machine and to operate the panel from a distance, allowing them to work more efficiently.


"Mimaki Remote Access (MRA)" enables to check the machine operation status and operate the panel from a distance

Various convenient functions


Over cutting and corner cutting

Over cutting and corner cutting of starting & ending points and other corners are possible, which prevents incomplete cutting.


Over cutting and corner cutting

Continuous Crop Mark Detection


Crop marks are automatically and continuously detected. Printed graphics are accurately contour cut due to the compensation for image distortion. The detection of a maximum of 4 crop marks provides a precision finish.
Nested data which are continuously arranged in the directions of X-axis and Y-axis are cut by automatically making corrections.



Segment Compensation


Intermediate crop marks of the feed direction are detected, enabling four-point corrections for each segment. This leads to accurate, long-length cutting, even if the image is distorted.

Picture: Intermediate crop marks can be made by FineCut.


Intermediate crop marks can be made by FinCut.




Other functions


  • Division Cut Function: Cut is performed by splitting a space larger than the sheet width or splitting long data in the X-axis (feed) direction and the Y-axis (width) direction to avoid cut position gap.
  • Ethernet Connection: Network control via integration into office LAN.
  • Improved assembly and installation: Up to 30% weight reduction for simplified assembly. The addition of rubber feet makes it easier to adjust the rattle when installing on a tabletop.
  • Improved cutter holder: The cutter blade can be changed with less operation than conventional products. (4.5 turns of the knob -> 2.5 turns)
