Yealink CP960

This is the BASIC Yealink CP960, Powered by PoE
Wireless Microphone and Power Adapter are sold Separately

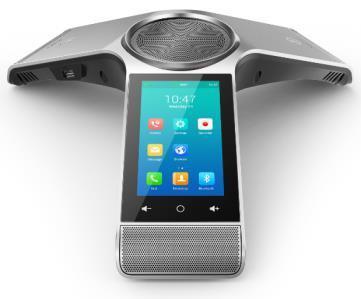

Yealink CP960 Optima HD IP Conference Phone

• Display - 5' 720x1280 capacitive touch screen
• Room Coverage - 20-foot (6-meter) microphone pickup range
• Speaker Phone - Full-duplex speakerphone with AEC
• Ethernet Connectivity - 1 x RJ45 10/100M Ethernet port
• PoE - Power over Ethernet (IEEE 802.3af ), class 4
• QoS - 802.1p/Q tagging (VLAN), Layer 3 ToS, DSCP
• Warranty - 1 Year - Direct from the Manufacturer

The Yealink Optima HD IP Conference Phone CP960, comprising the power of the Android 5.1 operating system. With user-centric design philosophy, this Y-shape brand new release from Yealink combines simplicity of use with sophistication of features, being perfect for any team environment, especially for medium to large conference room. In regard of its crystal-clear audio quality, your conversation will sound natural and bright anywhere with well-designed CP960, and beyond that, you can connect an external speaker to it if necessary.

Features:

Key Features

• Optimal HD audio, full duplex technology
• 20-foot and 360-degree microphone pickup range
• Two additional CP Wireless Expansion Mic CPW90

Built-in 3-microphone array

• Based on Android 5.1 operating system
• 5-inch multi-touch screen with 720x1280 resolution
• Power over Ethernet
• 5-way conference call
• Built-in Wi-Fi/Bluetooth
• Connect to PC via USB Micro-B port
• Support call recording

Display

• 5' 720x1280 capacitive touch screen
• Volume key
• Home button

Interface

• 1 x RJ45 10/100M Ethernet port
• Power over Ethernet (IEEE 802.3af ), class 4
• 2 x Wired MIC port
• 2 x USB 2.0 port
• 1 x 3.5mm audio-out port
• 1 x USB 2.0 Micro-B device port
• 1 x Security slot

Network and security

• SIP v1 (RFC2543), v2 (RFC3261)
• SIP server redundancy supported
• IPv4/IPv6
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS, DSCP
• SRTP for voice encryption
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication using MD5/MD5-sess
• OpenVPN, IEEE802.1X

Audio features

• Optimal HD audio
• 20-foot (6-meter) microphone pickup range
• Apply to medium to large conference room
• Built-in 3-microphone array, 360 degree voice pickup
• 56mm diameter and 10w speaker
• Full-duplex speakerphone with AEC
• Echo cancellation tail length is up to 320ms
• Background noise suppression
• Codecs: G722, G722.1C, G726, G729, G723, iLBC, Opus
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• VAD, CNG, PLC, AJB, AGC
