Yealink YEA-EXP20 for T27P T27G T29G

Yealink EXP20 IP Phone Expansion T2X Series

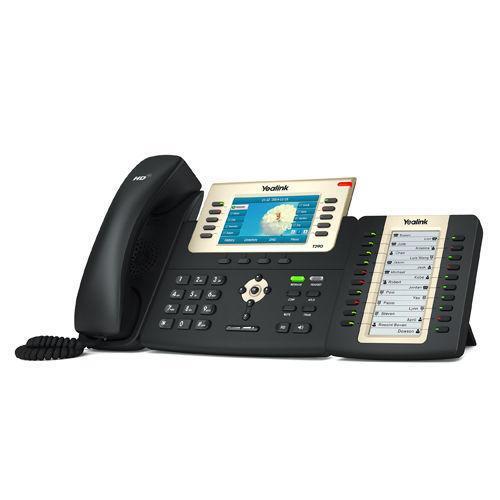

The Yealink EXP20 IP Phone Expansion T2X Series is an expansion module that provides added operational functions and simplifies user navigation when used with Yealink SIP-T27P and SIP-T29G IP phone models. Measuring 160x320 pixels, the YEA-EXP20's large and user-friendly liquid crystal display (LCD) interface contains 20 physical dual-color LED Keys.

Yealink EXP20 IP Phone Expansion T2X Series Overview

Funtionalities of this expansion module include, speed dial, BLF, BLA, call forwarding, and transfer and hold, which make the YEA-EXP20 a perfect IP phone system for receptionists and call center emvironments where there is a great need to monitor and manage large volume of calls on a regular basis. This expansion module allows users to daisy chain up to six XP20 phone systems.

Yealink EXP20 IP Phone Expansion T2X Series Features and Specifications

• A diverse range of actionable,

• LCD-accessible icons

• 160x320 graphic LCD with backlight

• 20 physical, dual-color LED programmable keys

• 18 additional keys available

• Supports up to six modules

• Two accessible pages

• Stand with two adjustable angles

• Two or less expansion modules can be powered

• by the host phone

Physical Features:

• Stand with two adjustable angles

• Two or less expansion modules can be

• powered by the host phone

• Supports up to six modules

• 2xRJ12（6P6C）ports for data in and out

• Dimension (W*D*H*T): 122mm*143mm*110mm*45mm

• Applies to Yealink SIP-T27P/SIP-T29G

• Operating temperature: -10~50°C ( 14~122 °F)

• Operating humidity: 10%-95%
