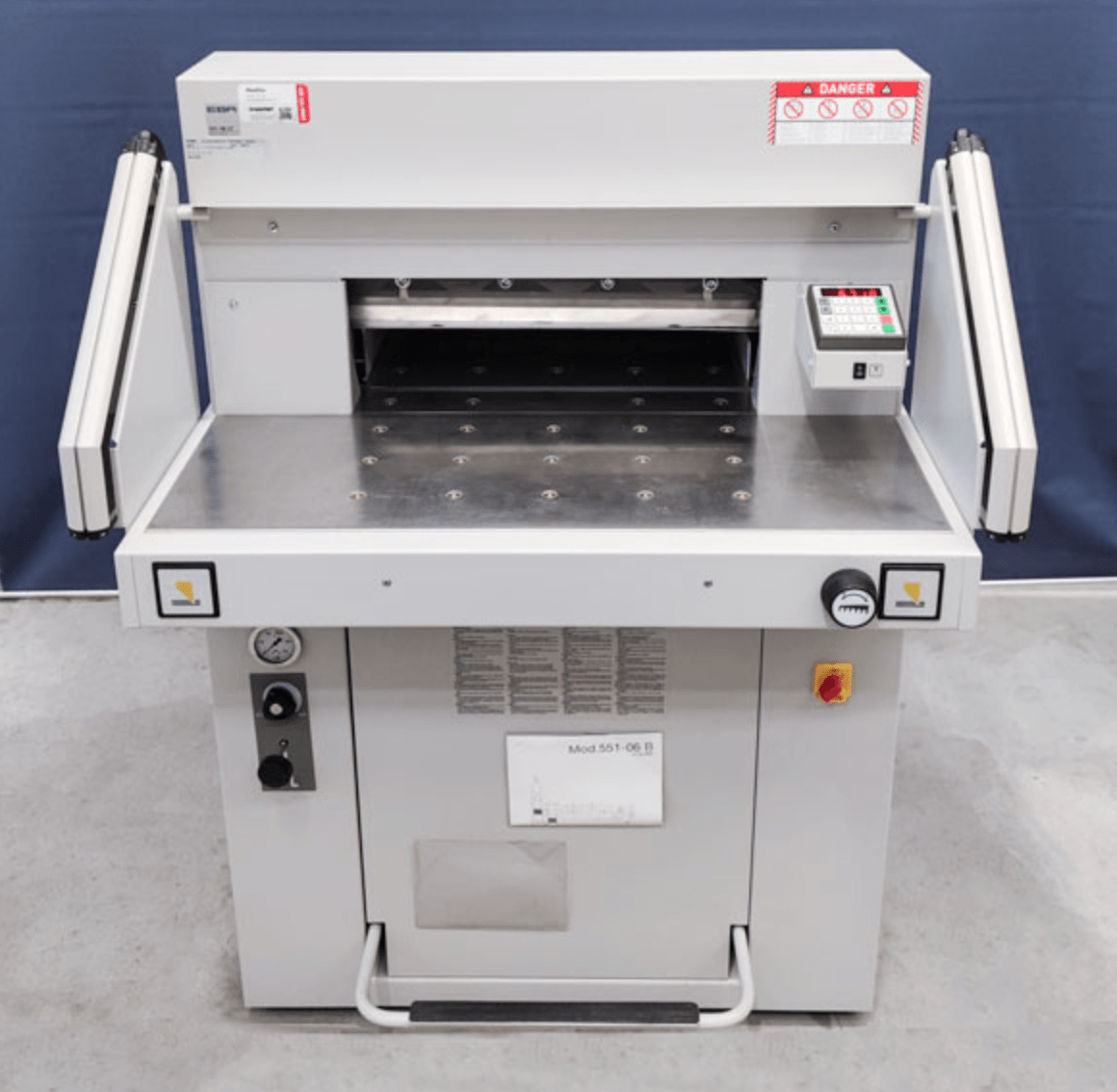

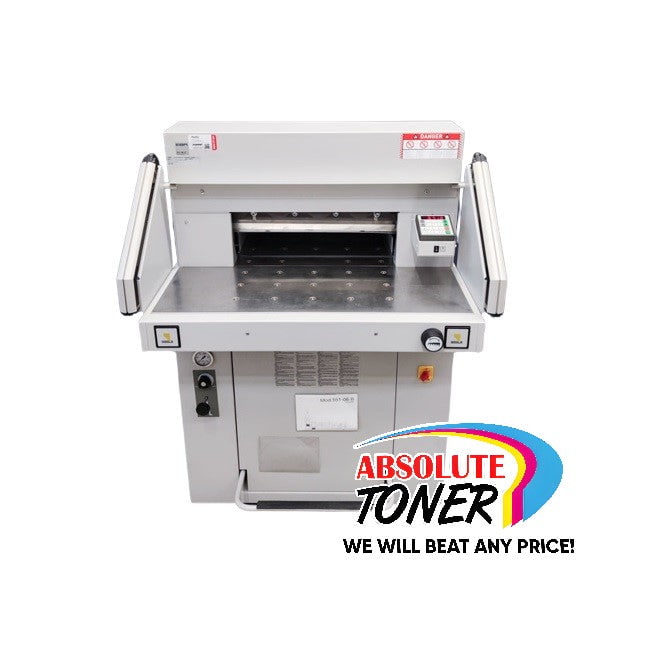

Programmable Hydraulic Paper Cutter Guillotine EBA with Photocell, Light cutting Beem and Foot Pedal

The EBA 551-06 employs the latest technology to provide a fully configured commercial print guillotine for the B3 and digital print market. The guillotine includes a hydraulic clamp drive to enable fine control over the holding of the stack to be cut without damaging the print work. A foot pedal provides preclamping. It adds up to a highly versatile machine able to cope with a wide range of print work and material types.

Features

• Hydraulic blade drive and stack press
• Electromechanical spindle drive of the staple stop
• Continuously adjustable pressure of the stack press with the display of the pressure value
• Electronic handwheel for fast travel of the stop with feed rate controller
• Foot pedal for pre-pressing or for marking the cut
• Optical location of the cut
• The surface of the stainless steel cutter table
• Quality HSS knife
• Cast iron knife holder with double-sided guide
• Adjustable depth of cutter blade
• Transport wheels

Specifications

• Cutting length / mm 550
• Pile height / mm 95
• Max. depth of stack insertion / mm 570
• Front Table Depth / mm 460
• Min. residual cut from stop / mm 32
• Power supply / V / Hz 230/50
• Engine power / kW 1.5
• Weight / kg 350
