Absolute Toner $248.91/Month Mimaki JV300-160 Plus 64" Inch Eco-Solvent Print/Cut Cutter Printer With Mimaki Advanced Pass System 4 (MAPS4) Print and Cut Plotters
Absolute Toner $248.91/Month Mimaki JV300-160 Plus 64" Inch Eco-Solvent Print/Cut Cutter Printer With Mimaki Advanced Pass System 4 (MAPS4) Print and Cut Plotters

$295/Month Mimaki 64" JV300-160 2 NEW ORIGINAL DX7 Heads 64" Inch Eco-Solvent Wide Format Printer for Fast Production Printing Using Mimaki Advanced Pass System 4 (MAPS4)

Lease To Own For Only:
Sale price
Regular price
Per Month
Please Contact Us To Order 647-998-6637 or email: info (at) absolutetoner.com

Product Information

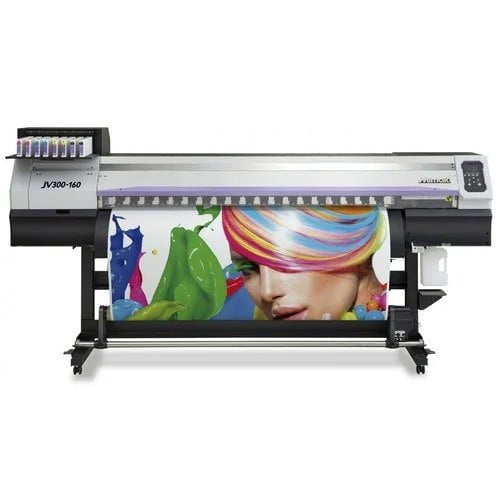

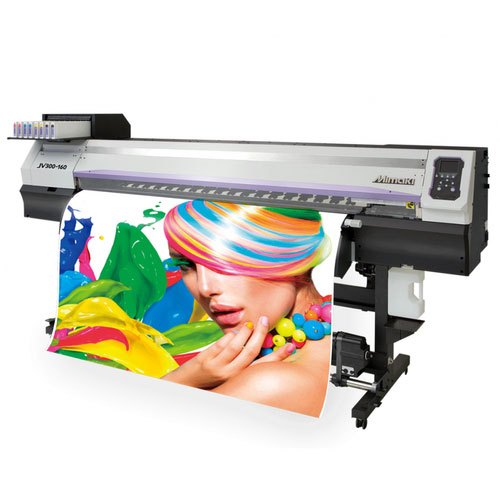

Mimaki JV300-160 Plus 64" Inch Eco-Solvent Wide Format Printer Super Fast for Production Printing Using Mimaki Advanced Pass System 4 (MAPS4)

Perfect for:

  • Stickers & Labels

  • Decals

  • Clothing Decoration

  • POS & POP

  • Posters

  • Window Graphics

  • Glassware

  • Home Décor

  • Gifting

What can it print onto?

  • An extensive range of flexible materials

  • Self-adhesive vinyl

  • Canvas

  • Contra Vision

  • Pop-up and roll-up

  • Paper

  • Static Cling

  • Heat Transfer Vinyl

  • Wall Papers and much more!

  • Fast printing speeds up to 1140 SqFt (105.9 SqM) per hour
  • High quality print resolution of up to 1,440 dpi
  • Two model widths: 54-inch (1361 mm) and 64-inch (1610 mm)
  • Choice of eco solvent or dye sublimation ink sets:
    • Eco solvent: 9 color options including White, Orange and
    • Dye sublimation: vibrant 6 color dye sub options
  • 2-liter bulk ink system standard for most colors
  • Nozzle Check Unit and Nozzle Recovery System
  • 3-way intelligent heater

Mimaki JV300-160 large format, high-speed inkjet printers go beyond extraordinary to deliver an awe-inspiring range of applications and versatility. Gamut-extending eco solvent inks enable you to accomplish large format prints such as anything from fine art reproduction, wall décor and stunning backlits, to vehicle wraps and outdoor displays. Or choose dye sublimation inks to create vibrant wearable textiles, unique home fabrics or soft signage. Using the Mimaki JV300-160 printer superb quality, color fidelity, throughput and flexibility you’ll go beyond the expected to capture more wallet share and deliver whatever your customers can imagine.

    Three "Plus" features

    1. ECO feature for green protection

    Adoption of environmental-friendly ink cartridge

    Changing the ink cartridge of SS21 ink to 600ml "Eco-cartridge" from 440ml cartridge can decrease the frequency of replacing ink.
    Increase in ink amount reduces time and effort to replace an ink cartridge with a new one, bringing about more efficient and economical results.

    The "Mimaki Eco-cartridge" is a reusable environmental-friendly designed ink cartridge which customers can replace a 600ml ink pack by themselves.

    600ml "Eco-cartridge"

    600ml "Eco-cartridge"

    As there has been increased interest in "environmental value" at industrial sites in recent years, we also promote more environmental-friendly product development under such a concept as "Mimaki Green Technology".
    In the signage market, UCJV300 uses our UV curable ink, released in 2017, which hardly generates VOCs (*) and are environmentally friendly. "JV300 Plus Series", which are equipped with environmental-friendly solvent ink, also adopt the environmental-friendly cartridge system that can decrease usage quantity of plastic materials, as our approach to less environmental impact.
    * VOC (Volatile Organic Compounds)

    2. Labor-saving process & Business efficiency

    ID Cut function which is provided with our products makes labor-saving process and efficient printing & cutting operations possible (Cooperation with CG-FXII Plus Series)

    A new function "ID Cut function" that enables continuous cutting operation to be performed automatically is adopted.
    The "ID Cut function" is the function that automatically scans printed-out register marks with ID, then reads and cuts cut data. While any operators scanned register marks and specified cut data for each cutting job in the past, use of the "ID Cut" function is now made possible to perform unmanned and continuous cutting operations, and operators can proceed with another operation simultaneously when the machine is performing the cutting operation.

    ID Cut function

    Support for Ethernet connection implements free and efficient work environment

    Ethernet connection

    To the conventional connection method to PC for RIP, Ethernet connection has newly been added.
    Unlike the conventional USB connection, connection via Ethernet can be established via network cable, and thus connection to a printer from any PC within network is now available.
    More free and efficient work environment can be put in place, by editing data using any PC in your office, then sending print data directly to a printer in your work operation room, for example.

    3. Newly added functions to realize higher image quality and stability

    "MAPS4", a new image quality control technology, to support Ethernet connection

    Generally, swath boundaries are straight lines. Therefore, a slight misalignment between boundaries causes banding or uneven color printing. MAPS4 (Mimaki Advanced Pass System 4) reduces banding and uneven color printing with blurred boundaries similar to gradation printing.


    Banding and uneven color printing are reduced by scattering swath boundaries. Beautiful print image is obtained.


    Bandings appear on swath boundaries. Print quality is remarkably degraded because banding is recognizable on each boundary.

    Adoption of newly designed winding mechanism
    - "End-face guide" for maximum loadable media in weight (45kg) comes equipped with as standard -

    Through renewal of the older winding mechanism, stability of media conveyance has been improved, and thus the maximum loadable media weight has changed from 40kg to 45kg.
    Also, it is provided with such a function as standard that prevents edge-surface meandering when any media are wound up, realizing stable and high-quality winding.

    Mimaki's original and patented technology "3-way intelligent heater"

    When the temperature of the media is not optimized, the perfect shape and size of droplets are not appropriately adhered onto the media.
    While temperature is controlled with Mimaki's original technology, heat is applied to media, and ink droplets are fixed in position with excellent color development and high-quality image being maintained. It achieves both stable color development and easy handling after output.

    Mimaki's original and patented technology "3-way intelligent heater"

    • Pre-heater: Heats media to optimum temperature before printing
    • Print heater: Dries ink droplets placed on media prior to ink bleeding, improving color development
    • Post-heater: Accelerates ink drying, realizing a stable winding
    • Top blower: Provides air blow to support ink drying

    Orange and light black inks ensure faithful color representation

    Orange ink

    Use of orange ink / No orange ink used

    By using the SS21 orange ink as a process color, 94.8% of the PANTONE color chart is covered with approximate colors. Thanks to a wider gamut with the orange ink, food freshness can be simulated, and corporate colors can be faithfully represented.

    Light black ink

    SS21 light black ink and superior gray-balance control produce accurate grayscale printing without unexpected color shifts. Smooth and non-grainy skin tones and grayscale gradation are delivered.

    Comparison images with and without light black ink.


    • Printhead - On-demand piezo head (2 staggered printheads)
    • Print resolution - 360dpi, 540dpi, 720dpi, 1,080dpi, and 1,440dpi
    • Maximum print width - 1,610mm (63.3")
    • Maximum media width - 1,620mm (63.7")
    • Ink Type/Color
      • Eco-solvent ink
        • SS21(C,M,Y,K,Lc,Lm,Lk,Or,W,Si)
        • BS3(C,M,Y,K) *Only available in specific countries
        • BS4(C,M,Y,K) *Only available in specific countries
        • ES3(C,M,Y,K,Lc,Lm,W)
      • Sublimation ink
        • Sb54(Bl,M,Y,K,Lbl,Lm)
    • Ink Package size
      (Optional Mimaki bulk ink system 3 (MBIS3) is required for using 2L Ink pack.)
      • SS21: 440ml Ink cartridge / 600ml Ink pack / 2L Ink pack
        (* W and Si are provided in 220ml ink cartridges only)
        BS3, BS4: 600ml Ink pack / 2L Ink pack
      • ES3: 440ml Ink cartridge
        (* W is provided in 220ml ink cartridge only)
      • Sb54: 440ml Ink cartridge / 2L Ink pack
    • Ink Circulation System - MCT (Mimaki Circulation Technology)
      • ( MCT works only with white and silver inks.)
    • Media thickness - 1.0 mm or less
    • Rolled media weight - 45kg (99 lb) or less
    • Certifications
      • VCCI class A, FCC class A, ETL IEC 62368-1
      • CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
      • CB, REACH, Energy Star, RCM, EAC
    • Interface - USB 2.0 / Ethernet 1000BASE-T
    • Power supply - Single-phase (AC 100–120V / AC 220–240V) × 2 50/60Hz ±1Hz
    • Power consumption - 11,440W×2 or less (at AC 100V system), 1,920W×2 or less (at AC 200V system)
    • Operational environment
      • Temperature: 20–30 °C (68–86 °F)
      • Humidity: 35–65% Rh (Non-condensing)
    • Dimensions (W×D×H) - 2,775mm×700mm×1,392mm (109"×28"×55")
    • Weight - 200kg (441 lb)
