$369/Month Mimaki CJV300-160 Plus 64" Inch Eco-Solvent Print/Cut Vinyl Plotter Cutter Printer With Mimaki Advanced Pass System 4 (MAPS4)

Lease To Own For Only:
Price
$369
Per Month
Please Contact Us To Order 647-998-6637 or email: info (at) absolutetoner.com

Product Information

Lease For Only $369/Month

*With a $450 Lease Deposit*

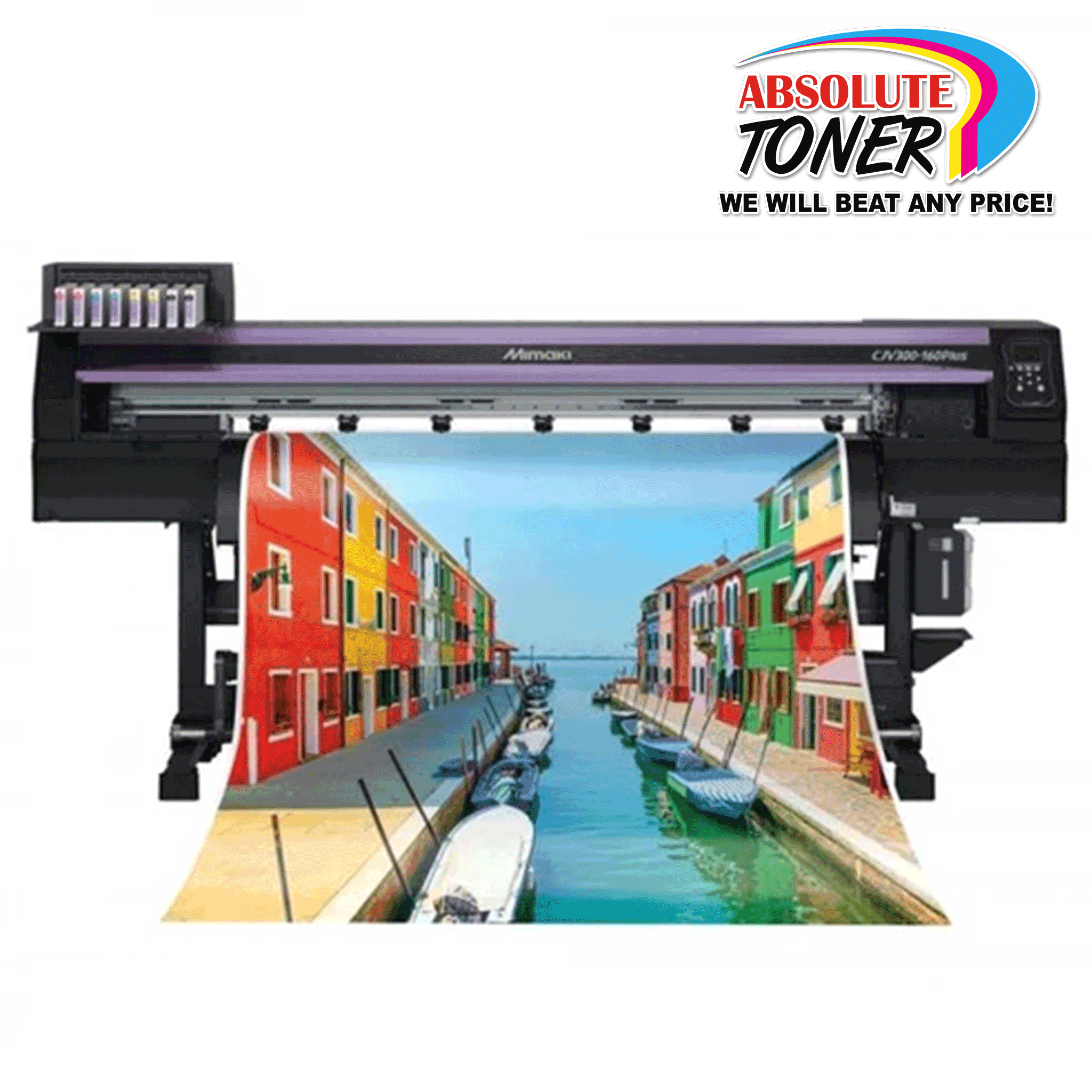

Mimaki CJV300-160 Plus 64" Inch Eco-Solvent Print/Cut Vinyl Plotter Cutter Printer With Mimaki Advanced Pass System 4 (MAPS4)

  • Fast printing speeds up to 1140 Sq. Ft (105.9 Sq. m) per hour
  • High-quality print resolution of up to 1,440 dpi
  • Choice of eco solvent or dye sublimation ink sets
  • Nozzle Check Unit and Nozzle Recovery System
  • 3-way intelligent heater
  • Reusable and refillable 600ml ink eco cartridge
  • ID Cut function enables efficient cutting operation
  • Ethernet connection
  • Mimaki Advanced Pass System delivers smooth solids and gradients

The CJV300-160 Plus delivers an amazing array of capabilities providing endless high-speed, cut and print application opportunities. Advanced printing technologies allow you to reach more vibrant reds and oranges with eco-solvent inks including; silver, white, orange, and light black. And, precision cutting capability enables delivery of complete campaigns that include signs, posters, banners, labels, decals, and even t-shirt transfers. Also available with dye-sublimation inks.

    Three "Plus" features

    1. Labor-saving process & Business efficiency

    • ID Cut function which is provided with our products makes labour-saving processes and efficient printing & cutting operations possible.

    A new "ID Cut function" function that enables continuous cutting operations to be performed automatically is adopted.

    The "ID Cut function" is the function that automatically scans printed-out register marks with ID, then reads and cuts cut data. While any operators scanned register marks and specified cut data for each cutting job in the past, the use of the "ID Cut" function is now made possible to perform unmanned and continuous cutting operations, and operators can proceed with another operation simultaneously when the machine is performing the cutting operation.


    ID Cut function

    • Support for Ethernet connection implements a free and efficient work environment.

    Ethernet connection

    To the conventional connection method to PC for RIP, an Ethernet connection has newly been added.

    Unlike the conventional USB connection, connection via Ethernet can be established via network cable, and thus the connection to a printer from any PC within the network is now available.

    A more free and efficient work environment can be put in place by editing data using any PC in your office, then sending print data directly to a printer in your work operation room, for example.


    2. ECO feature for green protection


    • Adoption of environmental-friendly ink cartridge

    Changing the ink cartridge of SS21 ink to 600ml "Eco-cartridge" from 440ml cartridge can decrease the frequency of replacing ink.

    An increase in ink amount reduces the time and effort to replace an ink cartridge with a new one, bringing about more efficient and economical results.

    The "Mimaki Eco-cartridge" is a reusable environmental-friendly designed ink cartridge which customers can replace a 600ml ink pack by themselves.


    600ml "Eco-cartridge"

    600ml "Eco-cartridge"


    Mimaki Green Technology

    As there has been increased interest in "environmental value" at industrial sites in recent years, we also promote more environmental-friendly product development under such a concept as "Mimaki Green Technology."

    In the signage market, UCJV300 uses our UV-curable ink, released in 2017, which hardly generates VOCs (*) and is environmentally friendly. "CJV300 Plus Series", which is equipped with environmental-friendly solvent ink, also adopt an environmental-friendly cartridge system that can decrease the usage quantity of plastic materials, as our approach to less environmental impact.
    * VOC (Volatile Organic Compounds)


    3. Newly added functions to realize higher image quality and stability


    • "MAPS4", a new image quality control technology, supports an Ethernet connection

    Generally, swath boundaries are straight lines. Therefore, a slight misalignment between boundaries causes banding or uneven colour printing. MAPS4 (Mimaki Advanced Pass System 4) reduces banding and uneven colour printing with blurred boundaries similar to gradation printing.


    MAPS ON

    MAPS ON
    Banding and uneven colour printing are reduced by scattering swath boundaries. A beautiful print image is obtained.




    MAPS OFF

    MAPS OFF
    Bandings appear on swath boundaries. Print quality is remarkably degraded because banding is recognizable on each boundary.


    • Adoption of a newly designed winding mechanism
      • "End-face guide" for maximum loadable media in weight (45kg) comes equipped.

    Through the renewal of the older winding mechanism, the stability of media conveyance has been improved, and thus the maximum loadable media weight has changed from 40kg to 45kg.

    Also, it is provided with such a function as a standard that prevents edge-surface meandering when any media are wound up, realizing stable and high-quality winding.

    Other Features

    Mimaki's original and patented technology "3-way intelligent heater"


    When the temperature of the media is not optimized, the perfect shape and size of droplets are not appropriately adhered to the media.

    While temperature is controlled with Mimaki's original technology, heat is applied to media, and ink droplets are fixed in position with excellent colour development and a high-quality image being maintained. It achieves both stable colour development and easy handling after output.

    Patent Number
    Japan: 4889059  USA: 8,444,262  China: ZL 200910222559.8


    Mimaki's original and patented technology "3-way intelligent heater"

    • Pre-heater: Heats media to optimum temperature before printing
    • Print heater: Dries ink droplets placed on media prior to ink bleeding, improving colour development
    • Post-heater: Accelerates ink drying, realizing a stable winding
    • Top blower: Provides air blow to support ink drying



    Silver ink creates high-value-added print products


    “Shiny silver ink” exceeds expectations


    “Shiny silver ink” exceeds expectations

    SS21 silver ink’s brightness is 1.67 times greater than that of conventional silver inks.(*)
    Exceptional brightness means high value-added printing and mirror effect results that exceed expectations.
    * SS21 silver ink comparison with ES3 silver ink measured at Mimaki HQ.


    Orange and light black inks ensure faithful colour representation


    Orange ink


    Use of orange ink / No orange ink used

    By using the SS21 orange ink as a process colour, 94.8% of the PANTONE colour chart is covered with approximate colours. Thanks to a wider gamut with the orange ink, food freshness can be simulated, and corporate colours can be faithfully represented.


    Light black ink


    SS21 light black ink and superior gray-balance control produce accurate grayscale printing without unexpected colour shifts. Smooth and non-grainy skin tones and grayscale gradation are delivered.


    Comparison images with and without light black ink.

    Versatile print and cut functions


    Labels, Stickers

    This single unit of CJV300 Plus alone enables labels, stickers, car lapping films or the like to be created.


    Continuous register mark detection


    The CJV300 Plus automatically detects all register marks set by the RasterLink6Plus on the media and precisely cuts contour lines using simultaneous automatic calibration.

    Over-cut and corner-cut functions

    The over-cut function ensures sharply cut edges with no residues by making a cross cut at the start and end positions of the contour cutting. The corner-cut function ensures sharply cut edges by making cross-cuts at each corner.

    Segment correct functions

    This function detects intermediate register marks and enables four-point corrections for each segment to ensure accurate contour cutting over longer-length prints, even if the image is distorted.

    Cut-and-print function

    This function prevents common problems, such as film separation and faulty cut results, by cutting the media before printing.

    Specifications

    • Printhead - On-demand piezo head (2 staggered printheads)
    • Print resolution - 360 dpi, 540 dpi, 720 dpi, 1,080 dpi, and 1,440 dpi
    • Maximum print width - 1,610mm (63.3")
    • Maximum media width - 1,620mm (63.7")
    • Ink Type/Color
      • Eco-solvent ink
        • SS21(C,M,Y,K,Lc,Lm,Lk,Or,W,Si)
        • BS3(C,M,Y,K) *Only available in specific countries
        • BS4(C,M,Y,K) *Only available in specific countries
        • ES3(C,M,Y,K,Lc,Lm,W)
      • Sublimation ink
        • Sb54(Bl,M,Y,K,Lbl,Lm)
    • Ink Package size
      (Optional Mimaki bulk ink system 3 (MBIS3) is required for using 2L Ink pack.)
      • SS21: 440ml Ink cartridge / 600ml Ink pack / 2L Ink pack
        (* W and Si are provided in 220ml ink cartridges only)
        BS3, BS4: 600ml Ink pack / 2L Ink pack
      • ES3: 440ml Ink cartridge
        (* W is provided in 220ml ink cartridge only)
      • Sb54: 440ml Ink cartridge / 2L Ink pack
    • Ink Circulation System - MCT (Mimaki Circulation Technology)
      • ( MCT works only with white and silver inks.)
    • Media thickness - 1.0 mm or less
    • Rolled media weight - 45kg (99 lb) or less
    • Certifications
      • VCCI class A, FCC class A, ETL IEC 62368-1
      • CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
      • CB, REACH, Energy Star, RCM, EAC
    • Interface - USB 2.0 / Ethernet 1000BASE-T
    • Power supply - Single-phase (AC 100–120V / AC 220–240V) × 2 50/60Hz ±1Hz
    • Power consumption - 100V: 2.88 kVA (1.44 kVA × 2) or less / 200V: 3.84 kVA (1.92 kVA × 2) or less
    • Operational environment
      • Temperature: 20–30 °C (68–86 °F)
      • Humidity: 35–65% Rh (Non-condensing)
    • Dimensions (W×D×H) - 2,775mm×700mm×1,392mm (109"×28"×55")
    • Weight - 178kg (392 lb)
