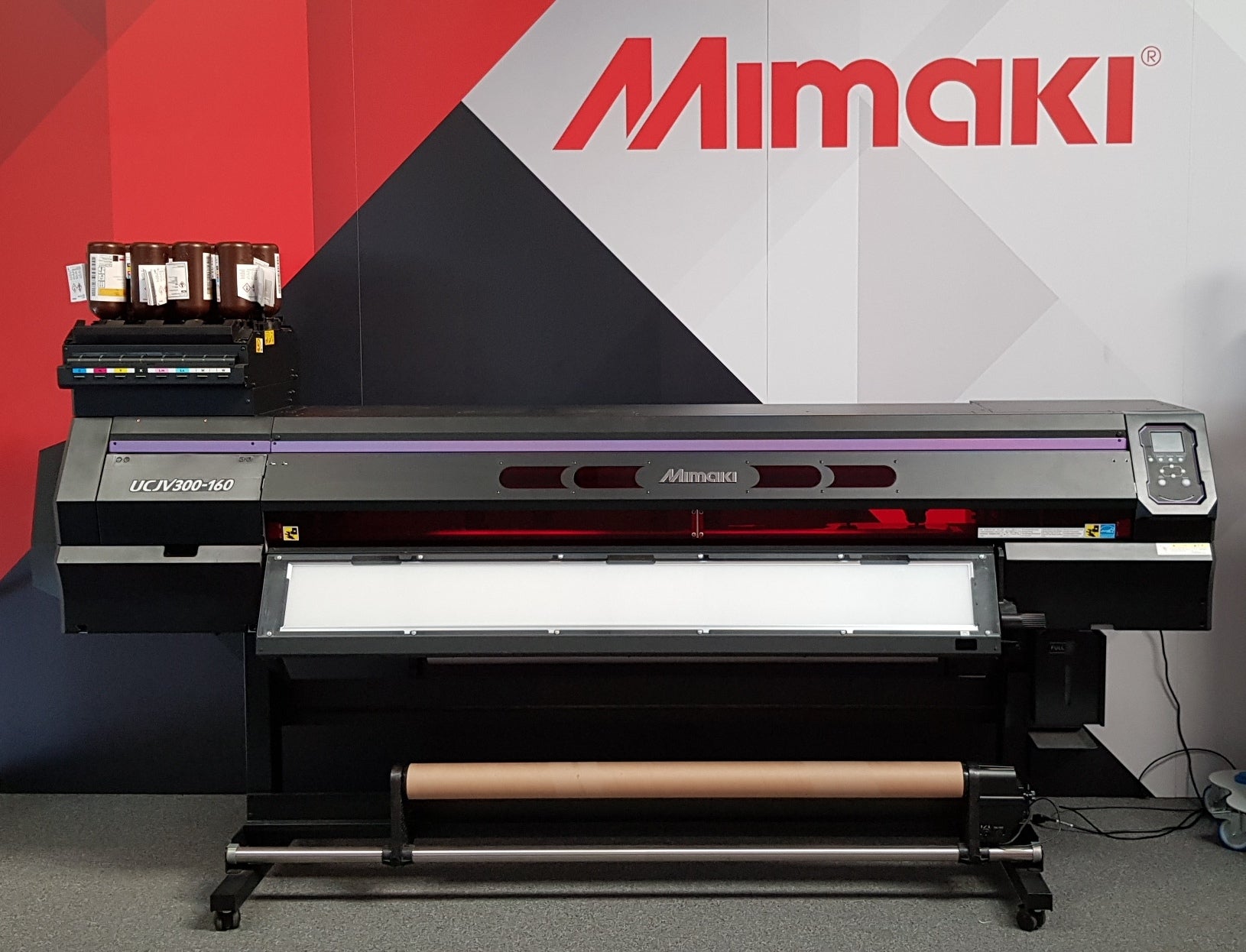

Mimaki UCJV300-160 64" Inch LED Print/Cut Cutter Printer With ID Cut Function

• Wide format, UV-LED cut-and-print devices
• 4 or 7 color configuration
• Four-layer printing to build layered, transformative graphics for backlit applications
• Integrated cutting capabilities
• Instant-dry for instant use
• 1-liter ink bottles

The Mimaki UCJV300-160 cut-and-print devices provide more than a simple print and cut experience: it goes beyond extraordinary to deliver an awe-inspiring range of applications and versatility. Create stunning transitional backlit panels that ‘change’ color schemes with the light source. Print and cut – or cut first then print – labels, decals, window clings, vehicle markings, etc., all on one unit. Flexible UV cure inks expand the possibilities for you to offer unique capabilities to keep you competitive.

Features

1. "Multilayer print" for a new advertisement expression

1) 4 layer print [Day & Night Printing]

The combined solutions of the 4 layers print and the inside lighting of graphic will present the amazing image-change named [Day & Night Printing] when the printed media is lighted from the back.
It is a particular sign method with an appeared image switching between daytime and nighttime, double face print of front and reverse image by multi layers print. They will contribute to receive a high value-added job to your business, because such advantageous methods have been difficult.

[Day & Night Printing] : 4 layers print configuration image

[Day & Night Printing] : 4 layers Sign applying image

---

[RasterLink Tools] screen (image)

2) 5 layer print [Front & Back Printing]

Different printed design can appear on the "Front and Back" by one time print.
By printing on a transparent film with five layers, the [Front&Back Printing] of different design on the two sides is realized. A different image of indoor and outdoor of one window sign, etc. , it is a new proposal of more attractive sign with higher design property.

2. On-demand print utilizing UV characteristics

1) Quick access to next processing and sign applying due to UV ink property

With the UV ink property of immediate curing upon UV light irradiation, no drying time is required. The post-processing and sign applying are possible instantly, improving the productivity and receiving an order of short delivery time.

2) Wider application range with UV print

-1- Vibrant print with eye-catching

According to the higher color density of UV than solvent, UV print can create a more vivid color expression. The color brightness of UV is the key to add value to created signs.

Comparison of UV and solvent printer (image)

UCJV300/150 can create more vivid expression with a higher color density. High color density print is not easy by solvent as the property of taking time of drying for ink bleeding.

-2- Possible to print wider range of materials for broadening applications

By applying UV ink, not only PVC and tarpaulin, also, other materials difficult to solvent and latex such as fabric, paper and PET film are printable. UV can provide a diverse printing application.

Banners and flags (fabric)

---

UV ink is good to print fabric as no bleeding because of the quick ink curing upon UV irradiation.

Shoji (sliding paper door---Japanese paper)

---

Paper print such as Japanese paper is also available. Shoji, fan and poster in paper should be fine to print.

Letter printing to wall paper (patterned wall paper)

---

Utilizing white ink enhances the good opacity to print letters and illustration on patterned or deep colored wall papers.

Swing P.O.P. (PET film)

---

Available to print PET film, too. Making both promotional goods and sign boards is an attractive proposal to your clients.

Stickers (Colored media)

---

White ink is effective to print on color media.

3. Newly developed environmentally friendly UV ink, [LUS-170] and [LUS-175]

Newly developed ink, [LUS-170/175] adaptive to environment, generates hardly VOC and can cure without the irradiation of short wavelength UV. [LUS-170/175] yellow ink is eco-friendly and nickel free though general yellow inks are compounding it. [LUS-170/175] gained the [GREENGUARD Gold] certification, which is based on most strict global standard of chemical substance diffusion.
And its adaption of the criteria is approved by the 3rd party of certification authority.
[GREENGUARD Gold] certification assures the product property conforms to schools and medical facilities.
* [LUS-175] is only available in specific countries

Clear ink added! New!

---

---

---

4. Flexible UV Ink [LUS-200] New!

The LUS-200 ink has 200% stretchability after curing.
The ink film retains the print quality, and will not crack even when printed materials are bent or stretched during post-print processes.
[LUS-200] also gained the [GREENGUARD Gold] certification.

5. Productive cutting functions. A new function of [ID Cut] will improve the work efficiency

1) Print & Cut is available by one unit printer

Having high function and high performance cutting, [UCJV300/150-160] is possible to make labels and stickers by one unit.
Several productive cutting functions are prepared to [UCJV300/150-160], which are selectable to suit your job:

• [Continuous registration mark detection] for consecutive cutting,
• [Over Cut / Corner Cut] for cutting sharply on preventing an occurrence of uncut,
• [Intermediate Cut] for a correct cut of long outline by multiple corrections of position with intermediate registration marks,
• [Register mark of Zero margin] for saving media losses to eliminate the margin between register marks.

And more.

2) A newly equipped function [ID Cut]: Quicker and easier operation

[ID Cut] is a function to print together crop mark and ID for recognition of cutting details and media rotation of job and then cut data of every print data is readable to start the cut automatically.
It saves the labor of confirmation of media direction and no need to have every cut order by operator on the RIP, even in a case of multiple types of small lot cut. It reduces media loss by data transmission error.

ID Cut function (image)

Specifications

• Printhead - On-demand piezo head
• Print resolution - 300dpi, 600dpi, 900dpi, 1200dpi
• Droplet size - Min. 7pl, Max. 28pl
• Head gap - 3 degrees adjustment (2.0/2.5/3.0 mm) by manual
• Maximum print width - 1,610 mm (63.4 in)
• Maximum media width - 1,620mm (63.8")
• Ink Type/Color
• LED-UV ink: LUS-170 (C, M, Y, K, Lc, Lm, W, Cl)
• LED-UV ink: LUS-175 (C, M, Y, K, Lc, Lm, W, Cl)
• LED-UV ink: LUS-200 (C, M, Y, K, W)
• Ink Capacity - 1L (Bottle supply)
• Media thickness - 1.0 mm or less
• Media roll outer diameter - 250 mm or less
• Media roll weight - 40 kg (88.2 lb) or less
• Cut speed - Max. 300 mm/s (420 mm/s in 45 degrees direction)
• Cut pressure - 10-450 gf
• Cutter Types - Eccentric cutter, Blade for small character, Blade for reflective sheet,
  Blade for fluorescent sheet, Blade for PVC with low-pressure

• Safety standard - VCCI Class A / FCC Class A / Compliant with UL 60950-1, ETL /CE Marking (EMC, Low voltage, Machinery directive) / RoHS / CB Report / REACH, ENERGY STAR® / RCM

• Interface - USB2.0 / Ethernet 1000 BASE-T
• Power supply - Single phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz)
• Power consumption - AC100V: 1.44kW / AC200V: 1.92kW
• Operational environment
• Temperature: 20-30 degC / 68-86 degF
• Humidity: 35-65% Rh (Non condensing)
• Dimensions (W×D×H) - 2,900 x 776 x 1,475 mm (114.2 x 30.6 x 58.1 in)
• Weight - 188 kg (414.5 lb)
