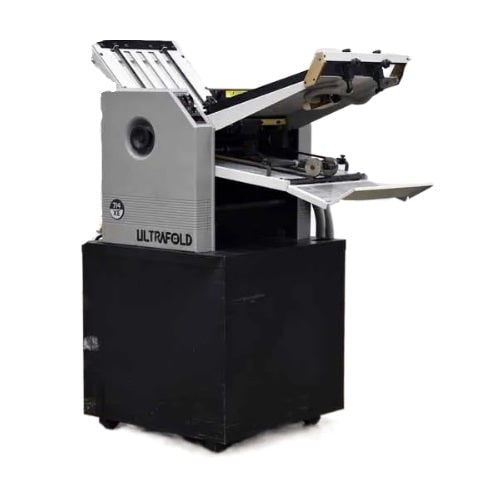

Baum 714XE UltraFold Air Feed Paper Folder With Heavy-duty 7/8" Shafts Designed for Easy Removal

Combines all the rugged reliability of the larger model Baum folders in a compact, convenient size.

The 714XE Friction has quality features including sealed ball bearings, improved electrics, scales on the stacker for proper wheel placement and more. Another convenience is feeding and delivery on the same end, saving space and motion. The 714XE can handle coated or uncoated paper sizes from 76 x 127 mm up to 355 x 508 mm, with an extra long feed table to accommodate the larger sheets. Rack-and-pinion side guides with bias adjustments improve handling out-of-square paper. Also, the positive, dual-locking paper guides help maintain positive sheet registration.

Ruggedly constructed, the 714XE - Friction features 6 mm thick tooling plate side frames and solid 19 mm tie bars.

Heavy-duty 22 mm shafts are designed for easy removal. All scoring, perforating and slitting accessories are easily attached. Sound covers included as standard.

Specifications

• Type folder - Friction feed
• Maximum sheet size parallel - 355 x 508mm
• Minimum sheet size -76 x 127mm
• Maximum size fold – #1 or #2 plate - 343mm
• Minimum size fold - 57mm
• Maximum paper weight - 48.8kg
• Fold roll diameter - 38mm
• Fold roll width - 358mm
• Fold roll material - Polyurethane
• Fold roll speed - Infinitely variable between 0 to 182,880mm/min or 182m/min
• Operating voltage - 110 VAC - 60 Hz
• Power consumption - 200 watts
• Dimensions & Weights
• Overall machine dimensions

• Height 660mm
• Length 860mm
• Width 600mm
• Weight parallel (net) - 120kg
• Weight parallel (crated) - 136kg
• Crate size - 686 x 737 x 1422mm
