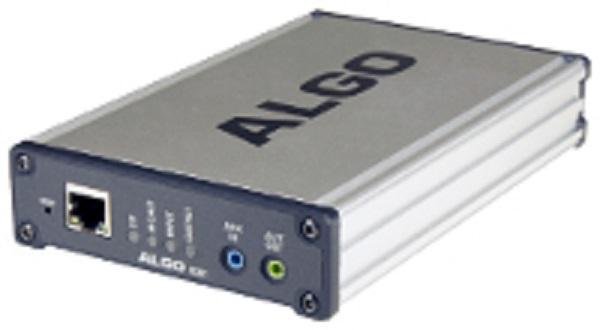

Algo 8301 IP Voice IP Paging Adapter for Traditional Analog Amplifiers

Price
$459.75
Please Contact Us To Order 905-326-2886 or email: info (at) absolutetoner.com

Product Information

Algo 8301 IP Voice IP Paging Adapter for Traditional Analog Amplifiers
Specifications:
Power Input: 48 V PoE IEEE 802.3af
Class 0 (Max 3.84W - Idle nominal 2.0W)
SIP: Dual extensions for Page or Alerting
Multicast: Receive or transmit Codec
Support: G.711 A-law, G.711 u-law, G.722, Polycom Group Page, OGG Vorbis (other codec support available on request).
Processor: Linux OS ARM Cortex-A8 32-Bit RISC Processor AUX Input: 3.5mm jack for analog music input AUX Output: 3.5mm jack for headset or PC speakers
Line Input: Female mini-XLR 10 kOhm balanced maximum level +4 dBu.
Transformer isolated internally.
Line Output: Low impedance balanced output. Line level -10 dBm / 0 dBm / +4 dBu.
Transformer isolated internally.
Male mini-XLR connector and pluggable terminal block.
Frequency response 100-7000 Hz +/- 3dB.
Audio Memory: 1 GByte
WAV Files: Customizable. Includes chime, gong, bell, warble, barking dogs.
Speech Processing: ALC, filtering, compression
Audio Delay: Programmable 1-1000 ms synchronization delay
Page Mode: Live or cache and release.
Page Zone: Based on received multicast IP Address or keypad events for 8301 configured as page SIP extension. Relay Output: Normally open or normally closed.
Max rating 30 V 50 mA.
Relay Input: Normally open or normally closed dry contact supervision.
Algo 1202 Call Button,
Algo 1203 Call Switch, EOL resistor termination.
Configuration: Web interface (HTTP or HTTPS) or autoprovisioning server.
Provisioning: TFTP, FTP, HTTP
Supervision: SNMP
NAT: STUN, CRLF Keep Alive
Environmental: +32 to +122 deg F (0 to +50 deg C);

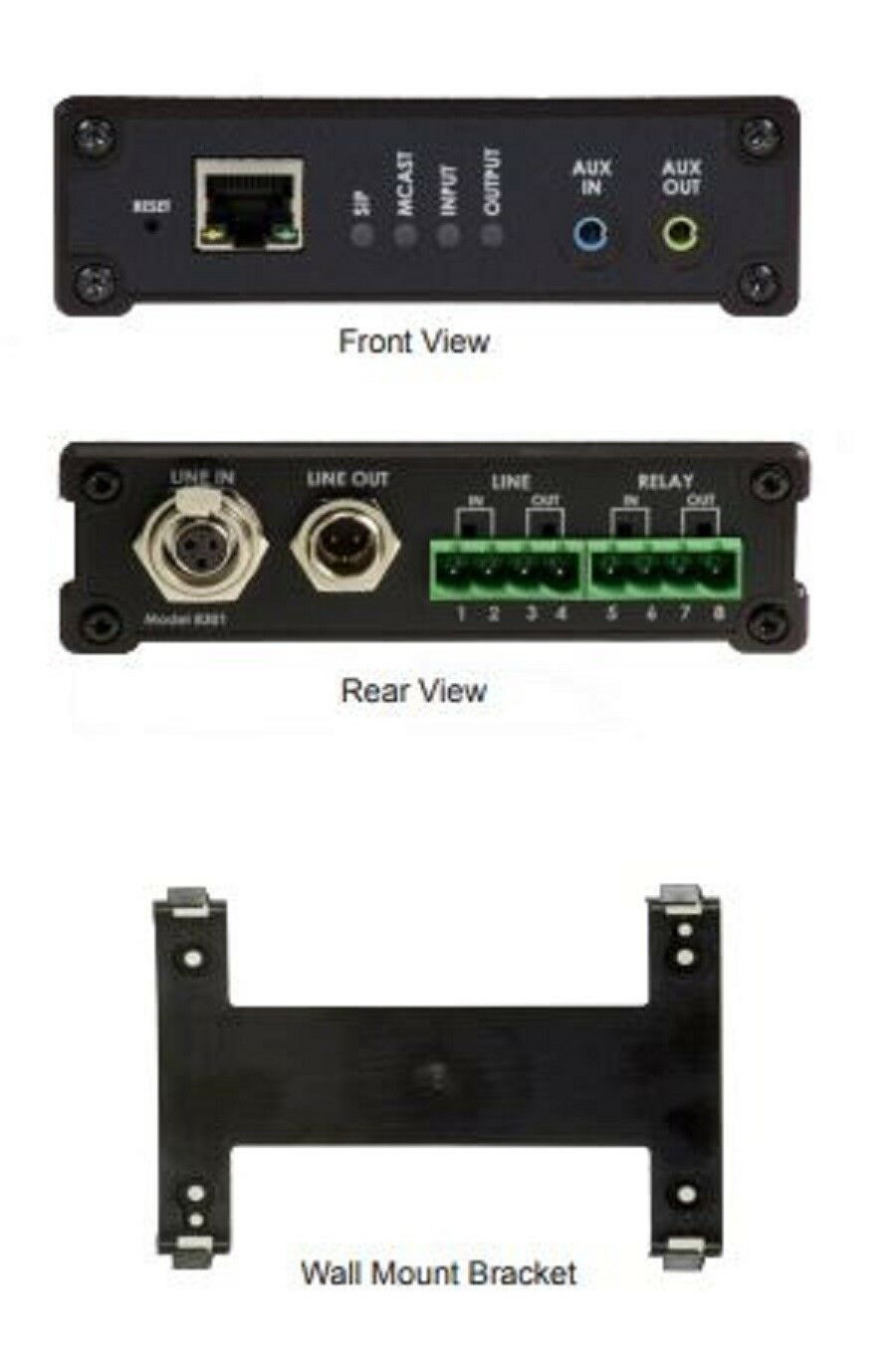

Suitable for dry indoor environments only. Dimensions: 6.5'' x 4.3'' x 1.3'' (16.5 cm x 10.9 cm x 3.3 cm) Mounting: Wall mountable or tabletop Weight: 2.2 lb (1.0 kg)
