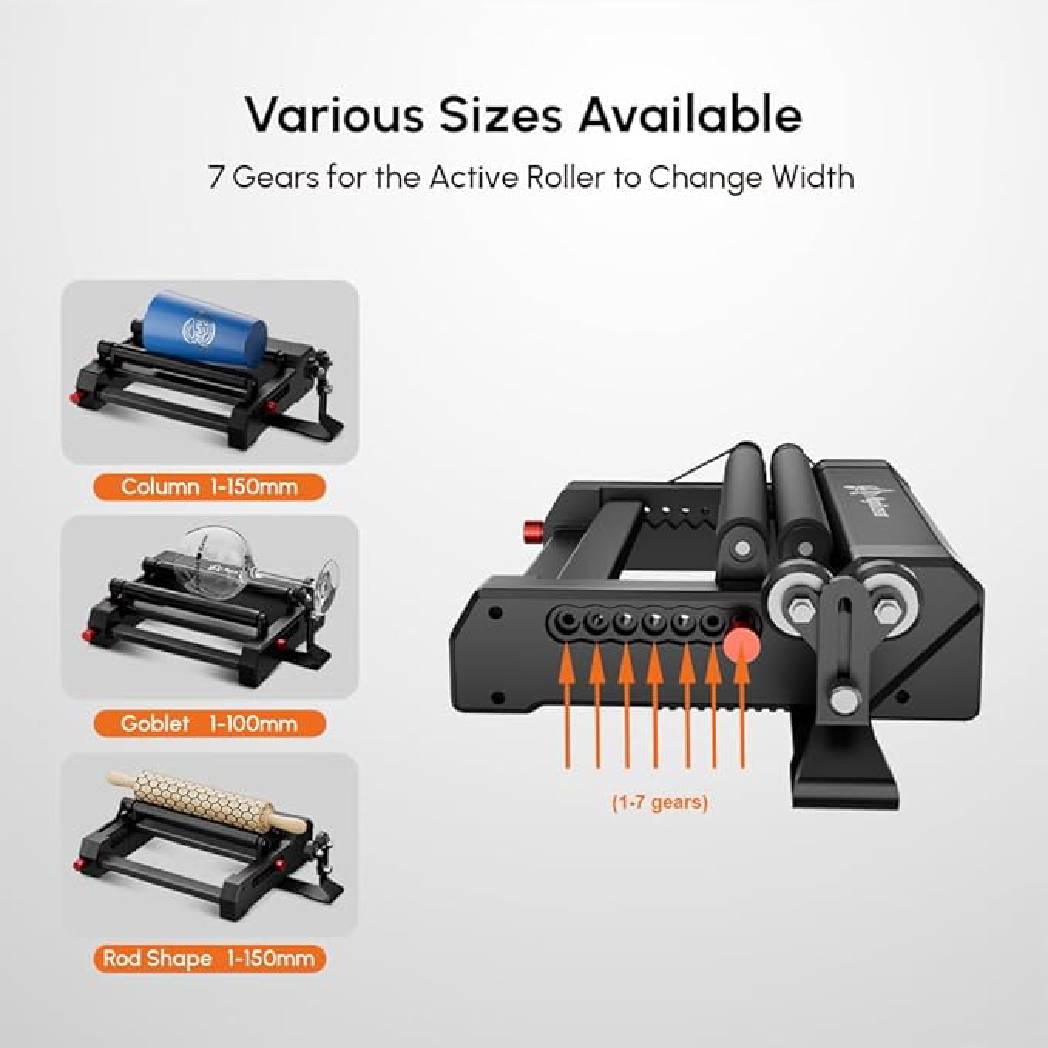

7 Gears for the Active Roller to Change Width

Keep the irregular and extra-long item horizontal and stable on the roller

It can be engraved to a length of up to 135 centimeters


| Product type | Y-axis rotating roller |
| Product size (mm) | 265mm*195mm*70mm (including bracket) |
| Product weight | 1.15kg (including bracket) |

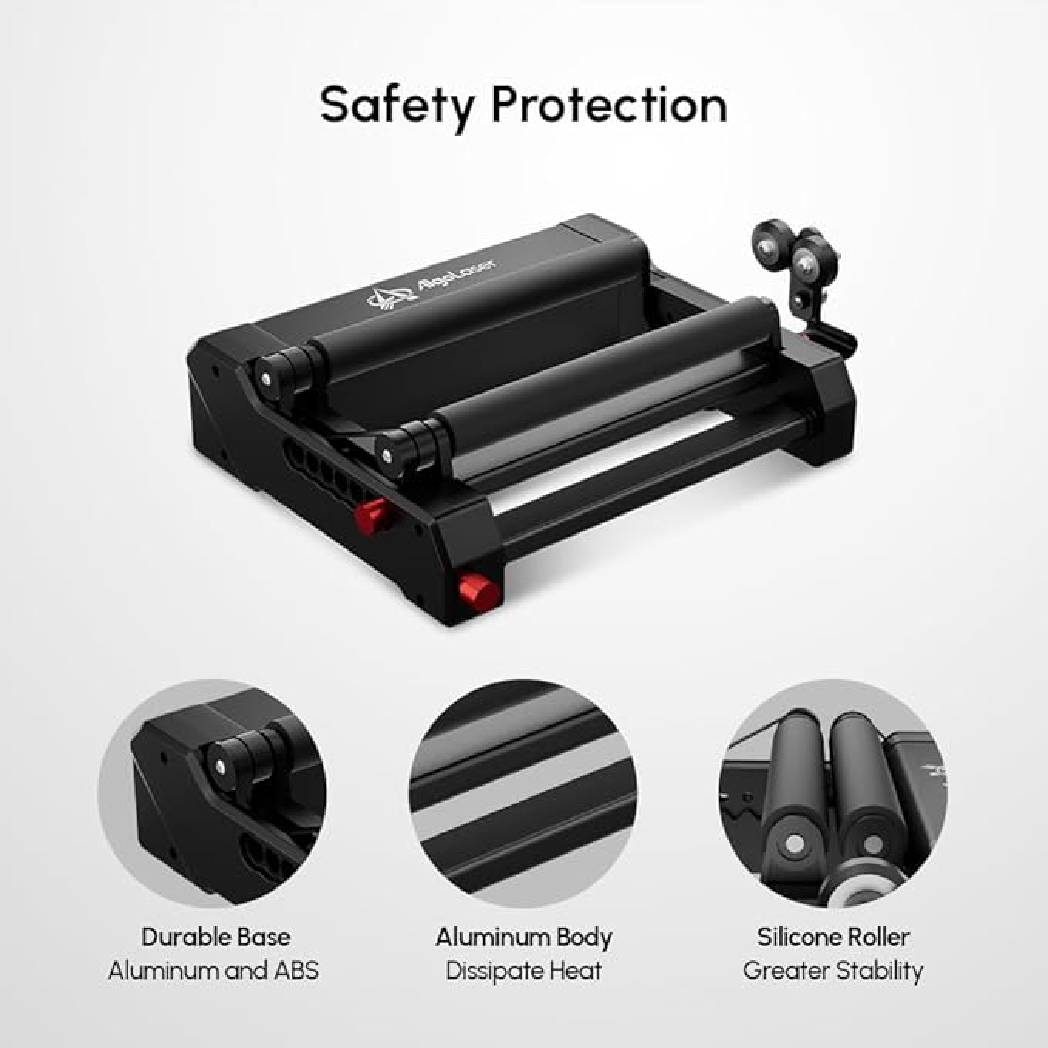

| Frame material | plastic (ABS + fiber) + aluminum + stainless steel + silicone rubber |
| Drive mode | single motor drive |

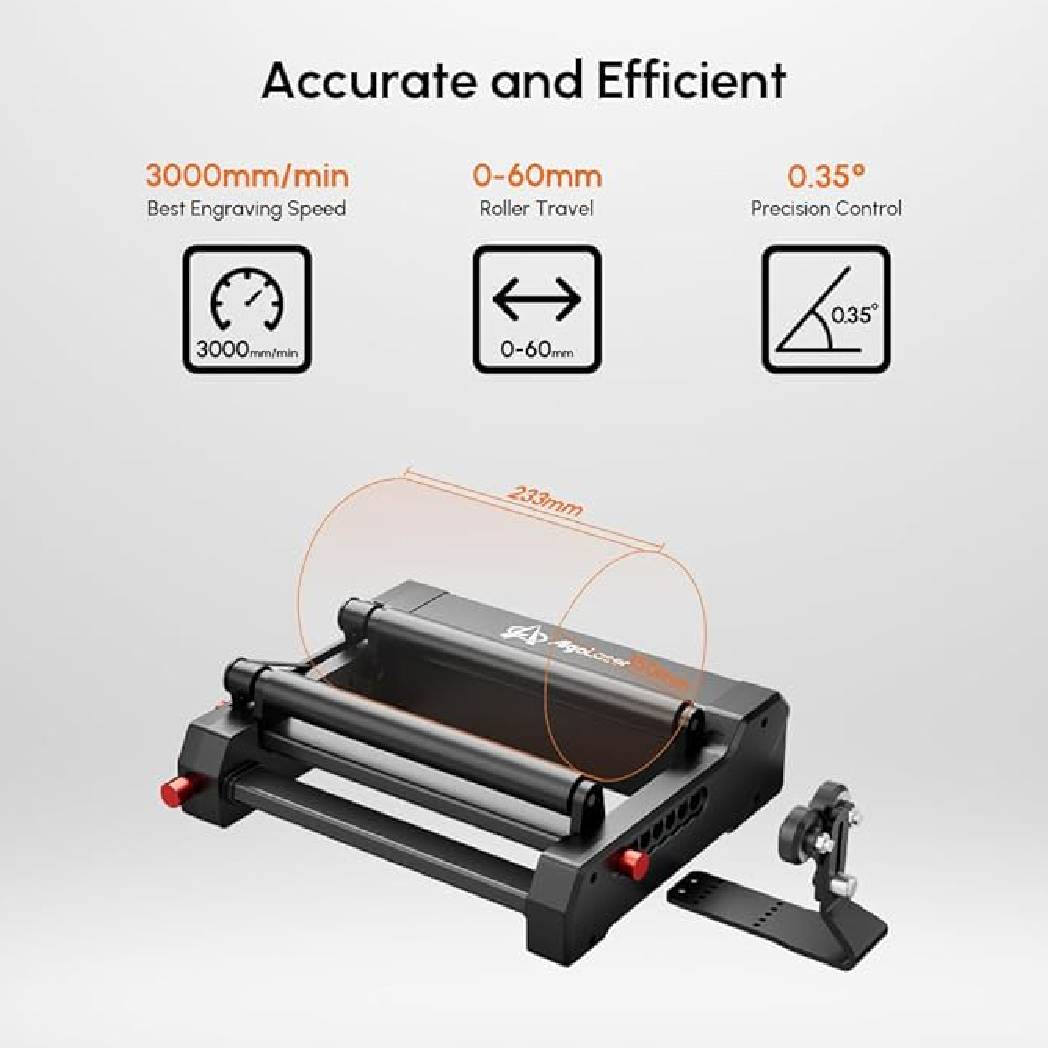

| Roller movement stroke (mm) | 0-60mm |
| Optimal engraving speed | 3000mm/min |
| Maximum diameter | Cylinder: 1-150mm/Goblet: 1-100mm/Rod: 1-150mm |
| Engraving length range | depends on the distance of the Y-shaped side bracket |
| Software support | AlgoLaser (APP), LightBurn, LaserGRBL |
