Brand New MBM VRCut Ready Triumph 5560LT 21-5/8" Programmable Hydraulic Paper Cutter With Air Tables Package Side tables (CU0440), Knife (AC0684), Sticks (AC0678) - CU0497V
VRCut Ready TRIUMPH™ 5560 LT Automatic Programmable Cutter

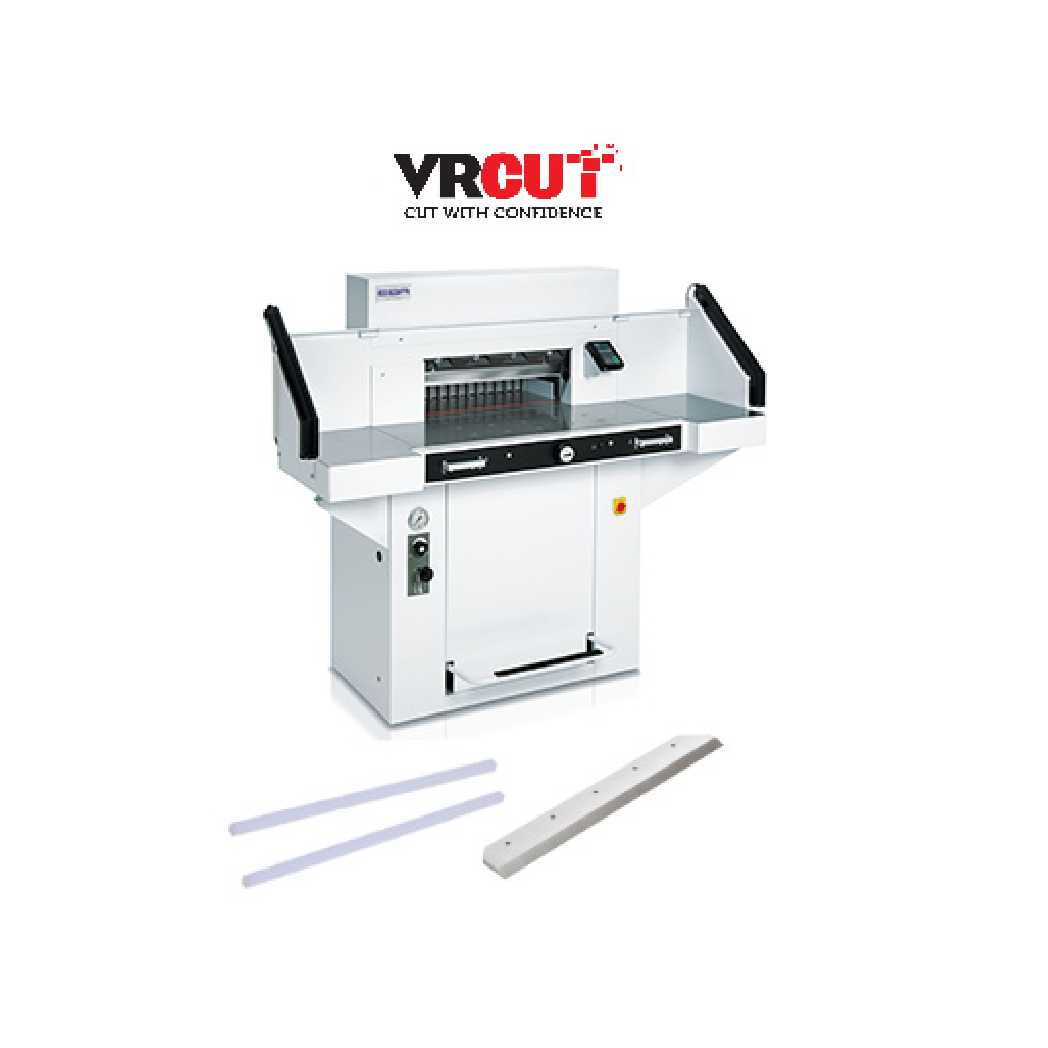

Comes with Full Package - Cutter, Side Tables, Knife, Sticks
Programmable paper cutter with hydraulic clamp, 21 5/8" cutting width, VRCut software, Front and Rear Air Tables ansd Cutting Knives, Cutting Sticks and Side Tables.
Package Includes
- A Cutter (CU0497V)
- Side Tables (CU0440)
- Cutting Knife (AC0684)
- Sticks (AC0678)
Programmable cutter with hydraulic blade and clamp drive, power back gauge, digital touchpad, and IR safety light beams on front table.

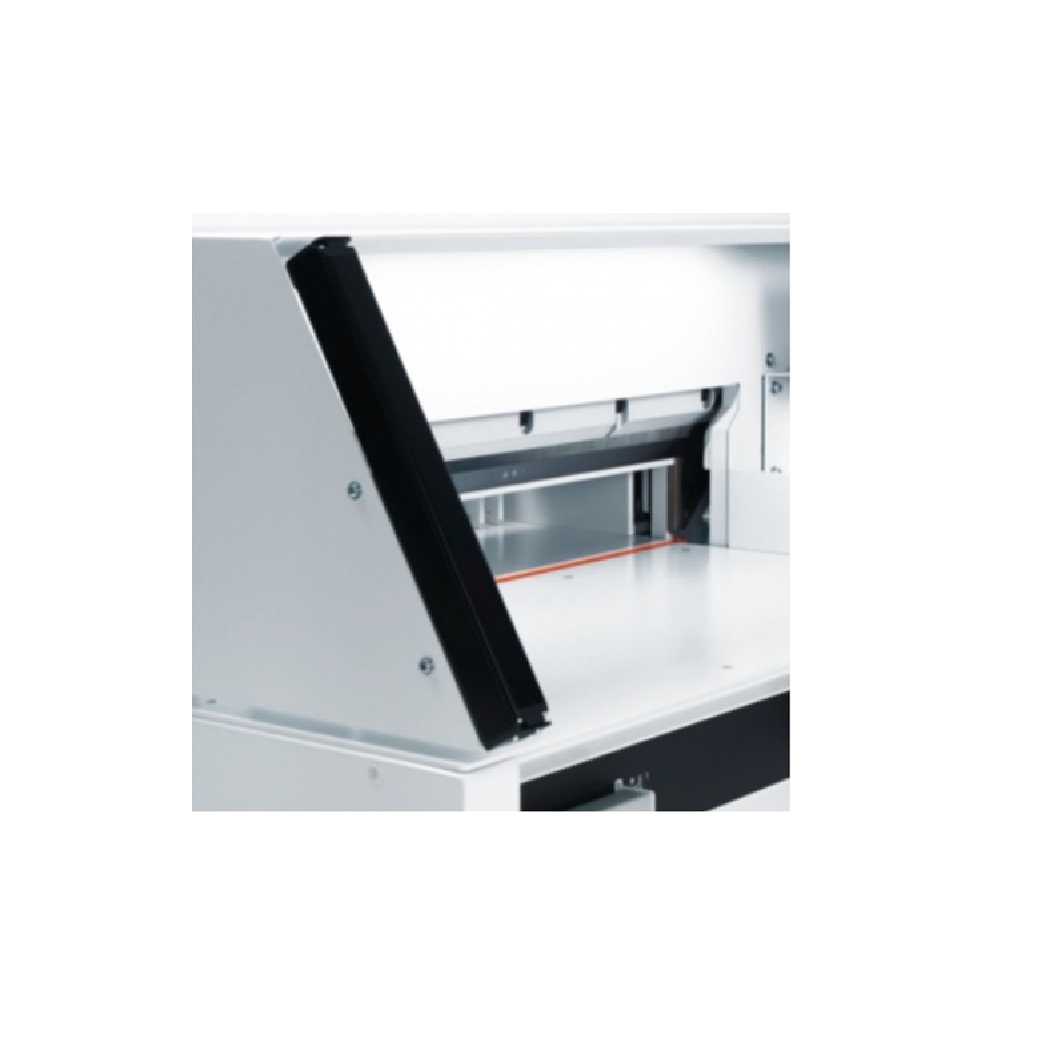

Comprehensive SCS™ safety package: patented EASY CUT electronic blade activation bars for true two-hand operation; IR light beam safety curtain on front table; safety cover on rear table; lockable main switch; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.
Hydraulic blade and clamp drive. Foot pedal for pre-clamping. Electric back gauge drive with touchpad for easy programming. Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch. Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step). Pre-programmed for standard paper sizes. Memory key for repeat cuts. Automatic SET function for reference measurement and EJECT function for pushing out paper. Self-diagnostic system with error indication on display. Electronic back gauge control with variable speed control for manual back gauge setting. Clamp pressure is fully adjustable between 1,900 and 3,800 psi. False clamp plate. Bright, LED optical cutting line. Stainless steel work surface. High quality, German HSS blade. Precision swing cut blade movement. Aluminum blade carrier and clamp bar. Adjustable blade guides. All-metal construction. Mounted on casters. Includes easy-access tool holder and paper blocking tool. Optional side tables increase work surface. UL and C UL approved.
TRIUMPH 5560LT Features:
- Cutting Width: 21-5/8"
- Cutting Height: 3-3/4 (3-5/8" with false clamp)
- Narrow Cut: 1-1/4" (2-3/8" with false clamp)
- Length behind blade: 22-7/16"
Product Details

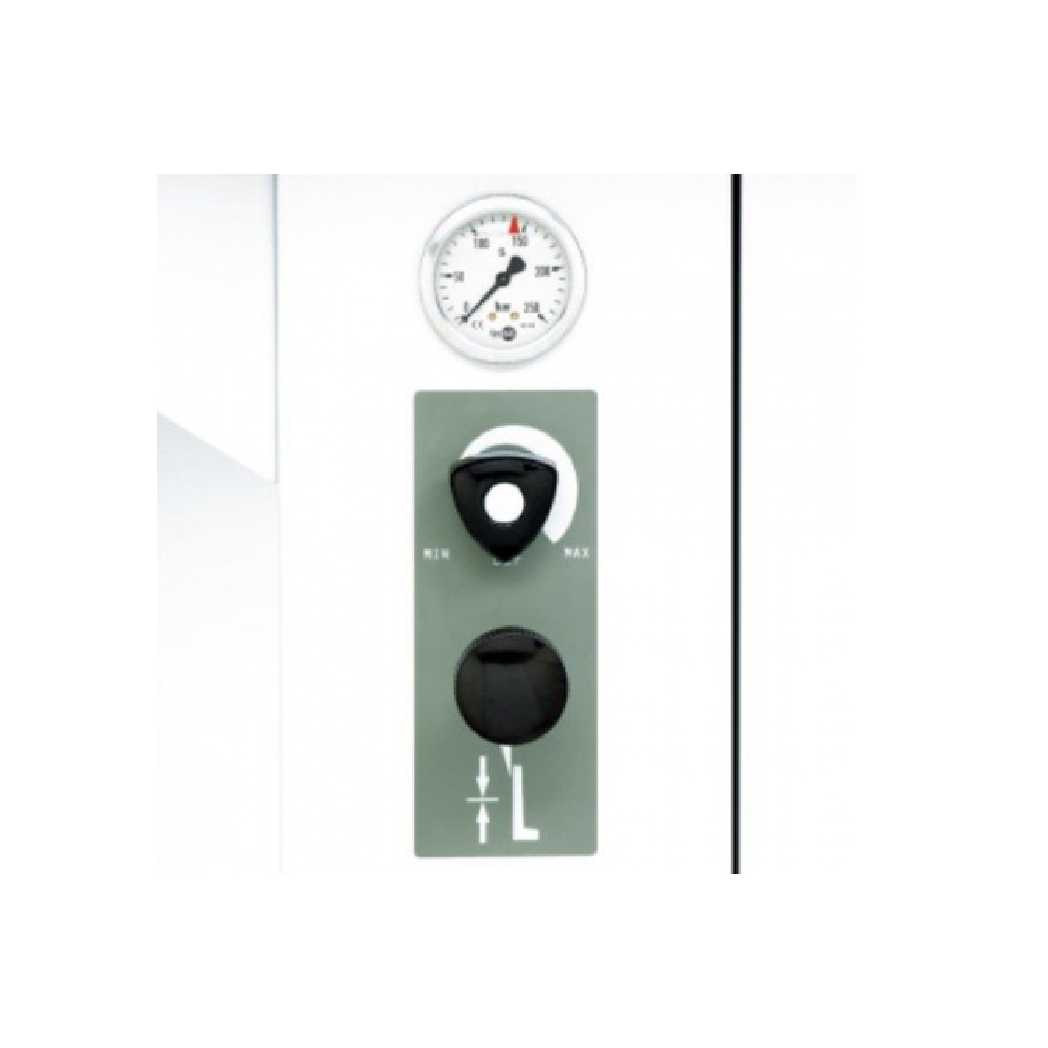

- Adjustable Hydraulic Clamp. Clamping pressure is fully adjustable between 1,900 and 3,800 psi.
- Electronic Hand Wheel. The electronic hand wheel, with infinitely variable speed control, is used for manual back gauge positioning.

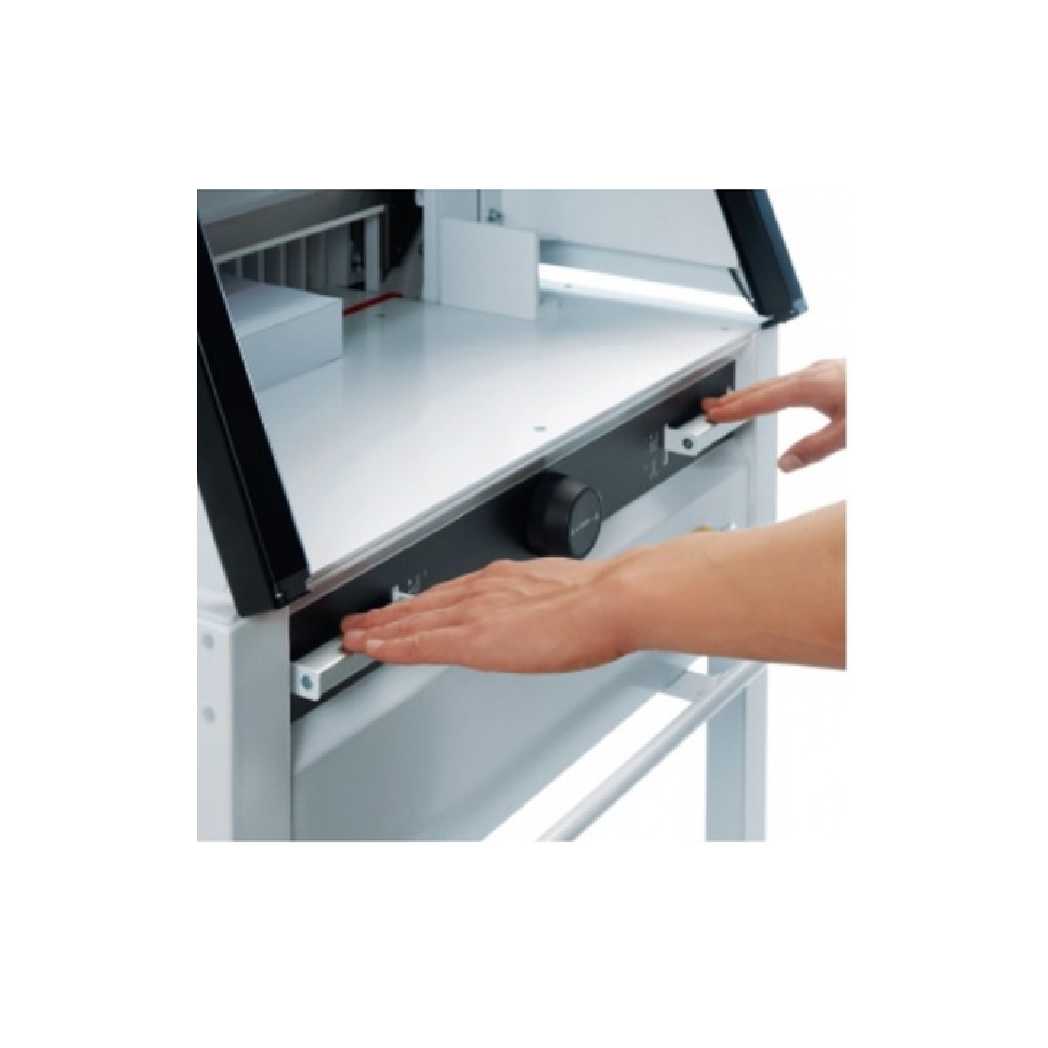

- Easy Cut Blade Activation Bars. Patented EASY CUT blade activation bars ensure true, two-hand operation and allow blade and clamp to be activated independently.

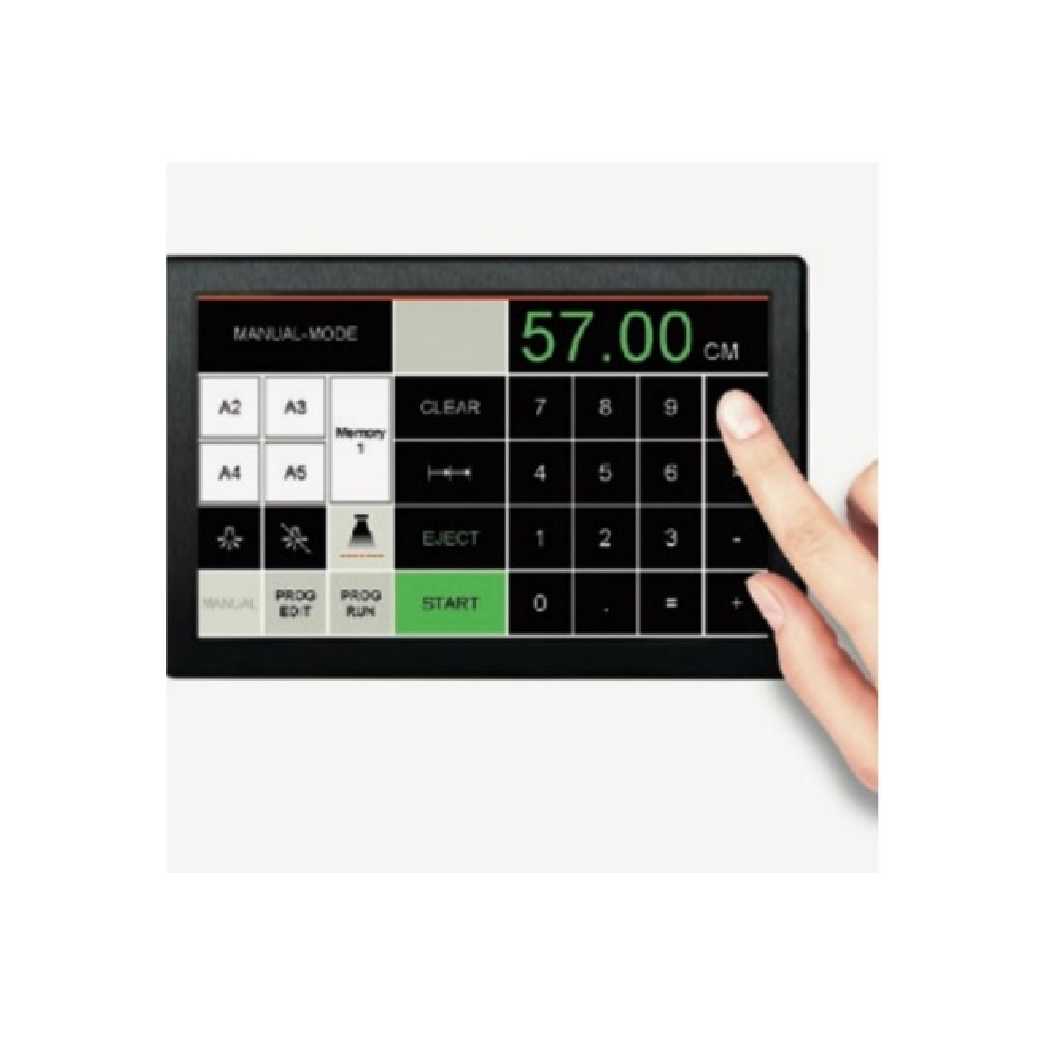

- Large 7-inch Touch Pad Extremely convenient: Programmable control module for the power backgauge with multi-lingual touch pad. 99 programs with 99 steps in each program can be stored.

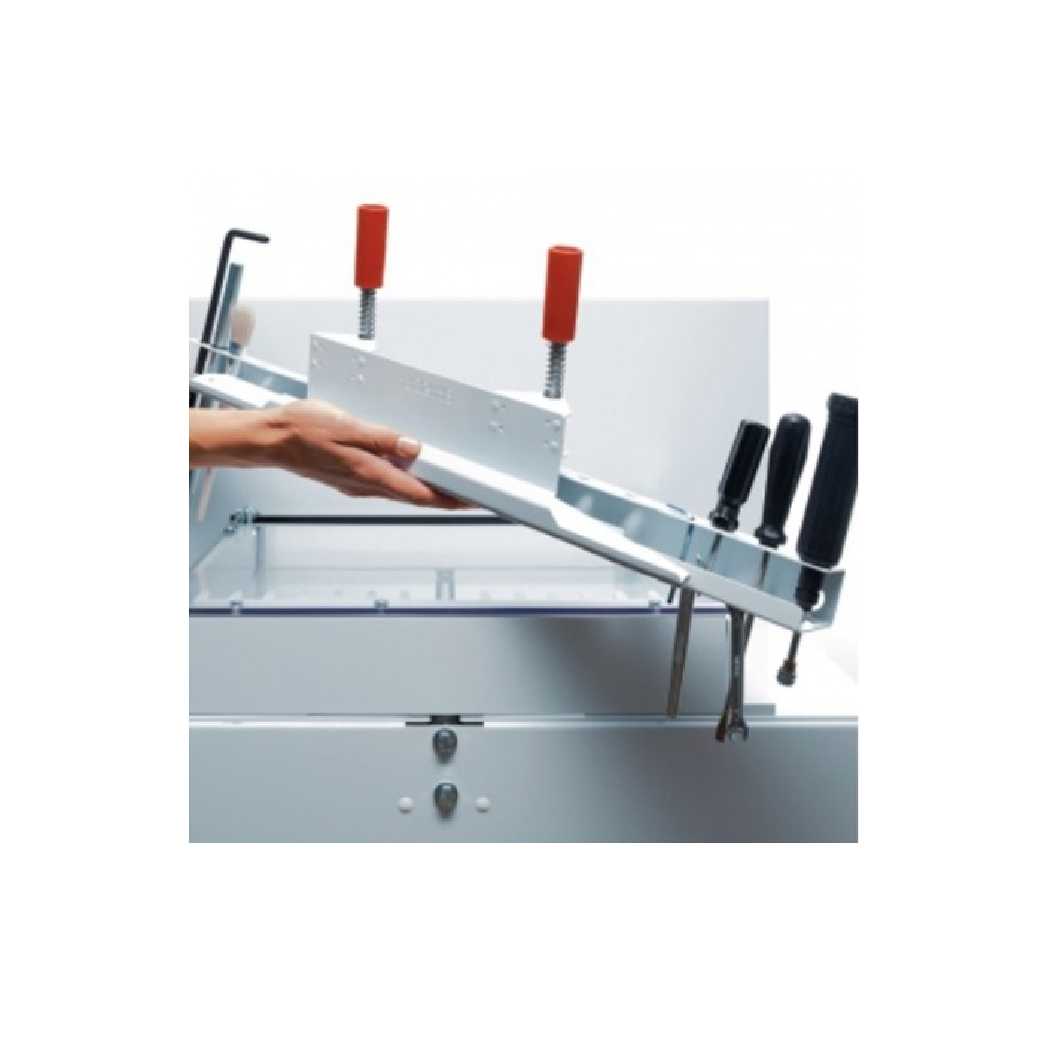

- Tool Holder. Convenient, drop-in tool holder is located on the rear of the machine and keeps all tools necessary for routine maintenance (including blade changes) within reach.
- Swing Cut Blade. The German high speed steel blade with swing cut movement provides the highest level of cutting accuracy.
Performance of VRCut Ready Triumph 5560 LT Paper Cutter
The VRCut ready Triumph 5560 LT is a programmable hydraulic machine with cutting height and width of 3 3/4” and 21 5/8” respectively. The hydraulic clamp pressure can be adjusted between 1900 to 3800 psi. The triumph 5560 LT is equipped with a powerful programmable 7” multi lingual touch pad to power back gauge and can store 99 programs with 99 steps in each program. The triumph paper cutters are assembled with an electronic hand wheel that used for manual adjustment of the back gauge with variable speed. The patented EASY CUT ensures two hand operation and allows blade and clamp to work independently.
The MBM Triumph 5560 LT Hydraulic Paper Cutter is now designed with a new VRCut software solution. The VRCut software breaks down into VRCut impose and controller. The VRCut impose automatically creates a barcode to scan error free jobs on recall as well as an additional guidance measure, cut sequences and arrows to guide operator. The VRCut controller displays a cut-line indicator which display instruction for quick reference and operator is notified at each step when to save cut, discard scraps or additional cutting.
Characteristics
- Programmable cutter with hydraulic blade and clamp drive, power back gauge, digital touchpad
- Electric back gauge drive with touchpad for easy programming
- Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch
- Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
- Pre-programmed for standard paper sizes
- Memory key for repeat cuts
- Automatic set function for reference measurement and eject function for pushing out paper
- Self-diagnostic system with error indication on display
- Electronic back gauge control with variable speed control for manual back gauge setting
- 5560 LT model equipped with front and rear air tables (available by special order only)
- Foot pedal for pre-clamping
- Clamp pressure is fully adjustable between 1,900 and 3,800 psi
- False clamp plate. Bright, LED optical cutting line
- Stainless steel work surface
- High quality, German HSS blade
- Precision swing cut blade movement
- Aluminum blade carrier and clamp bar
- Adjustable blade guides
- All-metal construction
- Mounted on casters
- Includes an easy-access tool holder and paper blocking tool
- Optional side tables increase the work surface
- UL and C UL approved
Safety Features
- Comprehensive SCS safety package: Patented easy cut electronic blade activation bars for true two-hand operation
- IR light beam safety curtain on the front table
- Safety cover on rear table
- Main switch and safety lock with key
- 24-volt controls (low voltage)
- Patented IDEAL safety drive
- Automatic blade and clamp return from every position
- Disc brake for instant blade stop
- Blade changing device covers cutting edge of the blade
- Blade depth adjustment from outside of the machine
- Blade and cutting stick can be changed without removing covers
Frequently Asked Questions
Q. What accessories are available to go with the unit?
A. MBM Triumph 5560LT Automatic Programmable Cutter has Side Tables, Cutter Knife, and Cutter Stick as its accessories.
Q: For how long am i entitled to the warranty?
A: MBM Triumph 5560LT comes with a 1 year limited warranty excluding wearables.
Q: What does the VRCut controller operate in the MBM Truimph 5560LT?
A: The VRCut controller ensures error free operations with additional guidance measures and barcode facility
Q: How does Truimph 5560LT cutter differs from Triumph 5560 cutter?
A: The Truimph 5560LT cutter comes with front and rear air tables.
SPECIFICATIONS
-
Type of machine: Programmable Hydraulic
-
Cutting Width: 21 5/8 inch (558 mm)
-
Cutting Height: 3 3/4 inch (101 mm) (3 5/8 with false clamp)
-
Narrow Cut: 1 1/4 inch (38 mm) (2 3/8 with false clamp)
-
Cutting Length Behind Blade: 22 7/16 inch (559 mm)
-
Motor Output, Horsepower: 2
-
Power Supply: 115V, 60Hz
-
Dimensions (D x W x H): 55" x 42" x 54" inch (1397 x 1067 x 1372 mm) (64 W with side tables)
-
Shipping Weight: 1,014 lbs (460 Kg) (1,008 lbs with side tables)
