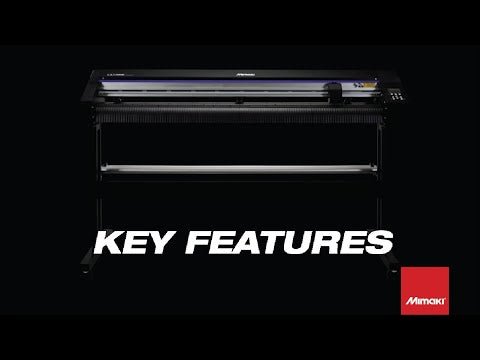

Brand New Mimaki CG-100AR 49.2" Inch Professional Roll to Roll Cutting Plotter With Over Cutting and Corner Cutting

"CG-100AR" is the entry-model of cutting plotter with improved cutting performance, compatibility with a wide range of cutting materials, and enhanced usability, all at an affordable price.

In addition to cutting letters, labels, and stickers, the CG-100AR newly supports full cutting and folding lines of cardboards. It can also produce packages up to A3 size by using dedicated options.

Specification

• Acceptable sheet width - 90 - 1,250 mm (3.5 - 49.2")
• Effective cutting area - 1,070 mm × 51 M (42.1" x 167.3')
• Maximum speed Cutting - 73 cm/s (28.7"/s), Moving at 45° direction: 103 cm/s (40.5"/s)
• Adjustable speed range - 1 - 10 cm/s (1 cm/s step adjustment): 0.4 - 3.9"/s (0.4"/s step adjustment, 10 - 73 cm/s (5 cm/s step adjustment): 4.0 - 28.7"/s (2.0"/s step adjustment)
• Mechanical resolution - X direction: 2.5 μm, Y direction: 5 μm
• Command resolution - 25 μm, 10μm（MGL-IIc） / 100 μm, 50 μm（MGL-Ic1）
• Repeatability - ± 0.2 mm / 2 M
• Effective Repeatability - 1,050 mm × 2 M
• Maximum pressure - 550g
• Range of down pressure
• Cutter 10 - 20 g (2 g step), 20 - 100 g (5 g step), 100 - 550g (10g step)
• Pen 10 - 20 g (2 g step), 20 - 100 g (5 g step), 100 - 150g (10 g step)
• Creasing tool 10 - 20 g (2 g step), 20 - 100 g (5 g step), 100 - 550g (10g step)
• Acceptable sheet - Vinyl sheet, Fluorescent type vinyl sheet, Reflective sheet, Rubber sheet and Cardboard (used in combination with an optional sheet table)
• Acceptable tool - Eccentric cutter, Creasing tool, commercially available ball-point pen
• Type of command - MGL-IIc / MGL-Ic1
• Interface - USB, RS-232C, Ethernet
• Receiver buffer size - About 27 MB as standard (17 MB when sorting is effective)
• Operational environment - Temperature: 5 - 35 degC (41 - 95 degF), Humidity: 35 - 75 ％ Rh (Non-condensing)
• Power supply - AC 100 V - 240 V 1A 50/60Hz
• Power consumption - 168W or less
• Dimensions（W×D×H) - 1,510 × 580 × 1,160 mm (59.4 × 22.8 × 45.7")
• Weight - 35kg (77.2 lb)
• Stand - Standard equipment

Features

Best-in-class cutting pressure of 550 g and the speed improved to 105% of the conventional model

The cutting pressure can be selected from 10 g to 550 g, and three types of cutting are possible: normal cutting, complete cutting, and half cutting. The machine can cut a wide variety of materials, including PVC, fluorescent and reflective sheets, and rubber sheets.

Optional products for cutting cardboard can be added to produce packages up to A3 size

CG-AR Series are now capable of producing high-quality cutouts from plain paper to cardboard with the use of optional products for cardboard cutting, such as a Sheet table, Cutting sheet, Blade for heavy paper and Creasing tool. Using this machine, you can produce paper crafts and packages.

Examples of production

Supporting for Windows plotter driver allows you to cut without the need for dedicated software

With use of familiar software such as Microsoft Word/Excel/PowerPoint, cutting is now as easy as outputting from a general office printer.

"ID Cut function" provided for efficient Print & Cut

"ID cut" is a function for automatically cutting data included in an ID simply by scanning the ID register marks output by Mimaki's optionally available printer*. Data transmission from the PC is completed with one-time operation, which drastically saves labor for print & cut and enhances work efficiency.

"Mimaki Remote Access (MRA)" enables to check the machine operation status and operate the panel from a distance

It is now possible to check the status of the cutting plotter remotely from your iPhone or PC. This function enables operators to check the operation status of the machine and to operate the panel from a distance, allowing them to work more efficiently.

Various convenient functions

Over cutting and corner cutting

Over cutting and corner cutting of starting & ending points and other corners are possible, which prevents incomplete cutting.

Continuous Crop Mark Detection

---

Segment Compensation

---



Other functions

• Division Cut Function: Cut is performed by splitting a space larger than the sheet width or splitting long data in the X-axis (feed) direction and the Y-axis (width) direction to avoid cut position gap.
• Ethernet Connection: Network control via integration into office LAN.
• Improved assembly and installation: Up to 30% weight reduction for simplified assembly. The addition of rubber feet makes it easier to adjust the rattle when installing on a tabletop.
• Improved cutter holder: The cutter blade can be changed with less operation than conventional products. (4.5 turns of the knob -> 2.5 turns)
