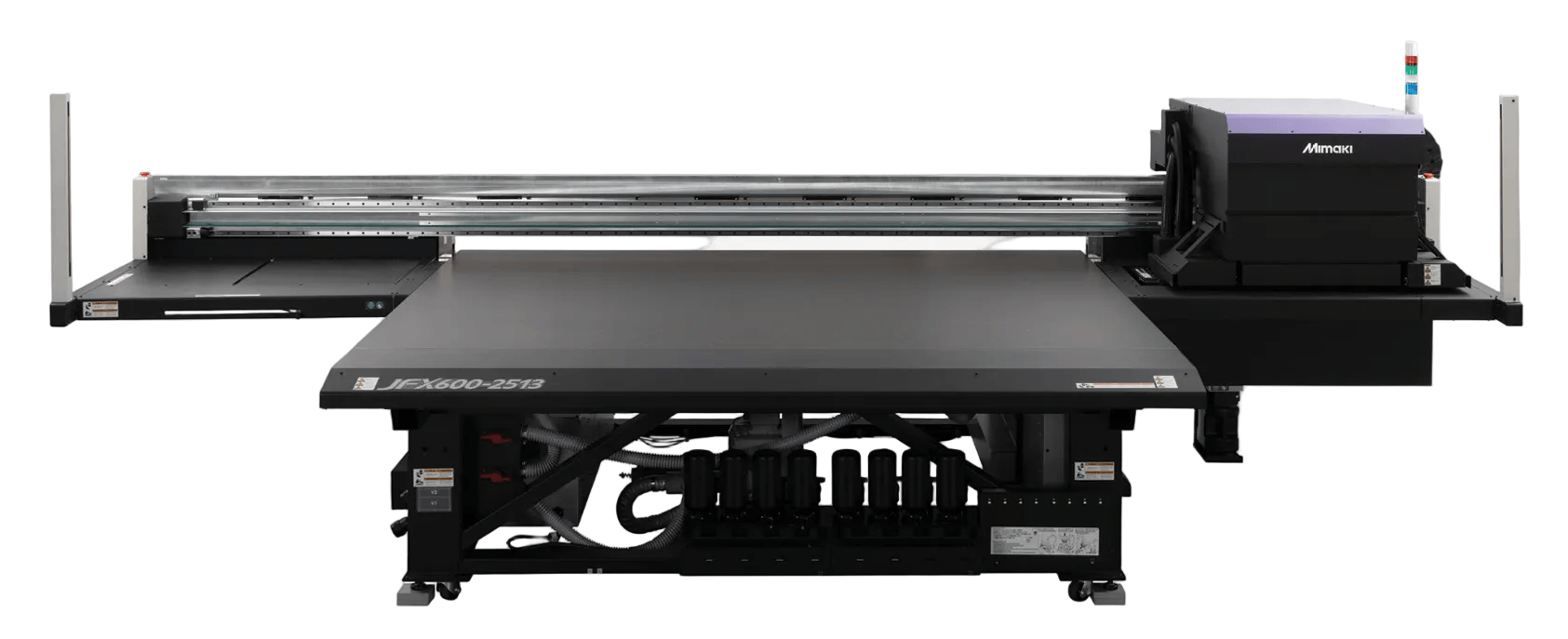

Demo Mimaki JFX600-2513 UV-LED Large Flatbed Inkjet Printer - 1 year Warranty

Features

Amazingly high productivity: Up to 330% higher speed

330% faster than the previous model (JFX500-2131) by installing significantly more printheads.
The great increase in productivity allows for quick delivery of large format prints.

Speed comparison in the equivalent image quality, when printing at 4C / 1 layer

Rich color expression: 6 color inks, including light colors

Six colors, including Lc and Lm, are available for rich color expression.
There are a wide variety of UV ink types to choose from to suit your application.
Every ink has gained the “GREENGUARD Gold” certification by meeting VOC (Volatile organic compound) emissions requirements, the most stringent standard in the world, from UL, a U.S. third-party safety science organization, and is recognized for its environmental safety.

MPC (Mimaki Printer Controller) using a graphical user interface

It is a new software used for operation in the touch screen monitor connected to the printer. All operations are visually organized by item and can be performed on the MPC screen, including setting print conditions, checking work/printer status and work history, and checking maintenance instructions.

Designed with usability in mind: table size & vacuum table, 60mm thick media support

Table size & Vacuum table

The table size of 2,500 × 1,300 mm nicely fits commonly used 4' × 8' media*.
Two selectable vacuum zones:
The vacuum area to hold media is divided into two sections in the X direction of the table, and can be adjusted to the media size you use by opening/closing valves. Besides the operation panel, a foot switch can be used to turn the vacuum on and off.
*1,220mm×2,440mm

Supporting media as thick as 60 mm

Direct printing on media as thick as 60 mm allows you to expand the range of materials.

You can also print on standard 50 mm thickness channel boards with aluminum composite board, PVC board, etc. laminated on the front and back (real 52-53 mm thickness)!

Incorporation of the reliable Mimaki technology

Mimaki's image quality control technology ensures more beautiful prints

• Waveform control: Thanks to Mimaki's unique advanced ink droplet ejection control, droplets with high circularity can be ejected to make them accurately land on the media. This enables sharp expression of text, ruled lines, and edges.
• MAPS4 (Mimaki Advanced Pass System 4): Banding (horizontal stripes), uneven color, and glossy streaks can be reduced to realize smooth prints by printing pass boundaries fading in gradation.
• Variable dots: Three different ink dot sizes are used to enable high-quality prints with reduced graininess.

Reliable functions for stable operation

"NCU & NRS" not to stop work

NCU (Nozzle Check Unit) detects the status of nozzles automatically. When the NCU detects a missing nozzle, it automatically performs cleaning. If cleaning does not solve the problem, NRS (Nozzle Recovery System) automatically replaces the defective nozzles with other nozzles, which enables users to continue their operation without waiting for service representative.

Mimaki Circulation Technology (MCT) minimizes downtime

An ink circulation mechanism is provided in the ink tank and ink path. It circulates white ink periodically to prevent nozzle trouble due to deposited ink pigments and to stabilize printing performance.
In addition, MCT contributes to reduction of ink waste, thereby supporting environmentally and economically friendly applications.

Variable expression to add more value to prints

"2.5D Texture Maker" that enables easy creation of smooth semi-stereoscopic 2.5D data

Multi-layered gradation data can be created by “2.5D Texture Maker”, a function of the bundled RIP “RasterLink7”.

Smooth expression of bumpy textures can be achieved using multiple layers of UV ink. This allows you to create realistic and eye-catching graphics.

White Ink and Clear Ink

Printing together with high-concentration white ink as the base color on transparent or deep-color media makes full-color images more vivid.
Clear ink printing enhances decorative effects such as mat, gloss and texture.

---

---

Primer

It is an inkjet primer that improves the adhesion of materials such as resin, glass, metal and those surface-finished.
Expanding the range of material selection, high value added applications can be produced.

As the primer, PR-200 is applied simultaneously with color printing, the PR-200 applying only to the necessary part of material is possible, too.
Therefore the texture of the base material that was lost by conventional manual primer applying can be maintained.
