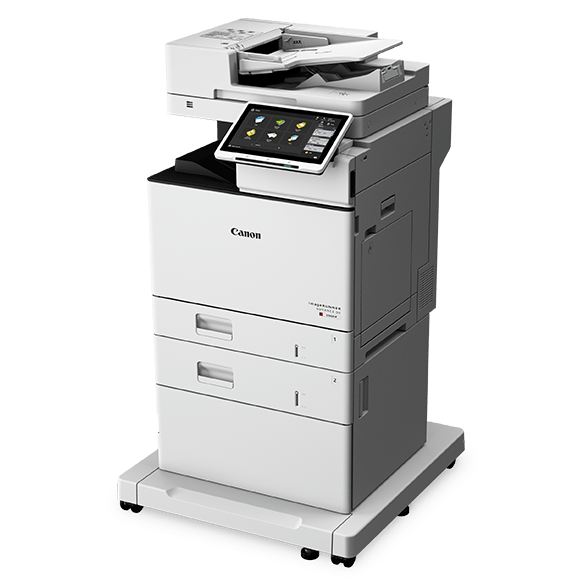

Canon’s Color imageRUNNER ADVANCE DX C568iF can help simplify the end-user experience and management of technology, for any business needs.
Learn more about how the Color imageRUNNER ADVANCE DX C568iF is perfect for your small or home office.
Learn more about how the Color imageRUNNER ADVANCE DX C568iF is equipped for all your small or home office needs.
Type |
Colour Laser Multifunctional |
Core Functions |
Print, Copy, Scan, Send, Store, Fax |
Processor |
1.75GHz Dual Core Processor |
Control Panel |
10.1" TFT LCD WSVGA Colour Flat-panel |
Memory |
4.0 GB RAM |
Solid State Drive |
256 GB |
Interface Connection |
Network: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) Optional: Bluetooth Low Energy (BLE) |
Interface Connection Others |
Standard: USB 2.0 x1 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device) Optional: Copy Control Interface |
Paper Capacity (LTR, 20 lb. Bond) |
Standard: 650 Sheets Maximum: 2,300 Sheets |
Paper Sources (LTR, 20 lb. Bond) |
Standard: 550-sheet Paper Cassette, 100-sheet Multi-Purpose Tray Optional: 1,650-sheet Paper Cassette (Cassette Feeding Unit-AT1) & 550-sheet Paper Cassette (Cassette Feeding Unit-AS1) |
Paper Output Capacity (LTR, 20 lb. Bond) |
400 Sheets |
Finishing Capabilities |
Collate, Group |
Supported Media Types |
Multi-Purpose Tray: Thin, Plain, Recycled, Heavy, Colour, Bond, Envelope Cassette: Thin, Plain, Recycled, Heavy, Colour, Label, Bond |
Supported Media Sizes |
Multi-Purpose Tray: Legal, Letter, Executive, Statement, Envelopes [No.10 (COM10), Monarch, DL, ISO-C5], Custom size: 3" x 5" to 8-1/2" x 14" (76.2 x 127.0 mm to 216.0 x 355.6 mm) Cassette: Legal, Letter, Executive, Statement, Custom Size: 4" x 5-7/8" to 8-1/2" x 14" (101.6 x 148.0 mm to 216.0 x 355.6 mm) |
Supported Media Weights |
Cassettes: 16 lb. Bond to 60 lb. Cover (60 to 163 g/m2) Multi-Purpose Tray: 16 lb. Bond to 79 lb. Cover (60 to 216 g/m2) Duplex: 16 lb. Bond to 60 lb. Cover (60 to 163 g/m2) |
Print/Copy Speed (BW and Colour) |
Up to 60 (Letter), Up to 47 (Legal) |
Warm-up Time |
From Power On: Approx. 10 Seconds (Time from device power-on until copy ready (not print reservation)) From Sleep Mode: Approx. 10 Seconds (Time from exiting Sleep mode to when printing is operational) Quick Startup Mode: Approx. 4 Seconds (Time from device power-on to when copy jobs can be programmed) |
Dimensions (W x D x H) |
20-1/2" x 25-1/4" x 26-3/8" (521 mm x 642 mm x 668 mm) |
Installation Space (W x D) |
37-3/8" x 33-1/8" (950 mm x 840 mm) (with Left Cartridge Door Open + Right Door Open + the Cassette Drawer Open) |
Weight |
Approx. 101.4 lb. (Includes consumables) |
Print Resolution (dpi) |
1200 x 600, 600 x 600 |
Standard Page Description Languages |
UFR II, PCL®6, Adobe® PostScript® 3TM |
Direct Print |
Available from USB, Advanced Box, Remote UI, and Web Access |
Supported File Types |
PDF, TIFF, JPEG, EPS, XPS |
Printing from Mobile Devices and Cloud-based Services |
A range of standard and optional software and MEAP-based solutions (including AirPrint, Mopria, Google Cloud Print, Canon PRINT Business, and uniFLOW Online) are available to provide printing from mobile devices or Internet connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information. |
Fonts |
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese), Barcode Fonts PS fonts: 136 Roman |
Operating System |
UFRII/PS: Windows® 7/8.1/10, Windows Server 2008/2008 R2/2012/ 2012 R2/2016/2019, Mac OS X (10.10 or later) PCL: Windows® 7/8.1/10, Windows Server 2008/2008 R2/2012/2012 R2/2016/2019 PPD: Windows® 7/8.1/10, Mac OS X (10.9 or later) |
First-Copy-Out Time (LTR) |
As fast as 5.1/5.8 seconds |
Copy Resolution (dpi) |
600 x 600 |
Multiple Copies |
Up to 9,999 |
Magnification |
25%-400% (1% Increments) |
Preset Reductions/Enlargements |
25%, 50%, 64%, 78%, 100% (1:1), 129%, 200%, 400% |
Type |
Single-Pass Duplexing Automatic Document Feeder (Multi-Sheet Feed Detector Supported) |
Document Feeder Paper Capacity |
Up to 100 Sheets (20 lb. Bond) |
Document Feeder Supported Media Sizes |
Legal, Letter, Statement, Custom Size: 1-7/8" x 5" to 8-1/2" x 14" (48.0 mm x 128.0 mm to 216.0 mm x 355.6 mm), Business Card: 1-7/8" x 3-3/8" to 2-1/8" x 3-5/8" (48.0 mm x 85.0 mm to 55.0 mm x 91.0 mm) |
Document Feeder Supported Media Weights |
Single-Sided Scanning: 13.3 to 34 lb. Bond (50 to 128 gsm) (BW); 17 to 34 lb. Bond (64 to 128 gsm) (CL) Double-Sided Scanning: 13.3 to 34 lb. Bond (50 to 128 gsm) (BW); 17 to 34 lb. Bond (64 to 128 gsm) (CL) Business Card: 21.3 lb. Bond to 80 lb. Cover (80 to 220 gsm) |
Platen Acceptable Originals |
Sheet, Book |
Pull Scan |
Colour Network ScanGear2 for both Twain and WIA Supported OS: Windows® 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016 |
Scan Resolution (dpi) |
Scan for Copy: 600 x 600 Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600 Scan for Fax: 600 x 600 |
Scan to Mobile Devices and Cloud-based Services |
A range of solutions is available to provide scanning to compatible mobile devices and certain cloud-based services depending on your requirements. |
Scan Speed (LTR) |
Send Automatic Colour Select "OFF" (300 x 300 dpi):
Automatic Colour Select "ON" (300 x 300 dpi):
Copy Scan Speed Priority (300 x 600 dpi):
Image Quality Priority (600 x 600 dpi):
|
Destination |
Standard: Email/Internet Fax (SMTP), SMB v3.0, FTP, WebDAV, Mail Box, Super G3 Fax Optional: IP Fax |
Address Book |
LDAP (2,000)/Local (1,600)/Speed Dial (200) |
Send Resolution (dpi) |
Push: Up to 600 x 600 Pull: Up to 600 x 600 |
Communication Protocol |
File: FTP (TCP/IP), SMB v3.0, WebDAV Email: SMTP, POP3 |
File Format |
TIFF, JPEG, PDF (Compact, Searchable, Apply policy, Optimize for Web, PDF A/1-b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word) |
Maximum Number of Connection Lines |
1 |
Modem Speed |
Super G3: 33.6 Kbps G3: 14.4 Kbps |
Compression Method |
MH, MR, MMR, JBIG |
Resolution (dpi) |
400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal) |
Sending and Recording Size |
Statement to Legal |
Fax Memory |
Up to 30,000 Pages (2,000 jobs) |
Speed Dials |
Maximum 200 |
Group Dials/Destinations |
Maximum 199 Dials |
Sequential Broadcast |
Maximum 256 Addresses |
Memory Backup |
Yes |
Mail Box Simple (Number Supported) |
100 User In-boxes, 1 Memory RX In-box, 50 Confidential Fax In-boxes, Maximum 10,000 Pages (2,000 jobs) Stored |
Advanced Box |
Communication Protocol:
Supported Client PC:
Concurrent Connections (Max.)
|
Advanced Box Available Disc Space |
Approx. 16 GB |
Authentication |
Standard: Universal Login Manager (Device and Function Level Log-in), uniFLOW Online Express (no charge for this solution; however activation is required), User Authentication, Department ID Authentication, Access Management System Optional: uniFLOW |
Data |
Standard: Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Mail Box Password Protection, Hard Disk Drive Encryption (FIPS140-2 Validated), Verify System at Startup, McAfee Embedded Control Optional: IEEE 2600.2 Common Criteria Certification, Data Loss Prevention (Requires uniFLOW) |
Network |
IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication (v1.0/1.1/1.2/1.3), SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP, S/MIME, SIEM Integration |
Document |
Secure Print, Adobe LiveCycle® Rights Management ES2.5 Integration, Encrypted PDF, Encrypted Secure Print, Device Signature, User Signatures, Secure Watermark |
Operating Environment |
Temperature: 10 to 30ºC Humidity: 20 to 80% RH (Relative Humidity) |
Power Requirements |
120-127V AC 60 Hz, 8.4A |
Plug (Main Unit) |
NEMA 5-15P |
Power Consumption |
Maximum: Approx. 1,500 W Standby: Approx. 49 W Sleep Mode: Approx. 1.0 W Typical Electricity Consumption (TEC) Rating: 0.67 kWh |
Standards |
ENERGY STAR® Certified |
Toner Cartridge |
TONER T04 BK/C/M/Y (Toner T04L also available for BK and Colour (C, M, Y). Yield is BK 11,000 images and Colour 9,000 images) |
Toner Yield |
TONER T04 BK: 33,000 pages; TONER T04 C/M/Y: 27,500 pages |
