Product Information

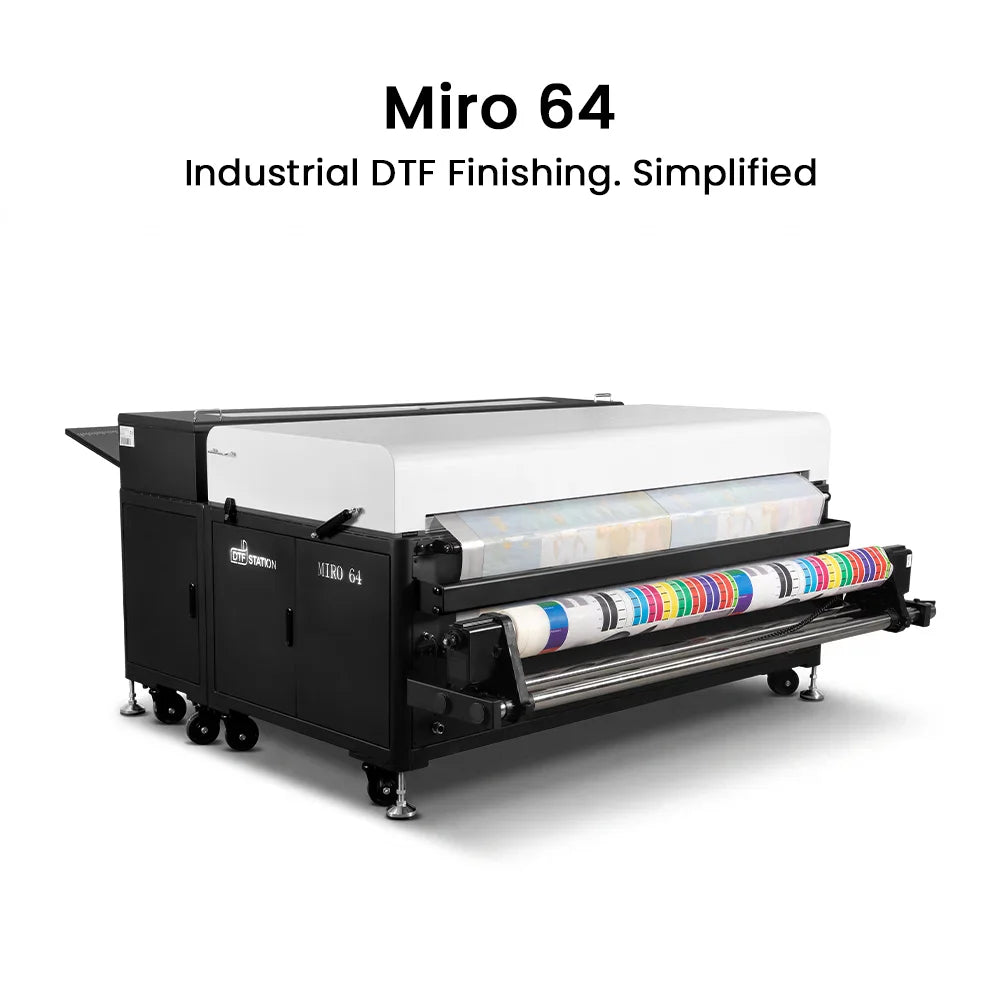

The DTF Station MIRO 64 is a 64-inch industrial powder shaker engineered for high-volume custom apparel manufacturing. It processes wide-format direct-to-film transfers using five-zone independent thermal control and integrated fume extraction. This hardware accelerates production for commercial decorators printing heavy outerwear and corporate merchandise.
Wide-Format Production & Dual-Roll Media Handling
Scaling apparel decoration requires continuous processing. The MIRO 64 processes a single 64-inch film roll or two separate 24-inch rolls on one unified platform. This dual-mode capability allows operators to run distinct client orders through the same curing tunnel simultaneously. You can pair this system directly with our high-capacity eco-solvent inks and DTF printers to bypass traditional manufacturing delays.
It processes up to 377 square feet per hour (35 square metres per hour) without dropping thermal consistency. The unit synchronises perfectly with high-velocity print engines like the EPSON SureColor G9070, EPSON G9000, and the Mimaki TxF300-1600. Syncing your powder shaker directly to your piezoelectric printheads guarantees exact hot melt adhesive distribution across every graphic.
Thermal Architecture & Industrial Fume Management

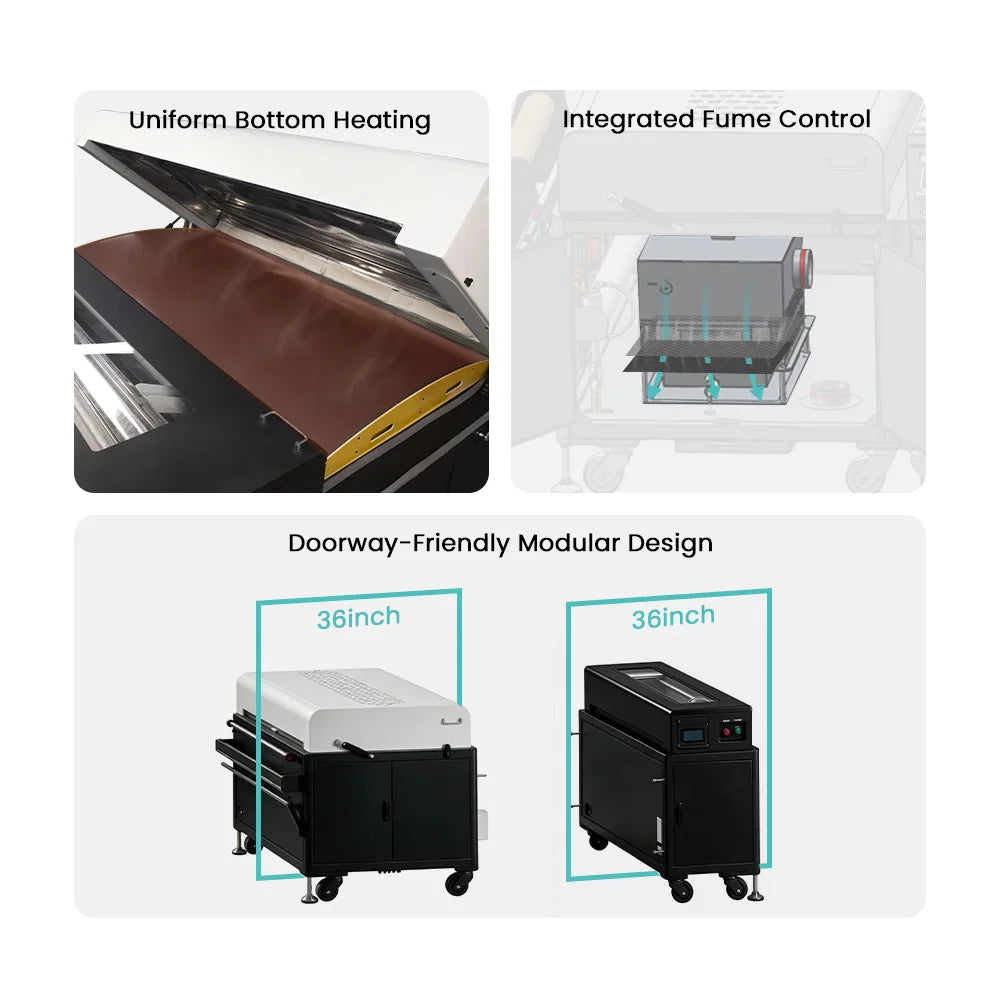

Industrial curing demands exact temperature stability across wide belts. The machine deploys five-zone independent heat control alongside a patented bottom heating mechanism. This structural design bakes the adhesive powder into the wet ink layer evenly, preventing cold spots across the massive 160 cm media width.
A built-in fume extractor pulls airborne particulates and curing off-gassing out of the work area instantly. This internal management system eliminates the need for expensive external exhaust ducting modifications on the shop floor. For deep technical safety verification regarding airborne particulates, review the OSHA standards for workplace ventilation. A centralized user interface consolidates temperature, paddle speed, powder drop rates, and fume extraction controls into a single touchscreen.
Facility Integration & Mechanical Specifications
Factory installation remains highly practical despite the large output capacity. A two-section modular chassis simplifies facility entry, allowing the equipment to pass cleanly through standard 36-inch commercial doorways. It operates on an AC 220 V single-phase electrical line, drawing 5500W. This simplifies electrical integration by avoiding the three-phase power drops typically required for equipment of this size.

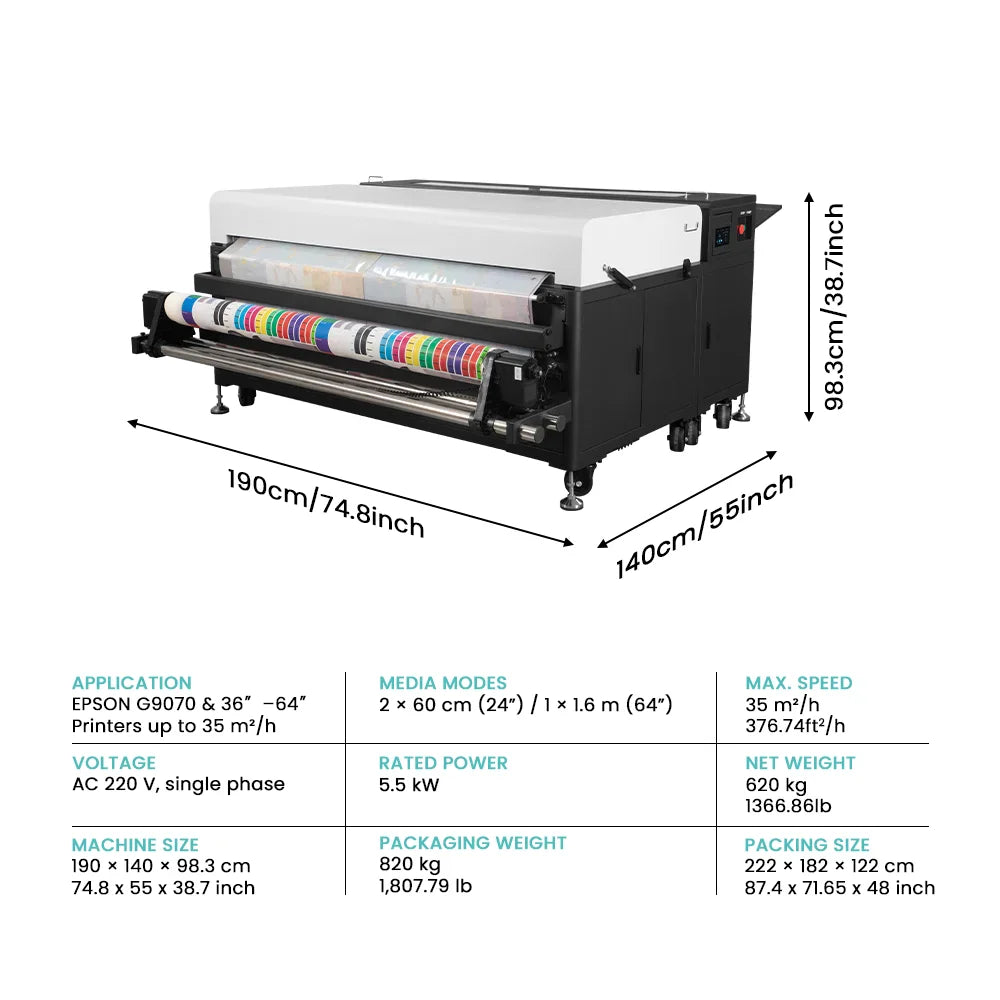

| Specification | Technical Parameter |
|---|---|
| Brand & Model | DTF Station MIRO 64 |
| Maximum Film Width | 160 cm (64") |
| Media Modes | 1 × 64" roll or 2 × 24" rolls |
| Production Speed | Up to 35 m²/h (377 sq. ft./h) |
| Heating Architecture | 5-Zone Independent Control & Patented Bottom Heating |
| Power Requirements | 5.5 kW, AC 220 V, Single Phase |
| Machine Dimensions (L×W×H) | 1900 × 1400 × 983 mm (74.8" × 55.1" × 38.7") |
| Machine Weight | 620 kg (1,366.86 lb) |
| Packaged Dimensions | 2100 × 1700 × 1220 mm (82.7" × 66.9" × 48.0") |
| Packaged Weight | 820 kg (1,807.79 lb) |
| Warranty Terms | 16 Months from the Date Shown on the CE Label |
Canadian Distribution & B2B Leasing Programs
Absolute Toner ships heavy commercial print hardware rapidly across the Greater Toronto Area. We execute immediate freight dispatch to Toronto, Mississauga, Brampton, Vaughan, and manage secure cross-Canada logistics. Commercial facilities can access our flexible B2B lease-to-own ROI programs starting as low as $195 per month to protect operating capital.
Core Hardware Advantages:
- Compatible with all 36-inch to 64-inch DTF printers running up to 35 m²/h.
- Two-section modular design simplifies shipping and site setup without heavy rigging.
- Centralized user interface decreases operator training time and reduces setup errors.
- Scales naturally alongside UV-LED curing systems, automotive PPF film plotters, and contour cutting machines.
Benefits

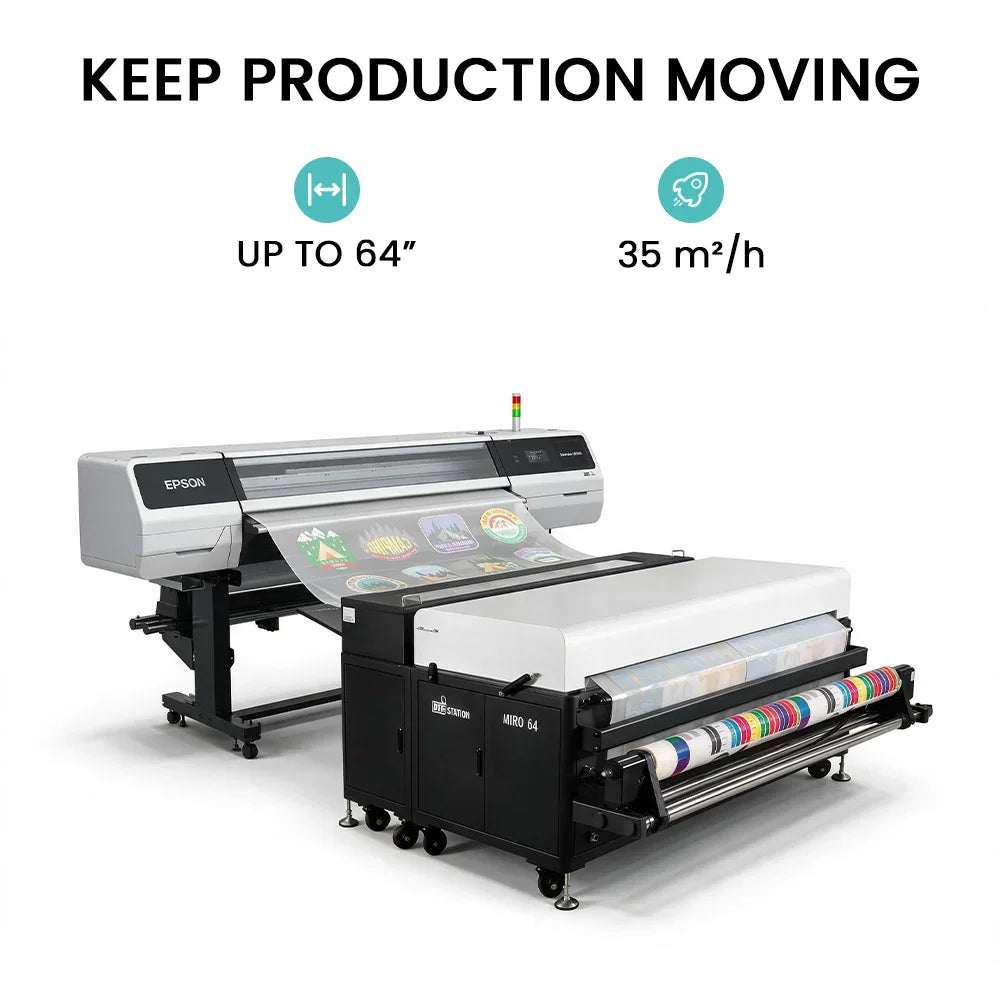

- Keep Production Moving: Designed for EPSON G9070 and other 64″ DTF printers with printing-speed compatibility up to 35 m²/h, supporting demanding wide-format production.

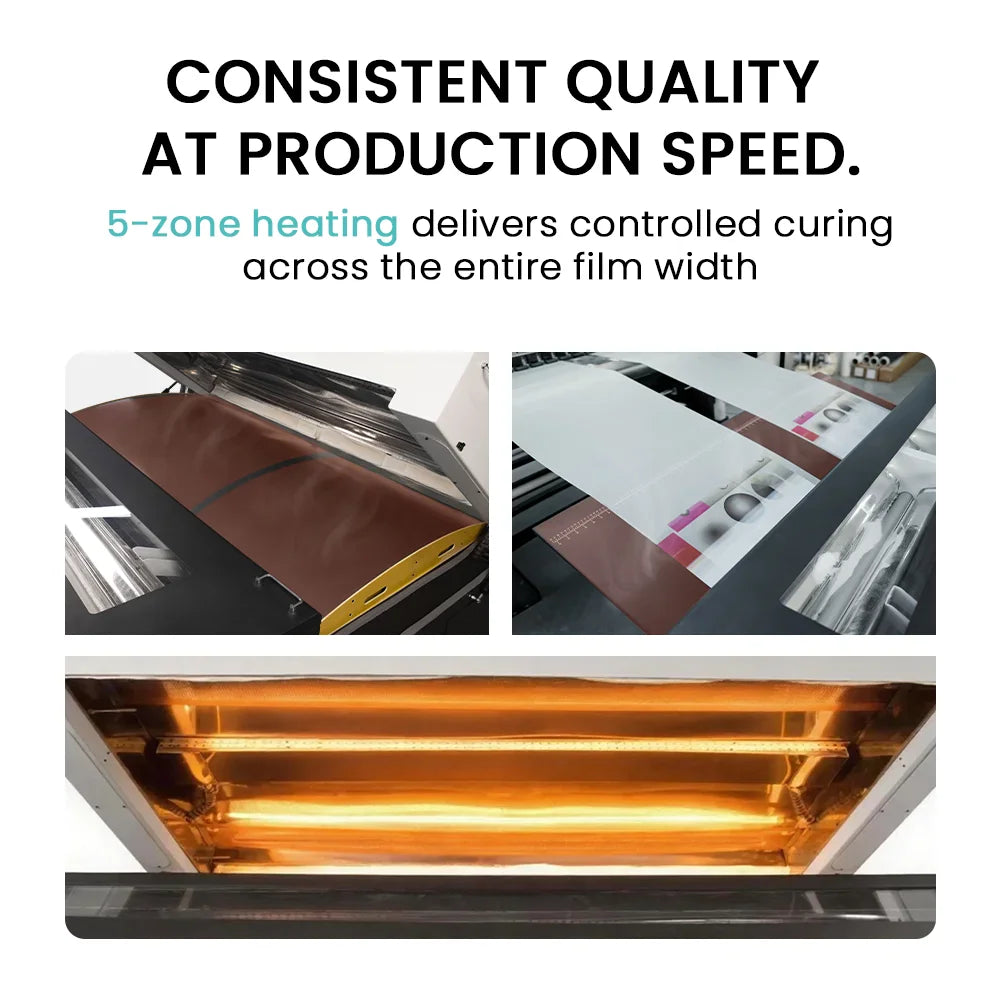

- Consistent Quality at Production Speed: Maintain stable curing with patented bottom heating and independent 5-zone heat control.

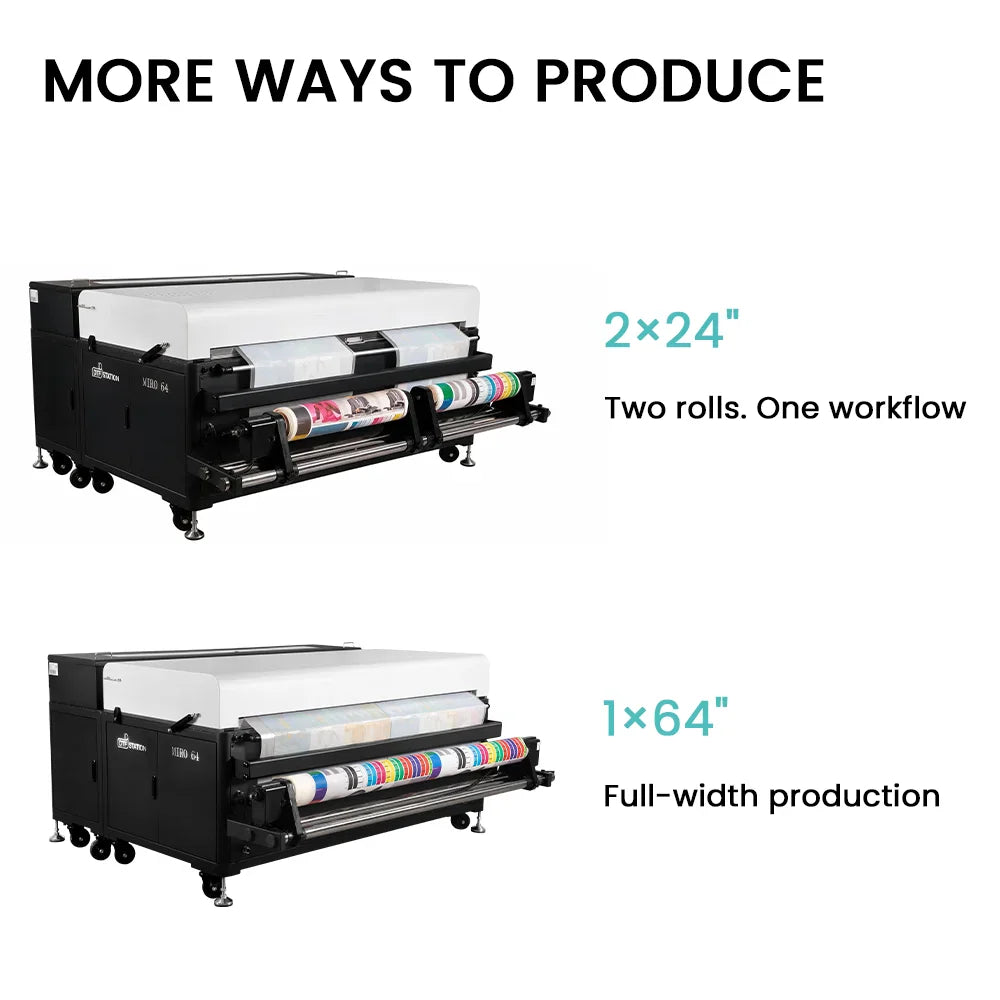

- More Production Options: Run one 64″ roll or two 24″ rolls, giving you the flexibility to handle different production demands with one platform.
- Integrated Fume Management:Â Built-in fume management reduces the need for separate external components and keeps your equipment setup streamlined.
- Control Production With Ease: A purpose-built interface puts key controls—including temperature, paddle speed, powder drop, and fume extraction—in one place.
- Easier to Learn & Run: A user-friendly UI helps operators learn faster, adjust settings with confidence, and reduce avoidable setup errors.
- Easier Power Setup: 5.5 kW, AC 220 V single-phase operation simplifies electrical integration compared with three-phase-only industrial systems.
- Built for Real Production Spaces: A two-section modular design simplifies shipping and site entry and is designed to pass through a standard 36″ doorway.
Compatible With
- EPSON SureColor G9070 / G9000
- Mimaki TxF300-1600
- Other 64″ DTF Printers up to 35 m²/h
