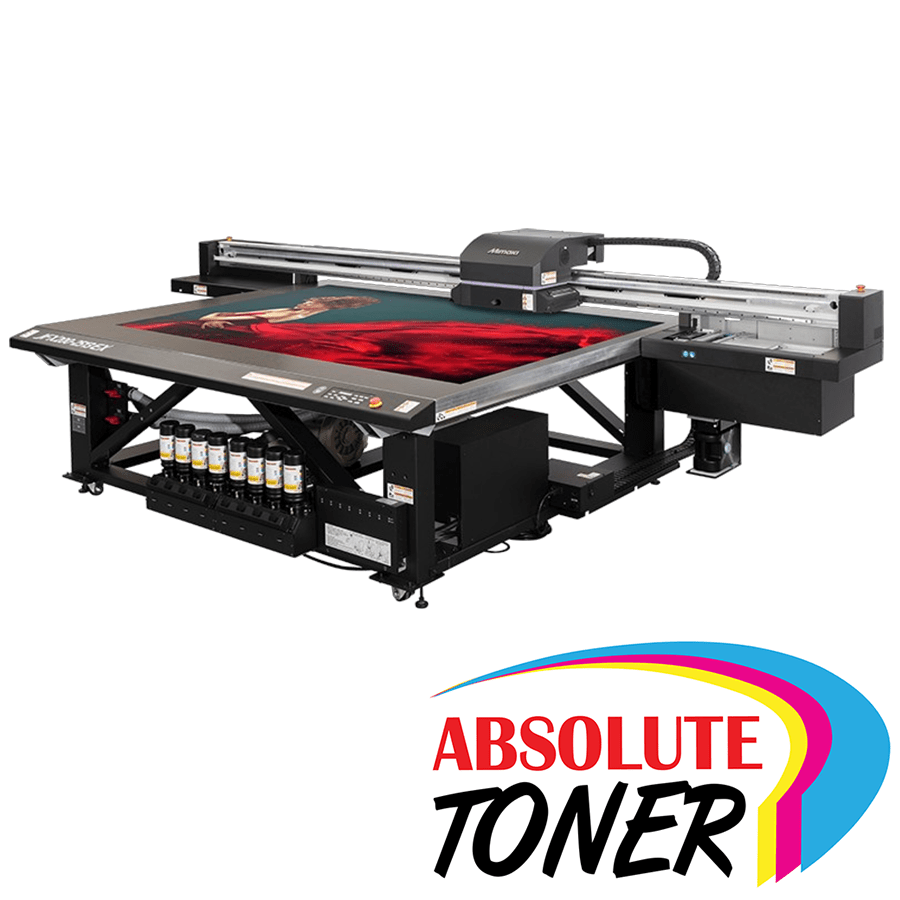

Mimaki JFX200-2513 EX UV Flatbed Printer

Discover the Mimaki JFX200-2513 EX, a high-performance UV flatbed printer designed for Canadian businesses seeking top-tier productivity and creative versatility. This industry-leading, entry-level model delivers exceptional print quality on a wide range of materials, making it ideal for sign shops, print houses, and creative studios across Ontario, British Columbia, and beyond. With advanced features like 2.5D texture printing and eco-friendly UV-LED inks, this printer meets the demands of the Canadian market while adhering to strict environmental standards.

Specifications at a Glance

• Print Area: 2,500 x 1,300 mm (98.4” x 51.2”)
• Media Thickness: Up to 50 mm (2”)
• Media Weight: Up to 50 kg/m² (110.2 lb./ft²)
• Ink Types: LUS-120, LUS-150, LH-100 (CMYK, Lc, Lm, W, Cl), PR-200 primer
• Print Resolution: 300, 450, 600, 900, 1,200 dpi
• Curing System: Eco-friendly LED-UV, GREENGUARD Gold certified
• Dimensions: 4,400 x 2,450 x 1,250 mm (173.2” x 96.4” x 49.2”)
• Weight: 650 kg (1,433 lbs.)
• Power: Single-phase 200–240 V AC, <2.88 kVA

Key Features of the JFX200-2513 EX

High-Value 2.5D Texture Printing

The JFX200-2513 EX introduces Mimaki’s innovative 2.5D Texture Maker, enabling the creation of semi-stereoscopic prints with smooth, tactile textures. Using Adobe Illustrator or Photoshop alongside RasterLink6Plus software, you can craft layered designs for applications like woodgrain textures, embossed signage, or oil painting effects. This feature adds a premium, touchable quality to your prints, setting your work apart in competitive markets like Toronto’s signage industry.

Unmatched Productivity

Achieve print speeds of up to 35 m²/h (376.7 sq. ft/h) with the new Draft mode, a 140% improvement over the previous JFX200-2513 model. The printer’s three staggered printheads ensure simultaneous printing with white and clear inks without sacrificing speed, boosting productivity by 200% in white-simultaneous modes. Print up to 12 industry-standard 4’ x 8’ boards per hour, perfect for high-volume projects in Toronto’s bustling print sector.

Enhanced Stability and Safety

Equipped with a Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS), the JFX200-2513 EX automatically detects and resolves nozzle issues, minimizing downtime. Its flexible safety interfaces, including options for light curtains and safety mats, ensure compliance with Canadian workplace safety standards (e.g., Occupational Health and Safety Act). This makes it a reliable choice for print shops prioritizing operational efficiency and employee safety.

User-Friendly Design

A dual-zoned vacuum table and user-adjustable layout pins simplify media alignment, accommodating materials up to 2,500 x 1,300 mm (98.4” x 51.2”) and 50 mm thick. The foot pedal-controlled vacuum system enhances workflow efficiency, especially when handling large boards. Ethernet connectivity allows seamless integration into multi-printer setups, ideal for growing businesses in Toronto’s expanding print market.

Benefits for Canadian Businesses

The JFX200-2513 EX is tailored for Canada’s diverse print industry, from retail signage in Quebec to architectural displays in Toronto. Its ability to print on acrylics, PVC, glass, wood, and more opens up endless applications, including ADA-compliant signage and custom décor. The eco-friendly UV-LED inks, certified by GREENGUARD Gold, align with Canada’s stringent environmental regulations, ensuring safe use in schools and healthcare facilities. Plus, its compact footprint and low power consumption (25% less than traditional UV printers) make it a cost-effective solution for small to medium-sized print shops.
