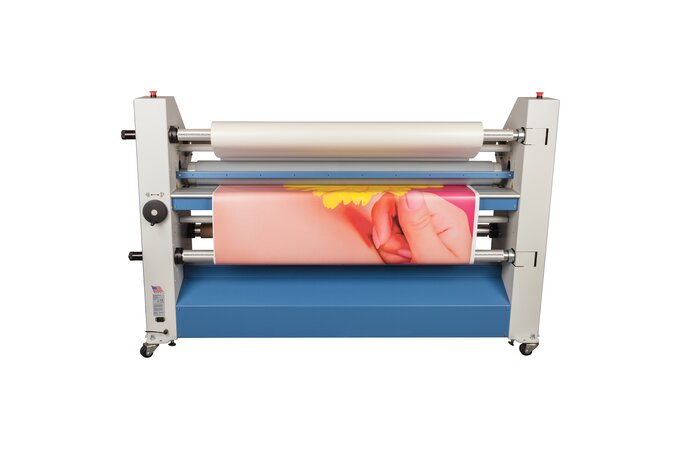

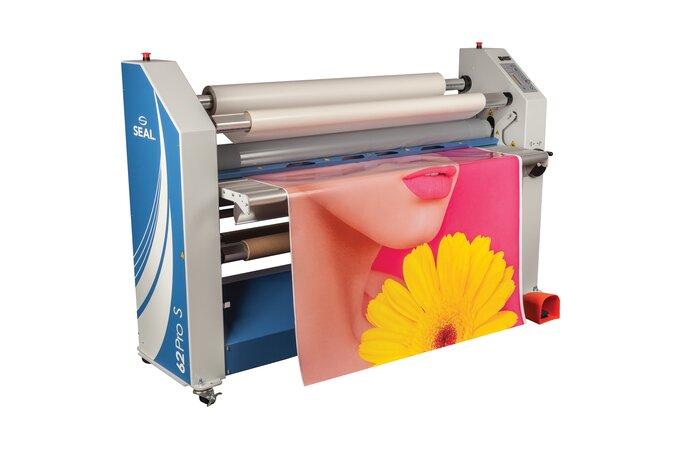

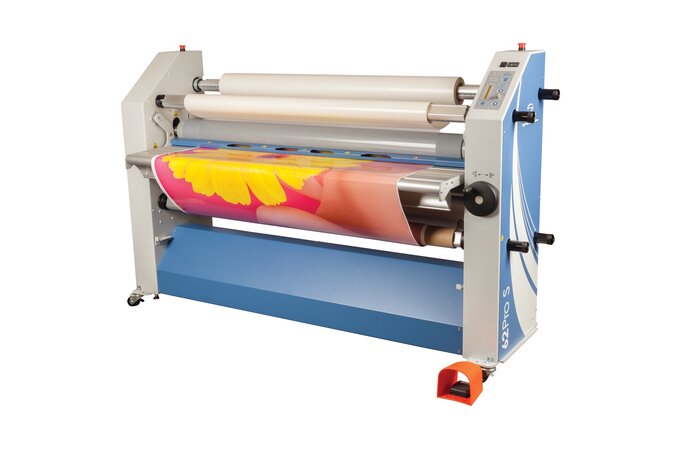

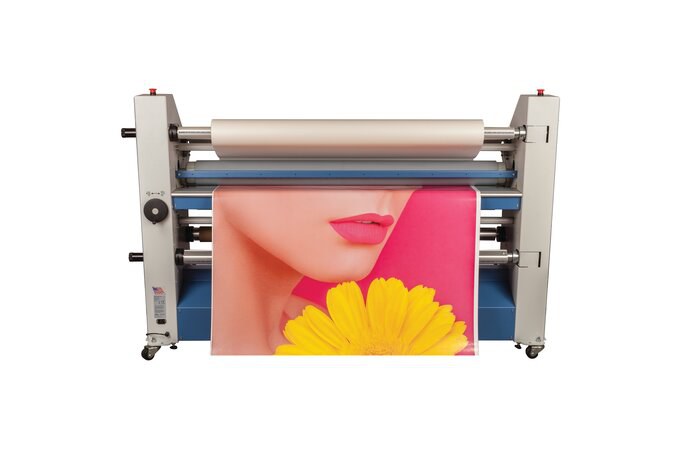

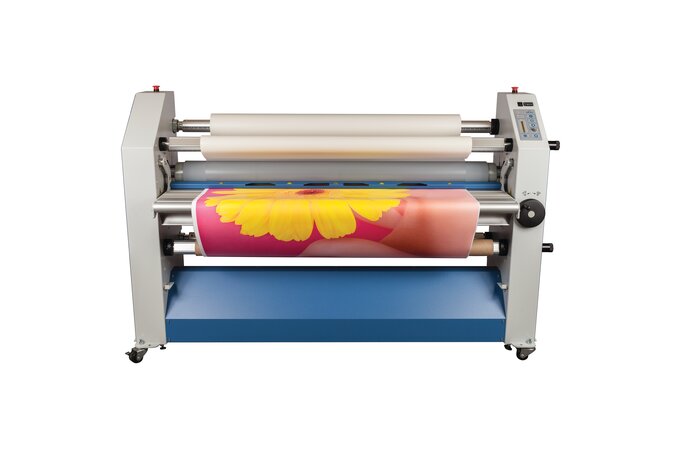

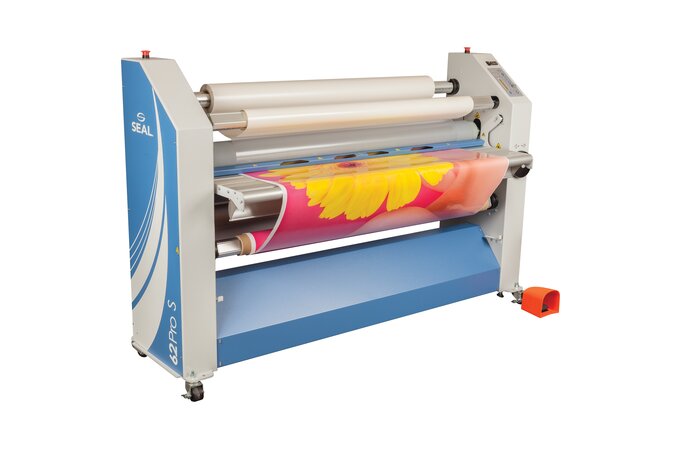

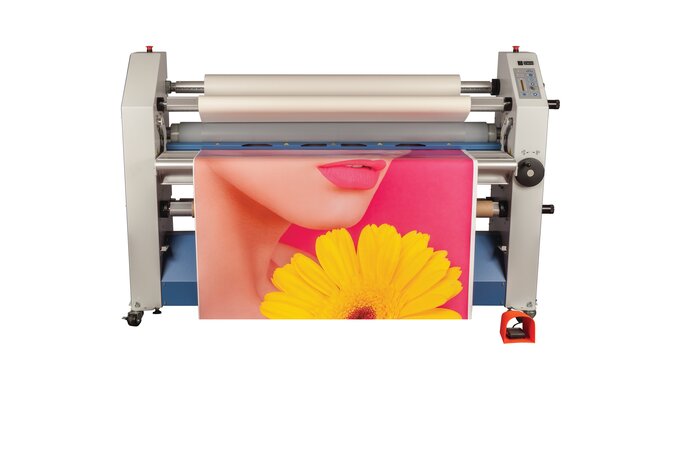

The SEAL 62 Pro S is a 61" wide mounting laminator and encapsulator offering industrial performance at exceptional value. With fully adjustable top roller temperature, speed and pressure settings, the 62 Pro S is ideal for the more experienced operator. The 62 Pro is also ETL Certified in the US/Canada.
- Heat assisted top roller for superb lamination performance
- Laminates graphics up to 61" wide
- Laminates graphics up to 61" wide
- Capable of laminating at speeds up to 20 feet/minute
- 1 1/2" manual nip adjustment allows for precise operation and accommodates most substrates
- Roll-to-roll operation (from bottom unwind) to accommodate applications including vehicle wraps
- 14.28 lbf/in (2.5n/mm) line pressure for superior cold lamination
- Lightweight drop-in supply shafts with auto-grip for easy loading of materials in tight spaces
- Auto-grip upper take-up shaft for winding release liners
- Exclusive ‘stay-put’ swing up feed table keeps table up, making media handling and set-up a snap
- Comprehensive safety system with emergency stops and self-checking safety eyes
- Foot switch for hands free operation
- Ergonomic touch pad control panel
- Included roll trough to keep rolled prints in place before and during lamination
- Optional easy-in feed table
Product Specifications
-
Laminator Type - Wide Format
-
Dimensions - 56.3" x 87.4" x 17.7"
-
Core Diameter - 3"
-
Laminating Speed - 20' per minute
-
Maximum Document Width - 61"
-
Film Type - Pressure Sensitive 3" Core Media and Films
-
Roll Length - 400'
-
Roll Width - 61"
-
Thickness (mil) - 3.5
-
Accessories Included - No
-
Cold Lamination - Yes
-
Thermal Lamination - Yes
-
Temperature Control - Yes
-
Net Weight - 850 lbs (386 kg)
-
Dated_Indicator - Undated
-
Material - Steel
