VoIP Intercom Devices - Algo 8028

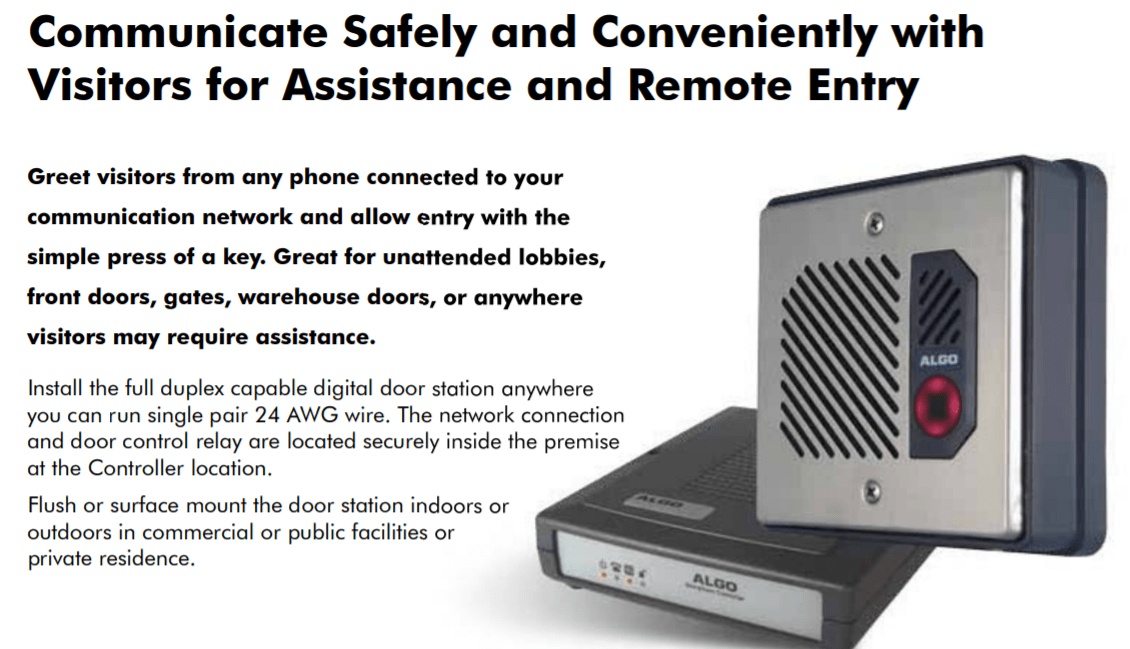

Communicate Safely and Conveniently with Visitors for Assistance and Remote Entry 8028 SIP Doorphone SIP SIP Endpoint with auto-provisioning capability Web interface for remote configuration Initiates or accepts calls Single Pair Digital Door Station Single pair 24 AWG wiring up to 1,000 Ft (300 m) from controller Flush or surface mount weather-resistant enclosure Full duplex capable Stainless steel or brass Backlit call button Security & Safety Door control relay located securely inside the premise at the Controller location Network connection not exposed outdoors CSA/UL approved for outdoor location Supervised link to door station Door Sensor & External Call Button Door sensor or call button input at controller or door station In-use or call button output at controller or door station Door control relay from controller with available 24 V 300 mA power Residential or Commercial FCC & CISPR22 Class B approval for residential use Single pair wiring for easy retrofit Equally suited for commercial, residential, or public facility Greet visitors from any phone connected to your communication network and allow entry with the simple press of a key. Great for unattended lobbies, front doors, gates, warehouse doors, or anywhere visitors may require assistance. Install the full duplex capable digital door station anywhere you can run single pair 24 AWG wire. The network connection and door control relay are located securely inside the premise at the Controller location. Flush or surface mount the door station indoors or outdoors in commercial or public facilities or private residence. Greet visitors from any phone connected to your communication network and allow entry with the simple press of a key. Great for unattended lobbies, front doors, gates, warehouse doors, or anywhere door station anywhere The network connection securely inside the premise indoors or facilities or Key Features Flush-Mounted 8028 SIP Doorphone using Brass Faceplate www.algosolutions.com Algo Communication Products Ltd., 4500 Beedie Street, Burnaby, BC Canada V5J 5L2 Sales & Support: 1-877-884-2546 (USA & Canada) or +1-604-454-3790; sales@algosolutions.com; support@algosolutions.com DC8028-01 July 2011 © Algo Communication Products Ltd. All rights reserved. Algo® is a registered trademark of Algo Communication Products Ltd. Note: Specifications are subject to change without notice. Some features may only be available in specific firmware or hardware releases. 8028 SIP Doorphone Compatibility SIP Configuration Web Interface or TFTP Auto-Provisioning Network Address DHCP or static IP address NAT* STUN Server or Keep-Alive * (Network Address Translation) Speech Full Duplex Capable Codec G.711 Physical Separate Controller and Door Station Controller Power AC Mains Adapter 95-230 V 50/60 Hz Included Indicators Power, Door Station Status, In-Use, Door Unlock Network Connection RJ45 Jack Installation Shelf or wall mounted Environmental Dry indoor location Door Control Connection 5 Position terminal strip Door Control Power Available 24 V, 300 mA Strike power +/- Door Control Relay Relay C, NO, NC phone keypad activated; Maximum 30 V, 1 A Door Station Connection RJ12 Jack Center Pair Door Station Wiring 24 AWG Twisted Pair to 1000 Ft (300 m) Auxiliary Input Connection RJ12 Jack Second Pair Auxiliary Input Electrical Detects dry contact closure 24 V 4 mA sensing current Auxiliary Input Functions Manual door release; Door control lockout; Door sensor NC (Default) or NO; Call button NC or NO; Disabled Auxiliary Output Connection RJ12 Jack Outside Pair Auxiliary Output Electrical Normally open switch 180 Ohms active; Maximum 30 V, 50 mA Auxiliary Output Functions In-Use (Default); Ringing; Call button pressed; Door unlock; Door open (requires door sensor); Door alarm (requires door sensor); Door sensor NC (Default) or NO; Follow Controller input; Follow Door Station input; Disabled Door Station Power Provided by Controller link Wiring Up to 1000 Ft (300 m) 24 AWG single twisted pair to controller Signalling Digital link - bi-directional voice and data Call Button Backlit tactile silicon rubber Connections 6 Position terminal strip - Controller, Aux In, Aux Out Installation Flush or surface mounted using supplied plastic bezel; Fits two gang electrical box Environmental NEMA 3R Rated for outdoor locations; Ambient temperature -30 to +60° C. Auxiliary Input Functions Door sensor NC or NO; Call button NC or NO (Default); Disabled Auxiliary Input Electrical Detects dry contact closure 5 V, 1 mA sensing current Auxiliary Output Functions In-Use; Ringing; Call button pressed (Default); Door/gate unlock; Door open (requires door sensor); Door alarm (requires door sensor); Door sensor NC (Default) or NO; Follow Controller input; Follow Door Station input; Disabled Auxiliary Output Electrical Normally open switch 180 Ohms active; Maximum 30 V, 50 mA Ordering Codes 8028 8028 Doorphone Kit. Includes Controller, Power Supply, Digital Door Station, Stainless Steel & Brass Faceplates, and 6 ft (2m) Network Cable. 8028V 8028 Vandal-Proof Doorphone Kit. Includes Controller, Power Supply, Digital Door Station, Vandal-Proof Faceplate, and 6 ft (2m) Network Cable. Specifications Single twisted pair to 1,000 ft Secure Door or Gate Control • Door Contact • Door Unlock • Door Disable • Activate Call • In-Use • Ring • Button Pressed • Door Unlocked 95-230 VAC Auxiliary Input Auxiliary Output Auxiliary Input Auxiliary Output • In-Use • Ring • Button Pressed • Gate Control • Door Alarm • Follow Controller Input • Door Contact • External Call Button Doorphone Controller Door Station • Door Open • Door Alarm • Follow Intercom Input Network Basic Diagram Stainless Steel Brass Vandal-Proof Door Station Faceplate Options Recess: 30mm (1.18”) All Dimensions without Surface Mount Bezel * 115mm (4.5”) 66m (2.6”) 86mm (3.4”) 110mm (4.3”) (without faceplate) 110mm (4.3”) (without faceplate) 115mm (4.5”) Door Station Dimensions For more information on the 8028 SIP Doorphone, please
