The CFX-2550 features advanced cutting and creasing capabilities, allowing you to work with a variety of materials.

Tangential Cutting (Cutting Pressure)

Provides precise adjustment of cutting pressure, capable of handling materials of various thicknesses.

Vacuum unit

Equipped with a robust vacuum system to keep light materials fixed during cutting, preventing unwanted movement or lifting.

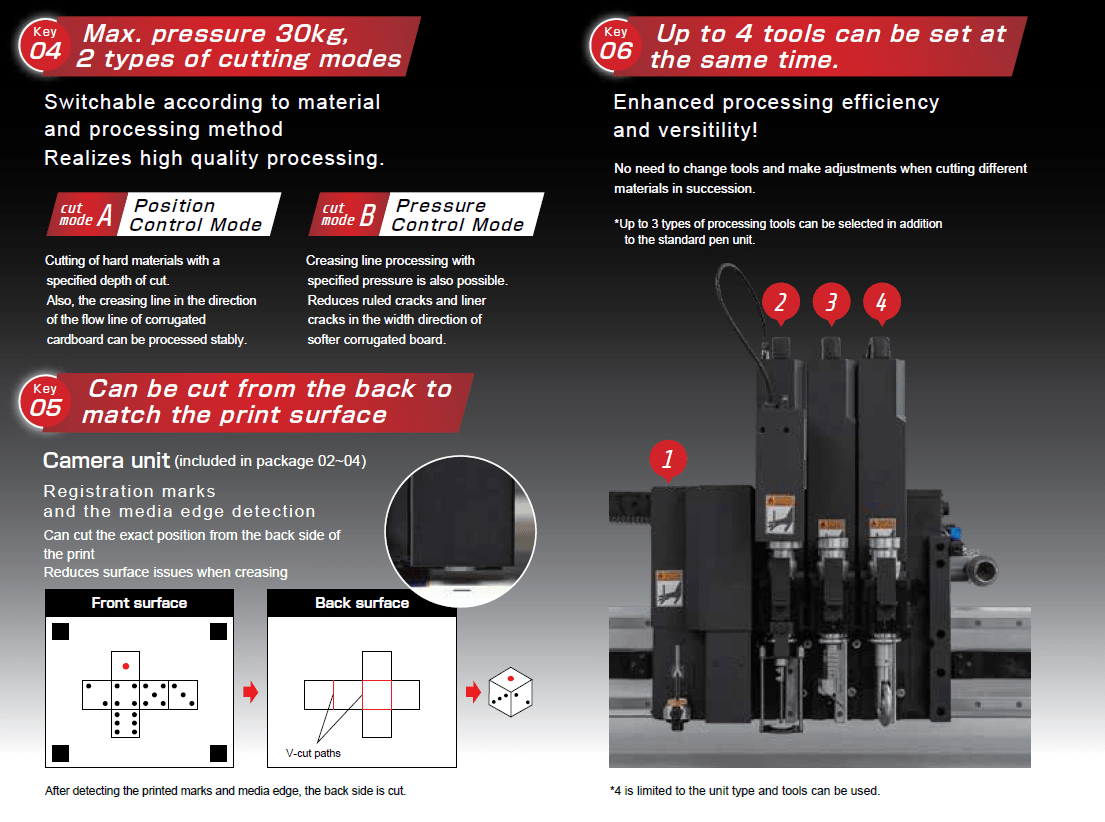

Multi-tool head reduces tool changes. Four tools can be used simultaneously, increasing machining variation and reducing the number of changes. In addition to the pen unit (eccentric cutter), three types of tools from a selection of nine varieties can be mounted on the head at the same time. Pen, reciprocating, V-cut, and creasing tools can be mounted simultaneously, increasing the possible variations and reducing the frequency of tool changes.

Pressure and position controls. Two types of controls are selectable:  a pressure control with a maximum of 30 kg (294 N), and a position control that enables high-quality cutting and ruled lining. The ball screw on the Z-axis allows pressures from 5 to 30 kg (49 to 294 N). The cutting process is performed in position-controlled mode, which enables high-quality cuts with less blade breakage over multiple cuts. Two processing modes can be selected for ruled lining:  pressure-controlled mode and position-controlled mode, depending on the material.

More accurate cutting. Based on the pre-measured flatness information of the table surface, the tool height is automatically adjusted according to the table position to reduce the occurrence of over-cutting and left-over cutting. It also reduces cutting into – and extends the life of – the cutting mat.

Backside cutting mode enables accurate cutting and ruled lining. The patent-pending backside cutting mode is available when combined with the optional camera unit. The system uses the camera unit to recognize registration marks printed on the surface and material edges, reverses the material, recognizes the edges, and applies corrections based on the data-specified locations for processing. It is useful for low-surface incision cuts and ruled lining cardboard, and for V-cuts to create seamless edges on fixtures.

Designed to pair with JFX UV-LED Series flatbed printers

Mimaki JFX600-2531

The CFX Series of flatbed cutters are ideally paired with a JFX Series printer for print then cut production of sign and graphics applications such as POP displays, labels/decals, signboards, event displays and fixtures, as well as folding cartons and cardboard processing, and other industrial cutting applications.
