Product Information

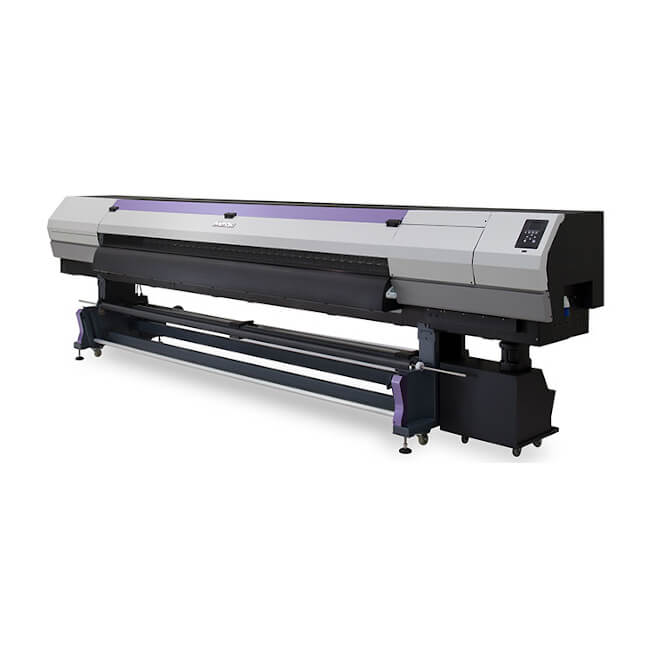

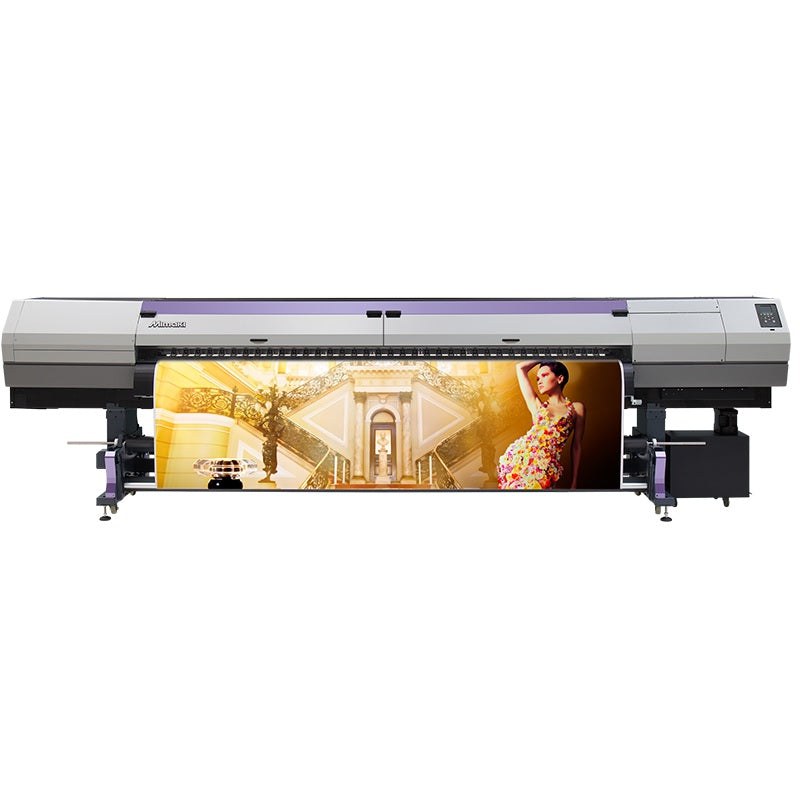

Brand New Mimaki SIJ-320 UV 128" Inch Superwide UV-LED Grand Format Roll to Roll Inkjet Printer
This superwide UV-LED printer is a high-performance printer developed using Mimaki’s inkjet technologies to guarantee reliable and efficient sign and banner printing. It can print on substrates up to 128” wide to create oversized graphics, or simultaneously onto two separate rolls of the same or varying widths. The SIJ-320 is ideal for producing banners, retail displays, wallpaper and more. High-speed printing, superior quality results, and fast drying times increase efficiency and minimize turnaround time.
Other benefits of this advanced banner printing machine include:
- 3.2 m-wide LED-UV inkjet printer
- LED-UV curing 3.2 m wide grand-format inkjet printer delivers high productivity (Maximum printing speed: 110 m2/h).
- Dedicated roll-to-roll inkjet printer for various signage media, including PVC and other banner materials.
- Mimaki’s superior print-image quality control technology
- Mimaki Advanced Pass System 4 (MAPS4) reduces banding and uneven color printing.
- Mimaki Fine Diffusion 1 (MFD1), a patented dithering tecnique, is incorporated in the Mimaki RIP RasterLink6 software.
- The “waveform control” technique ensures ink droplet landing accuracy.
-
Solutions for uninterrupted printing operations
- Nozzle check unit (NCU) automatically detects and cleans clogged nozzles. Moreover, the nozzle recovery system (NRS) uses only good nozzles as substitutes, if the clogged nozzles are not recovered after cleaning. These functions maintain constant printing and reduce waste printing due to defective nozzles.
-
Newly developed high-performance UV curing ink
- The high-performance LUS-120 UV ink is newly developed for SIJ-320UV and possesses durability and flexibility.
-
Simultaneous twin-roll printing enhances productivity
- Simultaneous printing on two rolls is possible. The maximum mountable media width is 1,524 mm for each role; this capability increases printing productivity.
Features
Anti-banding system—Mimaki Advanced Pass System (MAPS) 4
Mimaki’s unique MAPS3 anti-banding system has been improved to MAPS4.
Unwanted visible banding on the swath boundaries is reduced by overprinting between swaths with a reduced number of ink droplets.
High quality
New image-processing technique reduces tone jumps and uneven color printing
Mimaki Fine Diffusion 1 (MFD1) has been recently added to the bundled RasterLink6 RIP software. MFD1 reduces the noise that is generated in image data during image processing and enables the production of better print results without tone jumps or uneven colors.
Superior inkjet technology
Mimaki’s superior inkjet technology accurately places the ink droplets without losing their perfect circularity. This ensures that texts, lines, and edges are clearly and sharply printed.
Smooth-gradation printing
Various ink droplet sizes (large, medium, and small) are precisely placed and exhibit nongrainy, smooth, large-format printing. Dark and light color differences are clearly presented, even in high-speed mode, by utilizing the largest 36 pl droplet size.
Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS) ensure stable printing operation
The NCU detects and cleans clogged nozzles automatically. If clogging is not resolved after cleaning, the NRS selects substitute nozzles to continue the printing operation. These functions allow the printer to maintain productivity until a technician arrives.
Excellent performance
Efficient twin-roll simultaneous printing
A different print job can be printed on each roll simultaneously
Taking advantage of the 3,200-mm printing width, two media rolls can be mounted for simultaneous printing. Different print jobs (or the same print job) can be printed on two separate rolls. The user can select the preferred width separately for each roll, within a specified range (210 to 1,524 mm).
Simple media loading
Rolled media can be easily loaded because of a design improvement.
This improvement provides increased safety and reduces the time for preparation.
Easy media loading
Tension release device
Advanced media feeding mechanism
Newly designed pinch rollers are used for more accurate media transportation to provide high-quality printing.
Newly designed pinch rollers
LUS-120: Newly developed, high-performance UV curing ink
The newly developed, high-performance LUS-120 UV curing ink possesses superior durability and flexibility. These two opposite properties provide beautiful and durable printing on flexible banner materials that cannot be laminated.
High speed (4-color: C M Y K)
Super-draft mode allows rapid printing at a maximum printing speed of 110 m2/h. High-density print mode is available for front/backlit signage applications.
(The above print speed is the result of printing on 3.2m-wide media.)
Specifications
| Print head | Four staggered on-demand piezo heads | |||||||||||
| Print resolution | 300 dpi, 600 dpi, 900 dpi, and 1,200 dpi | |||||||||||
| Droplet size | Minimum: 7 pl Maximum: 36 pl | |||||||||||
| Head gap (Manual adjustment) |
1.7 mm / 1.9 mm / 2.6 mm / 3.3 mm (Distance between the platen and the print head) |
|||||||||||
| Ink | Type/Colour |
|
||||||||||
| Capacity | 1 liter ink bottle Ink can be filled up to 3 liters per ink container of the printer. |
|||||||||||
| Maximum print width | 3,200 mm (126 in) | |||||||||||
| Media | Maximum width | 3,250 mm (127.9 in) (Twin rolls printing with a small drive shaft: 1,524 mm (60 in) × 2) |
||||||||||
| Minimum width | 210 mm (8.2 in) | |||||||||||
| Thickness | 1.0 mm or less | |||||||||||
| Roll weight | Large drive shafts : 100 kg or less Small drive shaft with roll holders : 25 kg or less |
|||||||||||
| roll outer diameter | Large drive shafts : Φ250 mm or less Small drive shaft with roll holders : Φ180mm or less |
|||||||||||
| Power supply | AC 200–240V ± 10% 50/60Hz ±1 Hz, 15 A or less | |||||||||||
| Power consumption | 3.6 kW or less | |||||||||||
| Operational environment |
Temperature: 20 – 30 °C (68 – 86 °F) Humidity: 35–65 %Rh (No condensing) |
|||||||||||
| Weight | 850 kg (1873.9 lb) | |||||||||||
| Dimensions (W×D×H) | 5,410 mm × 995 mm × 1,440 mm (213 x 39.2 x 56.7 in) | |||||||||||
| Shipping dimensions (W×D×H) | 5,750 mm × 1,140 mm × 1,210 mm (226.4 x 44.9 x 47.6 in) | |||||||||||
