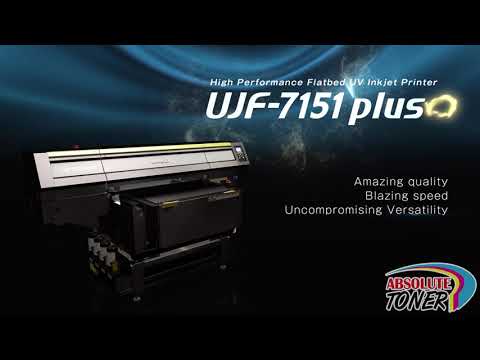

Brand New Mimaki UJF-7151 Plus Multipurpose High Performance UV-Led Flatbed Inkjet Printer

Features

Mechanical structure achieves high-precision printing

To improve precision, modifications applied are as follows.
To reduce printer unit vibration, the print table moves during printing instead of the Y-bar. Two ball screws are installed on both sides of the table to assist with its movement. In addition, four motor-driven legs are added beneath the table to maintain horizontality when the table is lifted or lowered.

High precision drop landing

Mimaki’s print technologies for achieving beautiful printing

Mimaki Advanced pass System 4 (MAPS4)

Generally, swath boundaries are straight lines. Therefore, a slight misalignment between boundaries causes banding or uneven color printing. MAPS4 reduces banding and uneven color printing with blurred boundaries similar to gradation printing.

---

---

MFD1—Mimaki Fine Diffusion 1

Dithering is an image processing technique, which transforms image data for inkjet printing. Pattern and error-diffusion dithering may, however, generate particular image noise resulting in uneven color printing or tone jumps, even on a high-performance printing unit.
The newly developed RasterLink 6 software,*1 incorporating the patented*2 image-processing MFD1, reduces noises due to dithering through hybrid processing of pattern- and error-diffusion dithering, thereby enhancing printing quality.
*1 MFD1 is available for Version 4.0 and higher
*2 Patent number / JPN: 5230816

Maximum 4.21m²/h* productivity

An array of six staggered printheads increases the printing speed and achieves top-level productivity in the same product category. The UJF-7151 plus supports effective production through high-speed printing at approximately twice the speed of previous models and approximately 2.6 times that of competitive models. Furthermore, by expanding the print area to 710 × 510 mm (28 × 20 in), it is possible to print at the size of 636 × 469 mm (25 × 18.5 in), which is often used for screen printing.
*Print conditions：600 × 600 dpi; 6 Pass

Reliable operating support package

Ink and media shortage, clogged nozzles, and other minor problems influence stable productivity.
The UJF-7151 plus fully supports continuous printing with reliable technologies.

New printhead’s ink-circulation system reduces clogging nozzles

The ink-circulation system in the head reduces ink settling and thus provides stable ink jetting. In addition, this system removes air bubbles, which plug the nozzle.. Thanks to this function, the nozzle-cleaning frequency is reduced, and accordingly, cost-effective stable printing is achieved.

Head Comparison

Self-recovery

---

MIMAKI's high-value added print with special color ink broadens the possibilities of business.

Ink settings

Metallic

The MMC (Mimaki Metallic Control) is the system dedicated to metallic printing using Mimaki's unique "Surface Imaging technology". The MMC printing technology that separately prints one type of metallic ink in gloss and matte tones.
Using separately the beautiful glossy tone print like mirror finish and the matte tone print of metallic texture with suppressed gloss feeling will expand the range of expressions. Texture expression with embossing effect can be printed by changing the inkjet concentration. The texture expression whose appearance changes according to the light reflection provides a higher level of performance appeal. Color metallic expression is possible by printing with colored ink on top of metallic ink. By combining the application of metallic, color and color metallic, high-quality design print can be available.

Clear

It is a clear ink that can give an additional value such as both gloss and matte tones, texture expression according to the application. UJF-7151 plus mounting system for clear print control, " MCC (Mimaki Clear Control)" allows the minimization of uncured time to prevent dust from sticking and to avoid bubble generating. It provides high-grade glossy representation and expressive embossing feeling with highly-concentrated clear to lead a fine and beautiful texture print.

Primer

It is an inkjet primer that improves the adhesion of materials such as resin, glass, metal and those surface-finished.
Expanding the range of material selection, high value added applications can be produced.

As the primer, PR-200 is applied simultaneously with color printing, the PR-200 applying only to the necessary part of material is possible, too.
Therefore the texture of the base material that was lost by conventional manual primer applying can be maintained.
