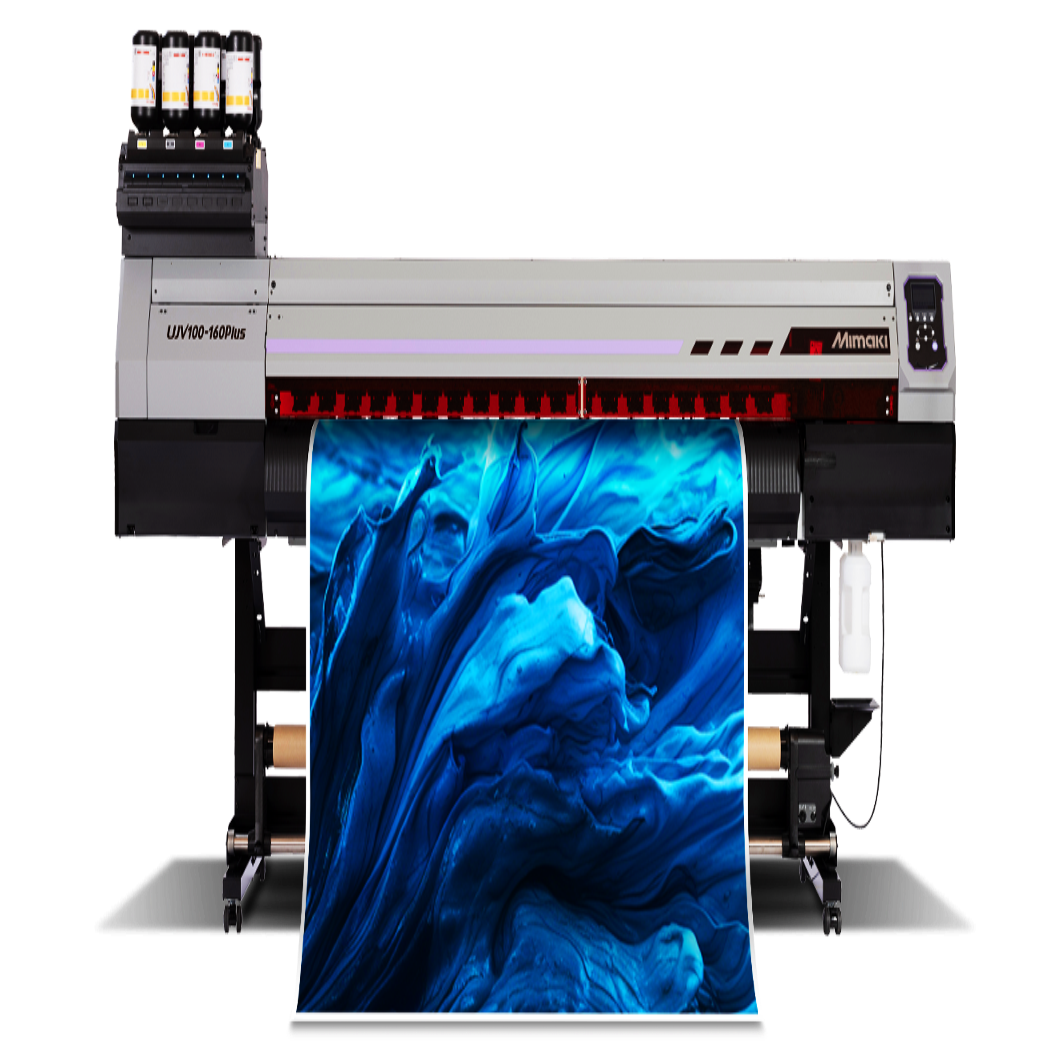

The UJV100-160 is equipped with the DAS, a function to automatically adjust the dot position and feeding amount that affect print quality.
When media or printing conditions are changed, an adjustment of ink dot position and media feed amount to suit is necessary.
As the DAS automatically performs these operations, printing can be performed without any labor or variations in adjustments by the operator.
Generally, swath boundaries are straight lines. Therefore, a slight misalignment between boundaries causes banding or uneven color printing. MAPS4 (Mimaki Advanced Pass System 4) reduces banding and uneven color printing with blurred boundaries similar to gradation printing.
MAPS ON
Banding and uneven color printing are reduced by scattering swath boundaries. Beautiful print image is obtained.
MAPS OFF
Bandings appear on swath boundaries. Print quality is remarkably degraded because banding is recognizable on each boundary.
NCU (Nozzle Check Unit) detects the status of nozzles automatically. When the NCU detects a missing nozzle, it automatically performs cleaning. If cleaning does not solve the problem, NRS (Nozzle Recovery System) automatically replaces the defective nozzles with other nozzles, which enables users to continue the print operations without waiting for a repair by a technician.
Because UV-curable ink is cured instantly by irradiating UV (ultraviolet) light immediately after printing, a drying process is not needed. Post-processing and sign applying are possible immediately after printing, which shortens production time and improves productivity, allowing you to promptly handle orders of short delivery time.
Print on a wide variety of materials, including not only PVC and tarpaulin but also paper with no acceptance layer, PET film, and fabric, is enabled. Value-added print such as two-layer print, in which white ink is used for transparent PET film, and varnish print using clear ink, can also be handled.
Print head | On-demand piezo head (2 staggered layout) | |||||
Print resolution | 360 dpi, 720 dpi, 900 dpi, 1200 dpi | |||||
Ink | Type/Colour |
|
||||
Capacity | 1L bottle | |||||
Maximum print width | 1,610 mm (63.4 in) | |||||
Media | Maximum width | 1,620 mm (63.8 in) | ||||
Thickness | 1 mm or lower | |||||
Roll weight | 45 kg or less | |||||
roll diameter | φ250 mm or less | |||||
Power supply | AC 200–240V ± 10% 50/60Hz ±1 Hz, 15 A or less | |||||
Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, ENERGY STAR®, RCM, EAC |
|||||
Operational environment | Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (Non condensing) |
|||||
Weight | 167 kg (368.2 lb) | |||||
Dimensions (W×D×H) | 2,775 x 700 x 1,475 mm (109.3 x 27.6 x 58.1 in) | |||||
Interface | USB2.0 / Ethernet 1000BASE-T |
