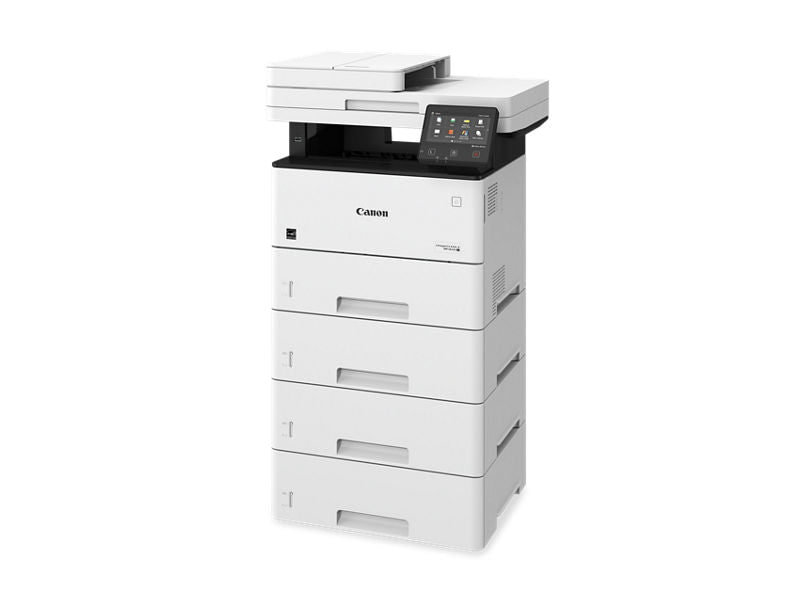

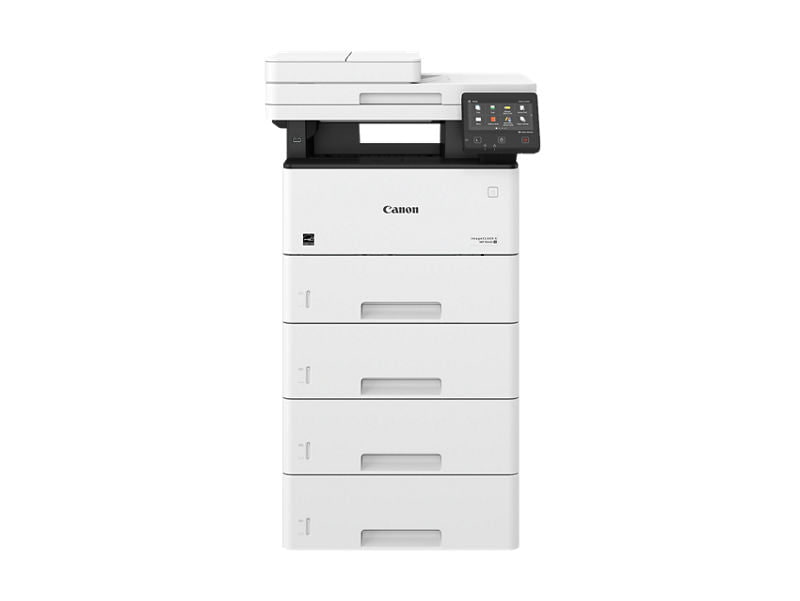

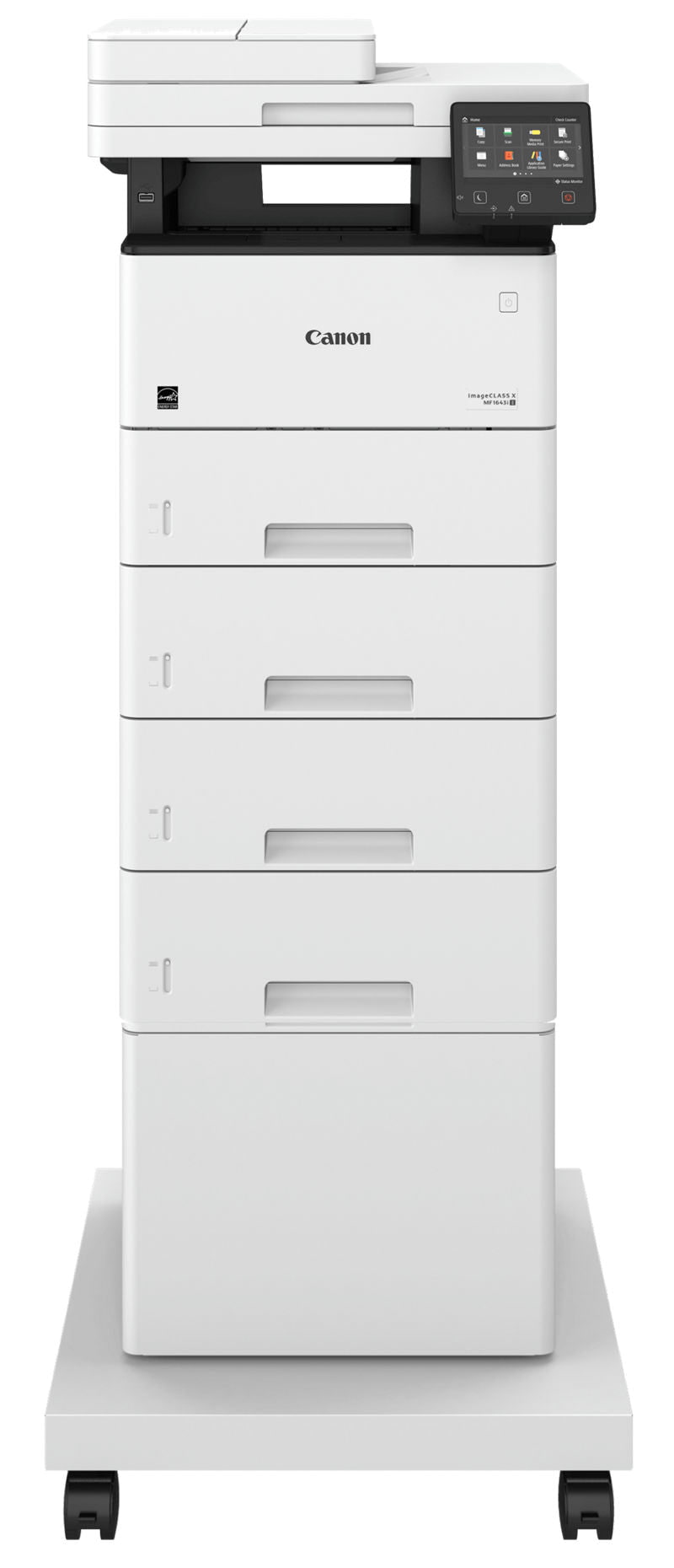

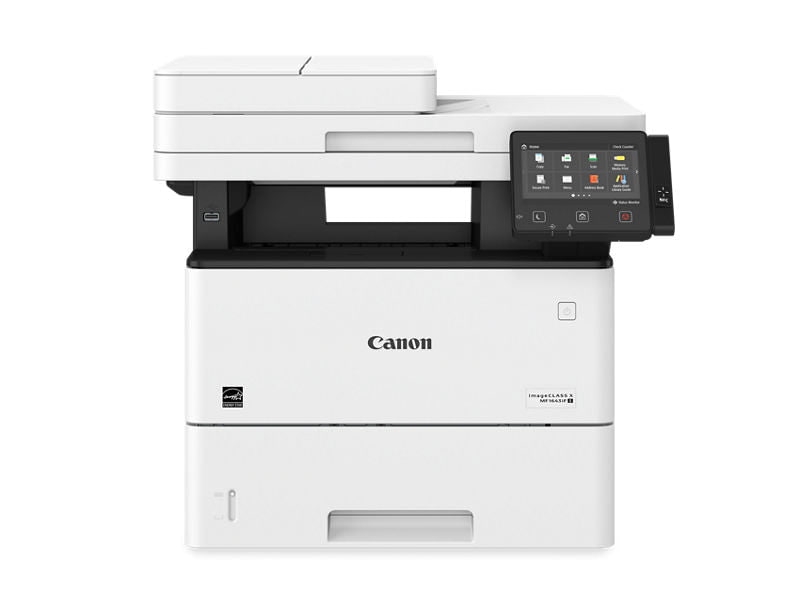

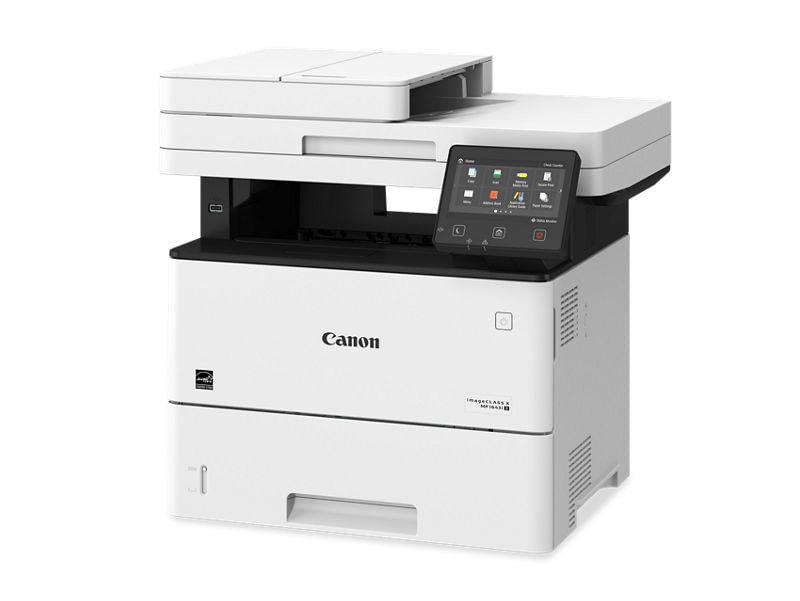

Designed for small- to mid-size workgroups within an office or home environments used as part of an organization's print fleet, the Canon imageCLASS X MF1643i II printer offers speedy performance, minimal maintenance, and the ability to expand paper capacity for busy groups. Print, copy, scan, and fax capabilities help you accomplish necessary tasks with just one machine. Delivering an intuitive user experience, the 7" color touchscreen can be customized to simplify many daily tasks.
MANAGE OUTPUT WITH uniFLOW Online
The optional uniFLOW Online offers a cloud-based printing, scanning, and accounting solution that's easy to configure and has the latest security features. The solution extends the standard functionality provided by uniFLOW Online Express by adding My Print and Scan Anywhere, mobile printing, and more, to support users whether they're in the office or at home.
FLEET MANAGEMENT TOOLS
imageWARE Enterprise Management Console can be used by a device administrator to centrally manage the Canon printer fleet, including consumables, status notifications, meters, and configuration settings. imageWARE Remote software allows for the service provider to manage devices proactively, including remote diagnosis and reporting. Local Content Delivery System facilitates remote firmware download at the device level.
FAST, SINGLE-PASS DUPLEX SCANNING
The imageCLASS X MF1643 II Series leverages a singlepass document feeder for two-sided scanning at up to 70 images per minute (ipm) in black and white or 26 ipm in color. Scanned files can be converted into multiple file formats, including Hi-Compression PDF and Searchable PDF (OCR).








Print Specifications
Print Resolution (dpi)
600 x 600
Copy Specifications
First-Copy-Out Time (Letter)
Approx. 6.0 seconds
Copy Resolution (dpi)
600 x 600
Multiple Copies
Up to 999
Magnification
25%-400% (1% Increments)
Preset Reduction/Enlargement:
25%, 50%, 64%, 78%, 100% (1:1), 129%, 200%, 400%
Print Speed (Color)
Up to 45 ppm (Letter); Up to 36 ppm (Legal)
Dimensions (W x D x H)
MF1643iF II: 19-7/16” x 18-5/16” x 17-3/16”
(494 mm x 465 mm x 452 mm)
MF1643i II: 8-7/8” x 15-5/16” x 17-13/16”
(480 mm x 465 mm x 452 mm
Installation Space (W x D)
MF1643i II: 27-3/8" x 43-1/2" (694 x 1105 mm)*
MF1643iF II: 27-7/8" x 43-1/2" (708 x 1105 mm)*
Weight
Approx. 41.9 lb. (19.0 kg)
Warm-up Time
From Power On: Approx. 14 Seconds or less
From Sleep Mode: Approx. 4 Seconds or less
