New GCC AR-24 23.6" Inch Small Vinyl Cutter With Guaranteed 1 Meter Tracking

Please Contact Us To Order 905-326-2886 or email: info (at) absolutetoner.com

Product Information

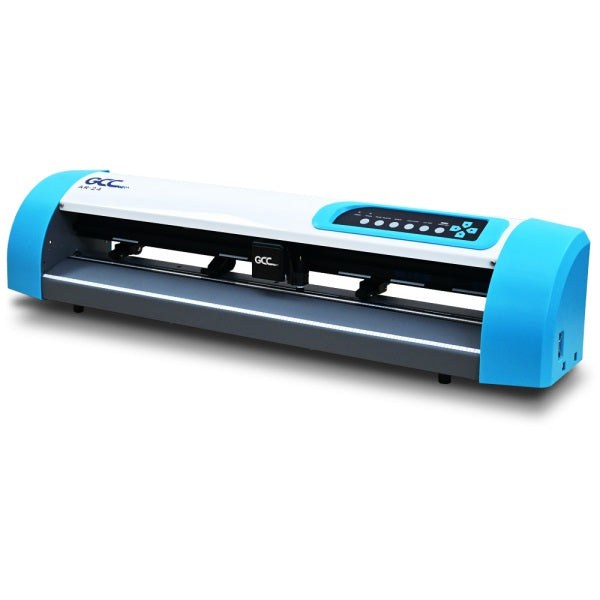

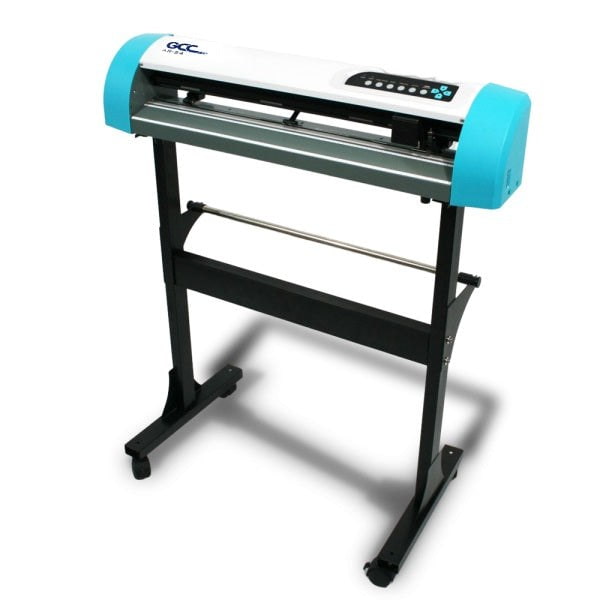

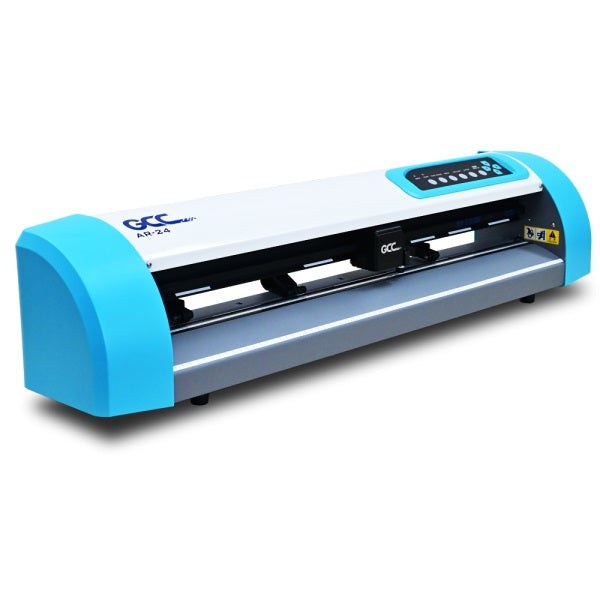

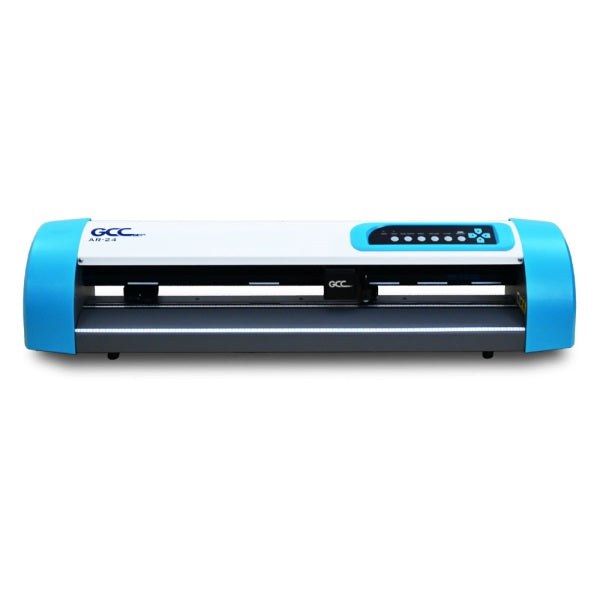

New GCC AR-24 23.6" Inch Small Vinyl Cutter With Guaranteed 1 Meter Tracking

The best choice in a beginner cutting plotter. With the possession of a posh style, AR-24 performs perfectly in cutting with its optimized cutting speed and force. AR-24 leads to a stunning cutting quality, yet it is priced at a startup level and is worthy of return on investment.

Specifications

  • Operational Method - Roller-Type
  • Max. Cutting Width - 600mm (23.6 in.)
  • Max. Cutting Length - 50m (164')
  • Max. Media Loading Width - 71.9cm (28.3 in.)
  • Number of Pinch Rollers - 3
  • Acceptable Material Thickness - 0.8mm (0.03 in.)
  • Drive Motor - Stepper motor
  • Max. Cutting Force - 250 g
  • Max. Cutting Speed - 552 mm /sec (21.7 ips) (at 45° direction)
  • Offset - 0~1.0 mm (with an increase of 0.025mm)
  • Memory Buffer - 32 MB
  • Interfaces - USB 2.0 (Full Speed), Serial (RS-232C)
  • Type of Command - HP-GL, HP-GL/2
  • Mechanical Resolution - 0.012 mm
  • Software Resolution - 0.025 mm
  • Distance Accuracy - ±0.254 mm or ±0.1% of move, whichever is greater
  • Repeatability - ±0.1mm
  • Guaranteed Tracking - 1M
  • Automatic-Aligning System(AAS II) - N/A
  • Over Cut - N/A
  • Curve & Arc Smoothing - Yes
  • Configurable Origin - Yes
  • Test Cut Capability - Yes
  • Tangential Mode - N/A
  • Repeat - Yes
  • Copy - N/A
  • Diameter of Blade - 2.5 mm
  • Control Keys - 10 Control keys and 2 LED
  • Power Supply - AC adapter, 24V DC (1.67A)
  • Power Consumption - Max. 40 W
  • Operation Temperature - 15° C~30° C / 60°F~86° F
  • Operation Humidity - 25%~75%

      Features

      Superior Functionality
      GCC AR-24 is built to achieve the optimized cutting abilities with the maximum of 15.7ips (400 mm/sec) cutting speed and 250 grams cutting force; moreover, the cutting width of up to 23.6" support a wide range of applications.
      Guarantee 1 meter Tracking
      GCC AR-24 is equipped with a stable drum that can guarantee 1 meter tracking to ensure quality outputs and saves you from wasted material and cost.
      Dual Port Connectivity
      GCC AR-24 supports dual-port connectivity with USB and serial ports. The USB port provides faster data transmission between the computer and GCC AR-24. Dual-port connectivity provides sign makers with great flexibility for data transmission.
      User-friendly Interface
      In addition to an ease of use control panel, AR-24 offers the special VLCD software, which provides a simple and intuitive workflow for users of all levels.
      Windows Drivers
      GCC AR-24 includes a “one click” Windows driver that allows sign makers to edit signs from CorelDraw and output directly to AR-24. It is very simple and easy to make signs with AR-24.
