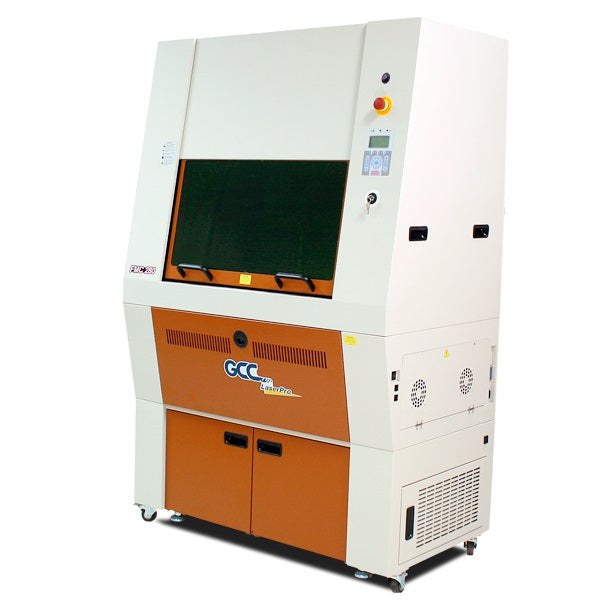

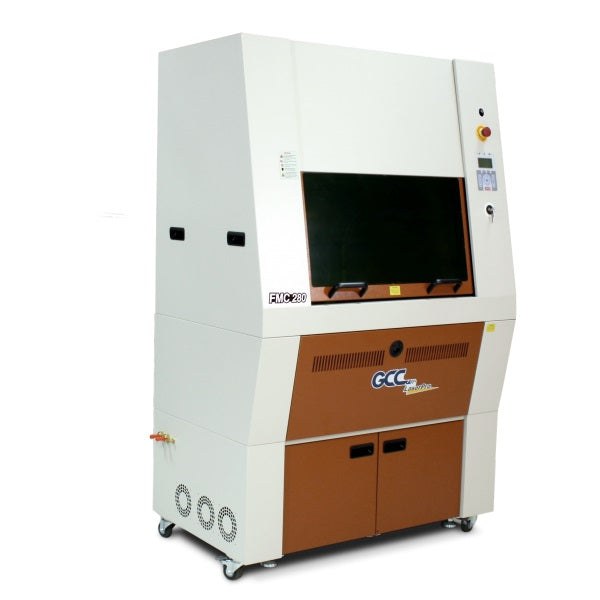

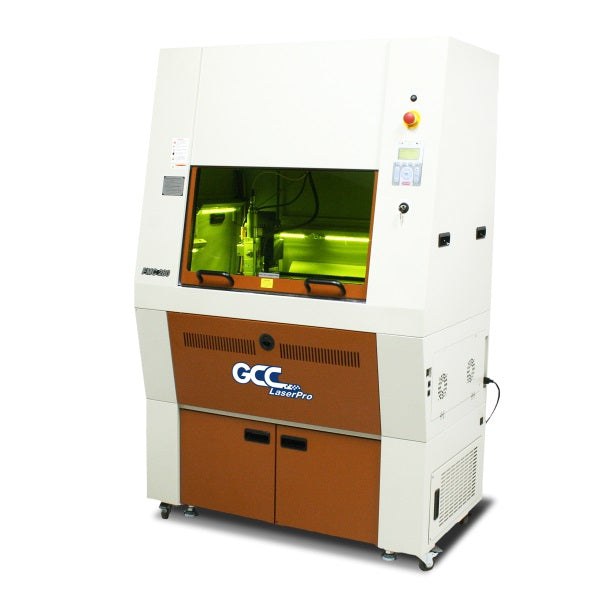

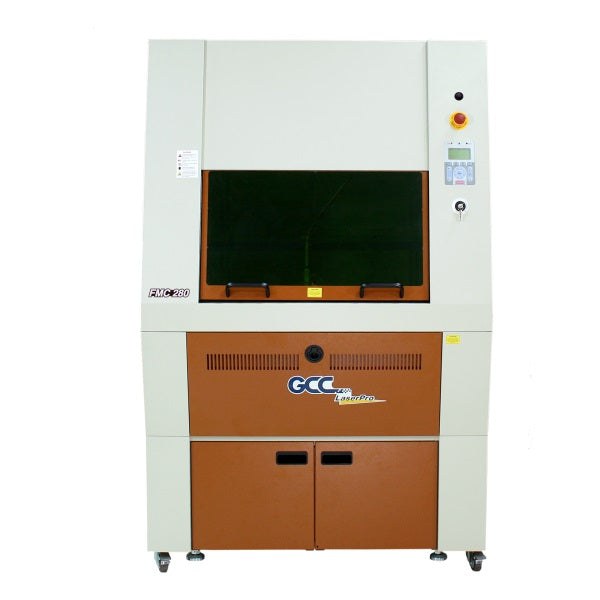

New GCC Laser Pro FMC 280 1.5KW Fiber Laser Cutter Machine With Unique Fiber Laser Source with Exquisite Cutting Capability

Specifications

• Laser Source - 1070nm fiber laser source, 1.5kW peak power
• Work Area
  • Normal - 712 x 370 mm (28 x 14.5in.)
  • With Thin Film Clamp - 458 x 305 mm (18 x 12 in.)
• Part Size (L x W x H) - 786 x 542 x 120 mm (30.9 x 21.3 x 4.7 in.)
• Dimensions - 1125 x 720 x 1800 mm (44.3 x 28.3 x 70.8 in.)
• Cooling - Air Cool
• Drive - Closed-loop DC Servo Control
• Maximum Motor Speed - 20 IPS
• Speed Control - Adjustable from 0.1~100% (Up to 16 color-linked speed settings per job)
• Power Control - Adjustable from 0~100% (Up to 16 color-linked power settings per job)
• Distance Accuracy - 0.254 mm or 0.1% of move, whichever is greater
• Z-Axis Movement - Automatic
• Engraving Capability) - 256-level grayscale image processing capability
• Resolution (DPI) - 125, 250, 300, 380, 500, 600, 760, 1000, 1500, 3000
• Interface - 10 Base-T Ethernet, USB Type-A 2.0 – For USB storage (Max. 32GB capacity, FAT file system), USB Type-B 2.0  – For connecting with the computer
• Display Panel - 4-line LCD panel showing current file name, total working time, laser power, cutting speed, file(s) loaded into memory buffer, setup and diagnostic menus LCD
• Safety - Class I Laser Product Compliant with EN60825, Class II Laser Product Compliant with CDRH, 2006/42/EC Machinery Directive Compliance

Features

Unique Fiber Laser Source with Exquisite Cutting Capability

World leading fiber laser source with unique laser firing mode control meets variety metal sheets processing demand. Powerful cutting capability to handle up to 3mm thick stainless steel and high reflective metals (aluminum, copper) with clear edge now possible.

Capacitive Cutting Head with Autofocus

Precise Capacitor Cutting Head keeps consistent focal distance between cutting head and heat deformed material to obtain consistent cutting quality over the platform. The non-contact cutting procedure prevents scratch on the materials to create clean cutting edge.

RoHS Compliance

All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.

Drag-N-Play

The "Drag-N-Play" feature greatly reduces complex set up procedures and allows users to directly drag the lens carriage to the starting point of a job.

DuraGuide™ Motion Design

Systematic and reliable motion system embedded with strong mechanical framework, reinforced Kevlar belts, and accurate servomotor control technology to deliver superb output quality. SmartSEAL™ dust protection design to keep dust from the motion system to reduce daily maintenance and prolong rail’s life cycle.

Closed-loop DC Servo Technology

A Closed-loop DC servo motor can deliver greater continuous shaft power at higher speeds than a stepper of the same frame size. In addition, It can also give far greater accuracy due to closed-loop position feedback and the continuous movement, instead of constant stopping and starting. GCC LaserPro high speed closed-loop DC servo motor technology guarantees precise and fast carriage movement with exceptionally accurate outputs.

Automatic Table to Load up to 120 mm (4.7") Thick Objects

The automatic table movement can allow to load thick working objects and diversify the application possibility.

Built-In Networking Connection

Network connection enables multiple laser engravers to be operated by one PC and multiple PCs to share a single unit of laser engraver. The Ethernet port has made data transmission easier and faster for GCC LaserPro users using network connection. Free your designers with great flexibility and maximum machine versatility.

Programmable Origin Modes

Easy-to-use multiple position modes allow the operators an effortless way to setup a job with Drag-N- Play. Repetitive workflows can be drastically simplified by relocating the origin position to any desired location.

Intuitive Control Panel Interface

A user-friendly menu-driven interface system simplifies complex tasks. Hot keys design and job status display facilitates your work and makes it clear and easy to carry out.

Innovative Windows Driver

Directly output from familiar designing software like Illustrator, CorelDraw, AutoCad through GCC LaserPro Windows driver. The innovative driver featuring powerful functions, such as SmartCENTER, Bridge Cutting, Drill, and more to reduce set up time and make easy adjustments to achieve marvelous output quality.

Collecting Drawer

It is a convenient design for users to collect completed workpieces and clean scrap easily.

SmartLIGHT

Built-in LED light module illuminates the working space and makes every detail easy to see.

Key Switch & Emergency Stop

Key switch safeguards the machine from unauthorized use. Prominent emergency button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a safe operating environment.

Bridge Cutting

Bridge Cutting function diversifies the laser cutting into packaging prototyping and fulfill versatile requirements. Define the cutting gap to create the dashed line effect from user friendly print driver interface.
