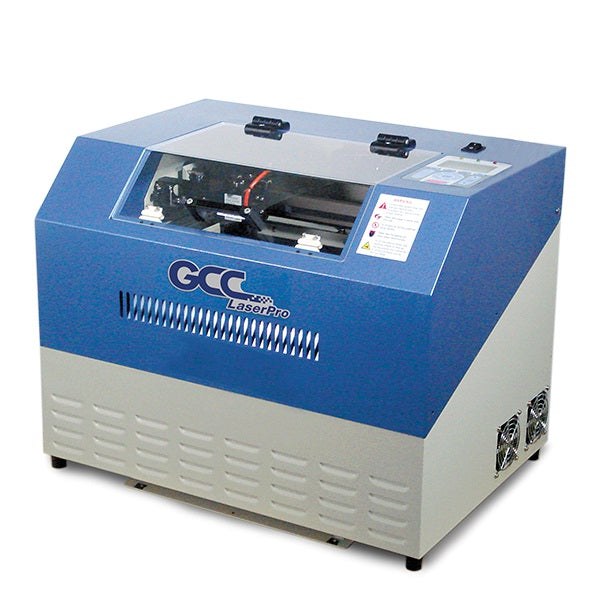

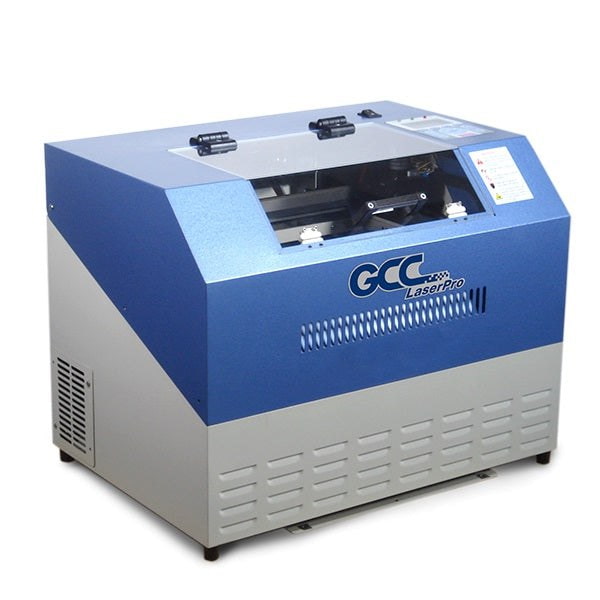

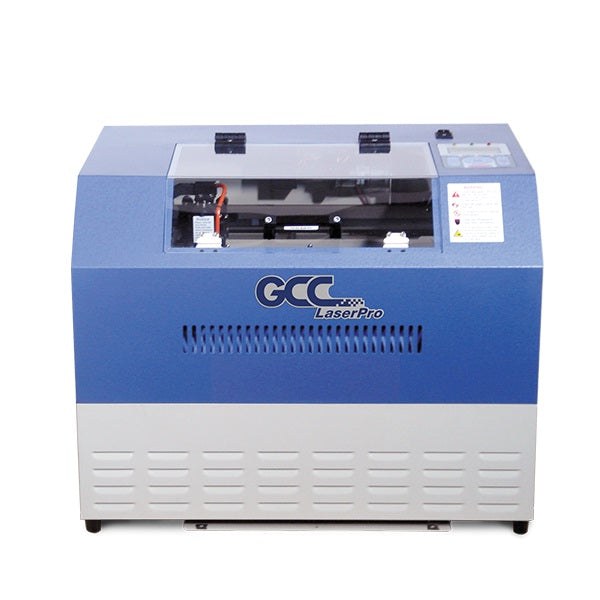

New GCC LaserPro Venus II 12W (VII-12) CO2 Desktop Laser Engraver With Unique Design Down Vacuum Table

New GCC LaserPro Venus II 12W (VII-12) CO2 Desktop Laser Engraver With Unique Design Down Vacuum Table

GCC LaserPro Venus II is not only the most compact CO2 desktop laser engraver but also comes with easy-to-use interfaces.Use the Windows-based software to make fine pitch-based adjustments in laser engraving flat, convex or concave surfaces. Venus II desktop laser engraver is also the perfect choice for stamp making.

Specifications

• Laser Source - 12W Sealed CO2 Laser

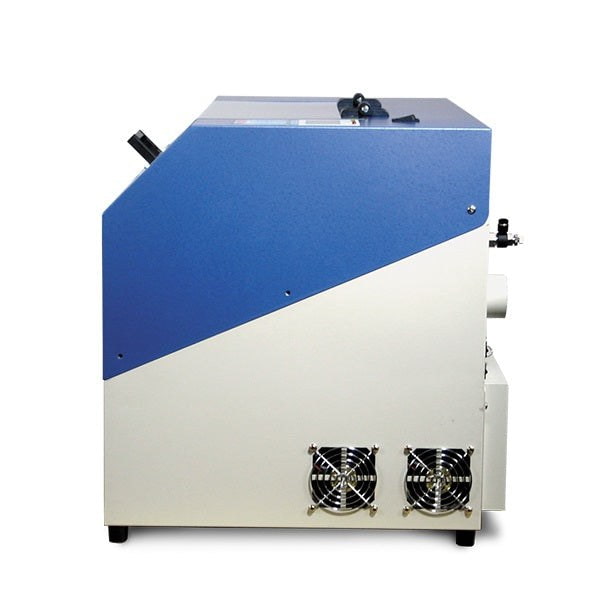

• Cooling - Air-cooled, Operating environment temperature 15°-30°C (60°-86°F)
• Work Area - 300 x 210 mm (11.8 x8.3 in.)
• Max.Part Size (L x W x H) - 360 x 300 x 70 mm (14.2 x 11.8 x 2.8 in.)
• Dimensions - 610 x 435 x 460 mm (24.4 x 17.1 x 18.1 in.)
• Weight - 32 Kg / 70 lb
• Drive - Closed-loop DC Servo Control
• Maximum Speed - 20 IPS
• Speed Control - Adjustable from 0.1 to 100% (Up to 16 color-linked speed settings per job)
• Power Control - Adjustable from 0-100% (Up to 16 color-linked power settings per job)
• Engraving Capability - 256-level gray scale image processing capability
• Distance Accuracy - 0.254mm or 0.1% of move, whichever is greater
• Z-Axis Movement - Automatic
• Focus Lens - Standard 1.5", optional 2.0" available
• Resolution (DPI) - Available 200, 250, 300, 500, 600, 1000

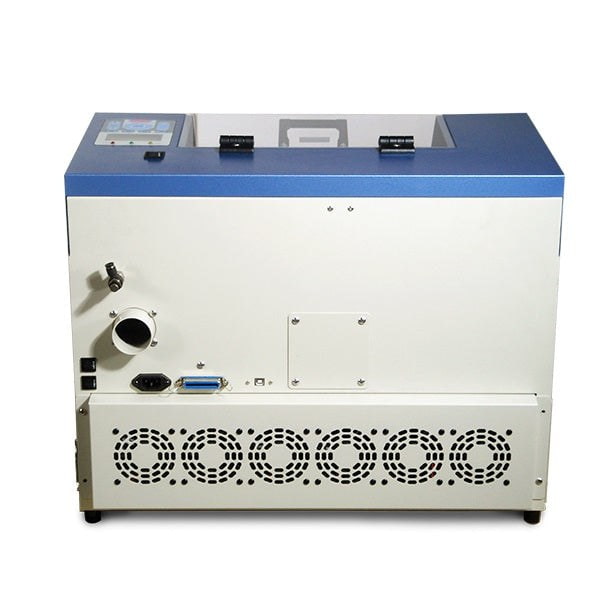

• Interface - 10 Base-T Ethernet USB Type-A 2.0 – For USB storage (Max. 32GB capacity, FAT file system), USB Type-B 2.0 – For connecting with the computer
• Compatible Operating Systems - MS Windows
• Display Panel - 4-line LCD panel showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus.
• Safety - Class I Laser Product Compliant with EN60825, Class II Laser Product Compliant with CDRH

Features

Drag-N-Play

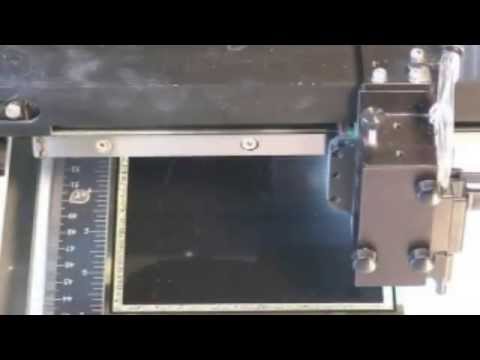

An exceptionally innovative and user-friendly feature based on servomotor technology simplifies operations and shortens setup time. Simply hand drag the lens carriage of Venus II desktop laser engraver to the desired position to be engraved and press the start button to commence the job.

AutoFocus (Patented)

Patented Auto Focus Gauge adjusts Venus II desktop laser engraver to a precise focal point on the engraving area automatically. The Auto Focus is the most effective lens-focusing tool that prevents human error when exact measurement of the distance from the surface of the working material is needed.

Unique Feature for Making Stamps

The 2" diameter hole is provided for rubber stamps with a longer body. The size of this pit fits your stamp sample perfectly. Just position the stamp stick into the hole of Venus II desktop laser engraver, the longer stamp can be made with ease.

User-Friendly Interface

GCC LaserPro windows-based driver provides powerful function settings, such as laser engraving mode, programmable origin, various dithering types, and more to meet users' specific needs.

Special Fire Retardant Material

The flexible right and left table shields are designed to coordinate the up-down Z rail. These two shields isolate the airflow in the middle of the working table to reduce the possible damage caused by the heat during laser engraving.

RoHS Compliance

All GCC laser engravers are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide eco-friendly products to protect the earth for our further generations.

Windows-based Driver

Windows-based drivers offer plenty of functionality, including pitch tuning to adjust for a vertical profile for each character during stamp laser engraving.

Precise Closed-loop DC Servo Motor

The Venus II desktop laser engraver utilizes high-speed Closed-loop DC servo motors to shorten the overall laser engraving time while maintaining excellent process quality.

Unique Design Down Vacuum Table

A4 size working table and the unique dust collecting mechanism allows the full table rubber stamp to be engraved and debris to be gathered easily all at once.

Built-In Networking Connection

Network connection enables multiple laser engravers to be operated by one PC and multiple PCs to share a single unit of laser engraver. The Ethernet port has made data transmission easier and faster for GCC LaserPro users using network connection. Free your designers with great flexibility and maximum machine versatility.
