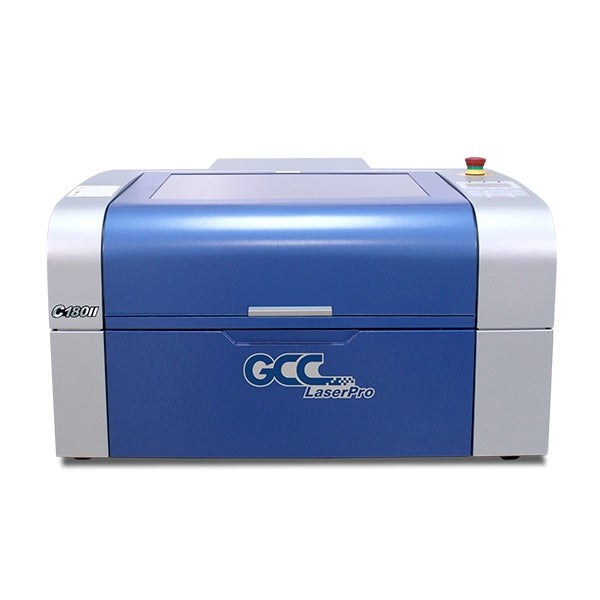

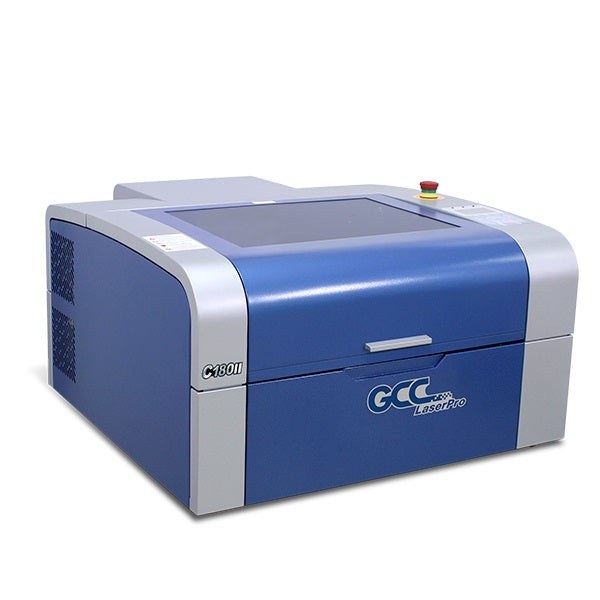

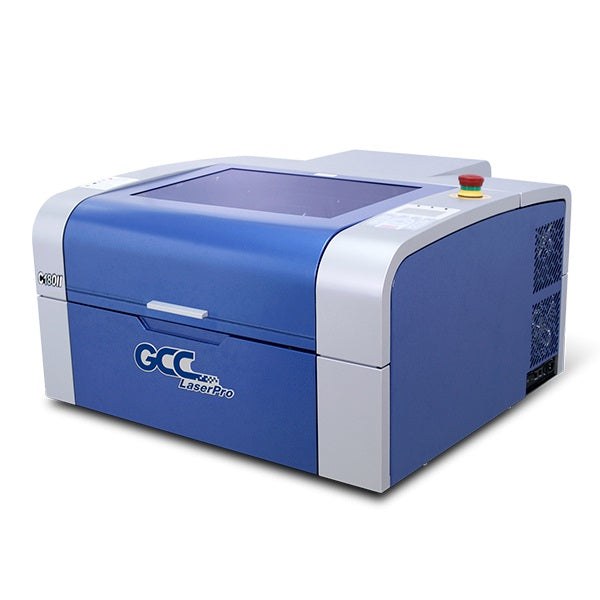

New GCC C180II 12-40W CO2 Desktop Laser Engraver With Bridge Cutting And Dust Protection Design

Specifications

• Work Area - 18 x 12 in. (458 x 305 mm)
• Part Size (L x W x H) - 19.8 x 12.2 x 6 in. (503 x 310 x 152.4 mm)
• Table Size - 20.4 x 14.7 in. (520 x 375 mm)
• Dimensions - 30.7 x 29.1 x 16.1 in. (780 x 740 x 410 mm)
• Laser Source - 12 to 40Watt Sealed CO2 Laser
• Cooling - Air-cooled, Operating environment temperature 15°- 30°C (60°- 86°F)
• Drive - Closed-loop DC Servo Control
• Maximum Motor Speed - 40 IPS
• Speed Control - Adjustable from 0.1-100% (Up to 16 color-linked speed settings per job)
• Power Control - Adjustable from 0-100% (Up to 16 color-linked power settings per job)
• Engraving Capability - 256-level gray scale image processing capability
• Distance Accuracy - 0.254 mm or 0.1% of move, whichever is greater
• Z-Axis Movement - Automatic
• Focus Lens - Standard 2.0", optional 1.5" available
• Resolution (DPI) - Available 125, 250, 300, 380, 500, 600, 760, 1000
• Interface - 10 Base-T Ethernet, USB Type-A 2.0 – For USB storage (Max. 32GB capacity, FAT file system), USB Type-B 2.0  – For connecting with the computer
• Compatible Operating Systems - MS Windows
• Display Panel - 4-line LCD display showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus
• Safety - Class I Laser Product Compliant with EN60825, Class II Laser Product Compliant with CDRH, 2006/42/EC Machinery Directive Compliance

Features

Closed-loop DC Servo Motor and Reliable Motion System

The C180II laser engraver utilizes high performance Closed-loop DC servo motors for precise and fast carriage movement combined with a reliable motion system to produce exceptionally accurate outputs.

TrueImage (Patented)

The patented TrueImage function employs a uniquely designed laser firing algorithm that presents its most vivid form when laser engraving images.

Open Front Door Design

The C180II desktop laser engraver top cover coupled with the front door open design allows easy loading of working pieces.

Drag-N-Play

An exceptionally innovative and user-friendly feature based on servomotor technology simplifies operations and shortens setup time. Simply hand drag the lens carriage of the laser engraver to the desired position to be engraved and press the start button to commence the job.

RoHS Compliance

All GCC laser engravers are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide eco-friendly products to protect the earth for our further generations.

Simple and Intuitive Control Panel

A user-friendly menu-driven interface system simplifies the operation of C180II desktop laser engraver. Hot keys design and job status display facilitates your work and makes it clear and easy to carry out.

SmartPIN™ AutoFocus (Patented)

The plug-and-play probe design makes focusing a one-touch process and provides the accuracy and precision required for optimum quality even when laser engraving on transparent materials.

Dust Protection Design (Patented)

Dust protection covers around working table to provide marvelous exhaust vacuum together with Smart Vacuum design, and prevention dust accumulated on laser engraving system.

Programmable Origin Modes

Easy to use position modes allow the operator an effortless way to setup a job for laser engraving. Repetitive workflows can be drastically simplified by relocating the origin position to any desired location.

Internal LED Lighting

Internal LED lighting illuminates the working space giving a clear view of the work in progress.

Emergency Stop

Big red button located on the top of the laser engraver allows operators to stop the laser and the motion carriage immediately to provide highly safety operation.

Built-in SmartBOX™

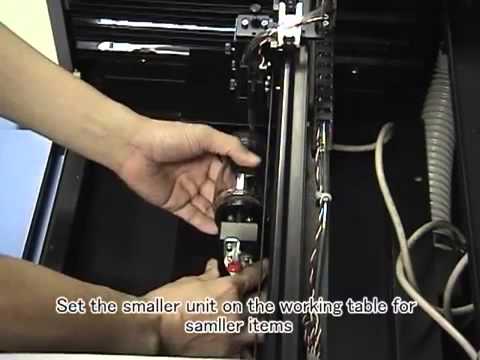

The C180II laser engraver built-in SmartBOX™ produces a downward pulling force to keep light items in place creating a stable working environment.

SmartCENTER™ (Patented)

The super user-friendly SmartCENTER™ function helps end users to easily and automatically locate the center point of objects of any shape vastly eliminating tedious setup time.

Smart Vacuum

Smart vacuum adjustment is a fantastic design which allows users to choose top or bottom ventilation according to their laser engraving demands.

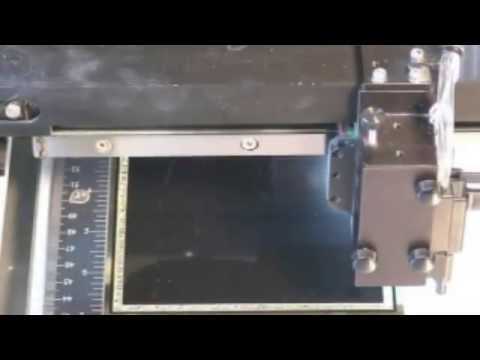

Bridge Cutting

Bridge Cutting function diversifies the laser cutting into packaging prototyping and fulfills versatile requirements. Define the cutting gap to create the dashed line effect from user friendly print driver interface. Bridge Cutting online
