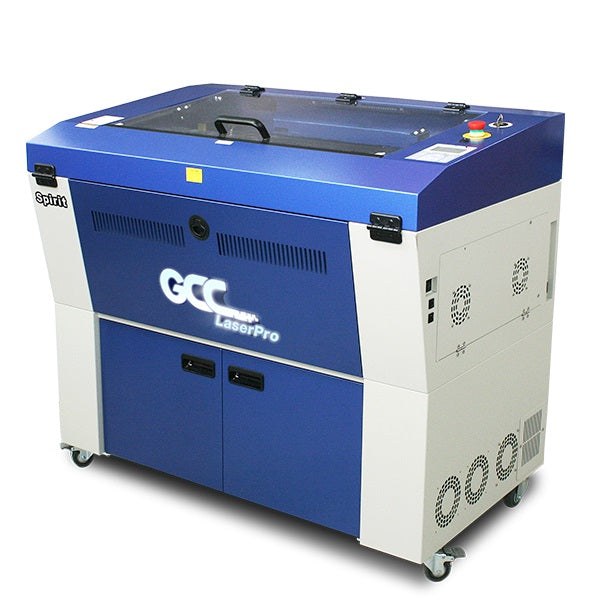

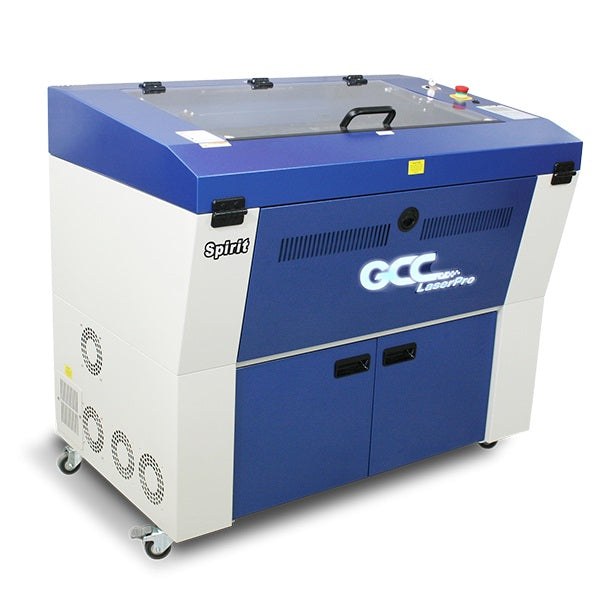

New GCC LaserPro Spirit 12-100W CO2 Laser Engraver With Intuitive Control Panel Interface

GCC LaserPro Spirit CO2 Laser Engraver is designed with the operator in mind and carrying various innovative features, reliable mechanics, and excellent laser output quality. GCC LaserPro Spirit CO2 Laser Engraver is the missing piece in your operations puzzle, putting you on track for continued growth in your laser engraving and cutting business!

Specifications

• Work Area - 640 x 460 mm (25 x 18 in.) Extendable to 740 x 460 mm (29 x 18 in.)
• Max. Part Size (L x W x H)
• All Doors Closed - 762 x 482.6 x 165 mm (30 x 19 x 6.5 in.)
• All Doors Open - 762 x ∞ x 165 mm (30 x ∞ x 6.5 in.)
• Table Size - 790 x 530 mm (31.1 x 20.9 in.)
• Dimensions - 1125 x 720 x 1005 mm (44.3 x 28.3 x 39.6 in.)
• Laser Source - 12 to 100W 10.6-μm sealed CO2 Laser / 20W & 60W 9.3-μm sealed CO2 Laser
• Cooling - Air-cooled, Operating environment temperature 15°-30°C (60°-86°F)
• Drive - Closed-loop DC Servo control
• Maximum Motor Speed - 60 IPS**
• Speed Control - Adjustable from 0.1-100% (Up to 16 color-linked speed settings per job)
• Power Control - Adjustable from 0-100% (Up to 16 color-linked power settings per job)
• Engraving Capability - 256-level gray scale image processing capability
• Distance Accuracy - 0.254 mm or 0.1% of move, whichever is greater
• Z-Axis Movement - Automatic
• Focus Lens - Standard 2.0", optional 1.5", 2.5", & 4.0" available
• Resolution (DPI) - Available 125, 250, 300, 380, 500, 600, 760, 1000, 1500
• Computer Interface - 10 Base-T Ethernet, USB Type-A 2.0 – For USB storage (Max. 32GB capacity, FAT file system), USB Type-B 2.0  – For connecting with the computer
• Compatible Operating Systems - MS Windows
• Display Panel - 4-line LCD display showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus
• Safety - Class I Laser Product Compliant with EN60825, Class II Laser Product Compliant with CDRH, 2006/42/EC Machinery Directive Compliance, Class 4 Laser Product Compliant with CDRH with the optional pass-through door module
• Operation Voltage - Laser below 80Watt, 100-240VAC, 50-60Hz Auto Switching, Max. 15A;, Laser 80Watt and above, 200-240VAC, 50-60Hz, Max. 15A
• Fume Extraction System External exhaust system with minimum flow rate 640m3/h (CFM 377 ft3/min) is required,2.3kPA negative pressure (Pure-Air PA-1000FS @ 4" exhaust port)

Features

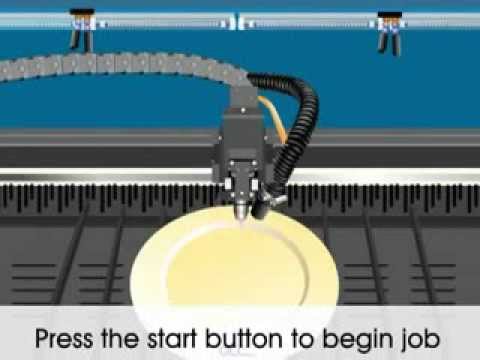

Drag-N-Play

An exceptionally innovative and user-friendly feature based on servomotor technology simplifies operations and shortens setup time. Simply hand drag the lens carriage of the laser engraver to the desired position to be engraved and press the start button to commence the job.

Innovative Windows Driver

Directly output from familiar designing software like Illustrator, CorelDraw, AutoCad through GCC LaserPro Windows driver for laser engravers. The innovative driver features SmartCENTER, Air Assist by Pen, Defous by Pen, Bridge Cutting, Drill, Dithering Patterns, and more to reduce set up time and make easy adjustments to achieve marvelous output quality.

Built-In Networking Connection

Network connection enables multiple laser engravers to be operated by one PC and multiple PCs to share a single unit of laser engraver. The Ethernet port has made data transmission easier and faster for GCC LaserPro users using network connection. Free your designers with great flexibility and maximum machine versatility.

Key Switch & Emergency Stop

Key switch safeguards the laser engraver from unauthorized use. Prominent emergency button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a safe operating environment.

SmartCENTER™ (Patented)

The super user-friendly SmartCENTER™ function helps end users to easily and automatically locate the center point of objects of any shape vastly eliminating tedious setup time.

Astonish 3D Engraving

GCC LaserPro integrates laser firing control and image processing technology to create a 3D laser engraving function, the laser system assigns up to different laser powers to 200 levels of grayscale in the image to make the spectacular 3D effects with different slopes.

TrueImage™ Engraving Technology (Patented)

The patented TrueImage function employs a uniquely designed laser firing algorithm that presents its most vivid form when laser engraving images.

SmartACT™ (Patented)

Spirit laser engraver SmartACT™ is a groundbreaking technology that reduces the ramping process and job running time for laser engraving, which translates into higher productivity.

RoHS Compliance

All GCC laser engravers are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide eco-friendly products to protect the earth for our further generations.

SmartPIN™ AutoFocus
(Patented)

The plug-and-play probe design makes focusing a one-touch process and provides the accuracy and precision required for optimum quality even when laser engraving on transparent materials.

Pass-through Front to Rear Doors (Optional)

A design with doors on both ends of the laser engraver to accommodate extremely long working pieces without the need for a screwdriver.

DuraGuide Motion Design

Systematic and reliable motion system embedded with strong mechanical framework and accurate servo motor control technology to deliver superb laser engraving output quality under rapid movement.

SmartLIGHT

A Built-in LED light module illuminates the working space of the laser engraver and makes every laser engraving detail easy to see.

Intuitive Control Panel Interface

A user-friendly menu-driven interface system simplifies the operation of Spirit series laser engraver. Hot keys design and job status display facilitates your work and makes it clear and easy to carry out.

Rigid and Reliable Construction

Rigid and stable chassis construction of the laser engraver ensures consistent output quality under high speed movement.

Programmable Origin Modes

Easy-to-use multiple position modes allow the operators an effortless way to set up laser engraving jobs with Drag-N- Play. Repetitive workflows can be drastically simplified by relocating the origin position to any desired location.

SmartLID™ (Patented)

An innovative lid that opens from both ends of the laser engraver allows easy access for daily maintenance.

Closed-loop DC Servo Technology

Spirit laser engraver utilizes Closed-loop DC servo motor that delivers greater continuous shaft power at higher speeds than a stepper of the same frame size. In addition, It can also give far greater accuracy for laser engraving due to the continuous movement, instead of constant stopping and starting.

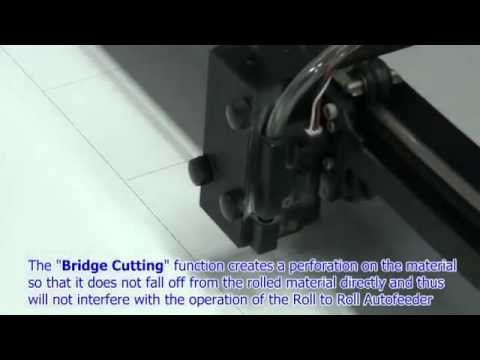

Bridge Cutting

Bridge Cutting function diversifies the laser cutting into packaging prototyping and fulfills versatile requirements. Define the cutting gap to create the dashed line effect from user-friendly print driver interface.
Bridge Cutting online
