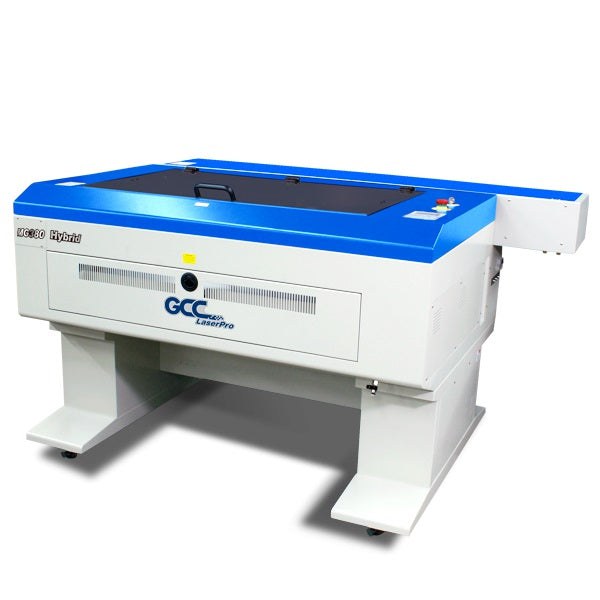

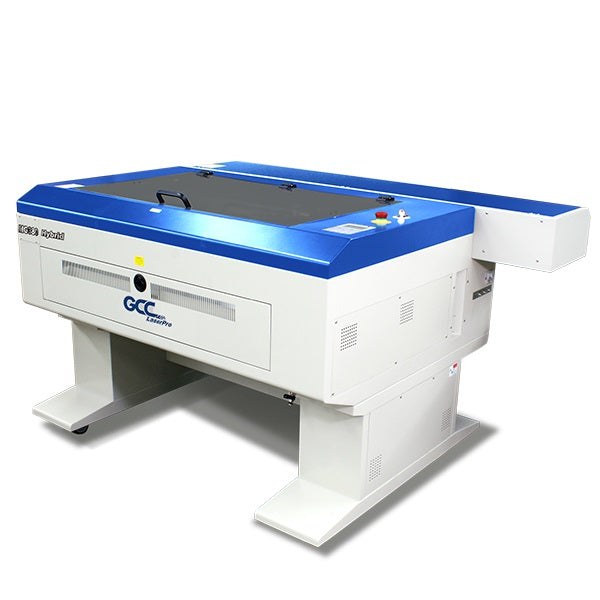

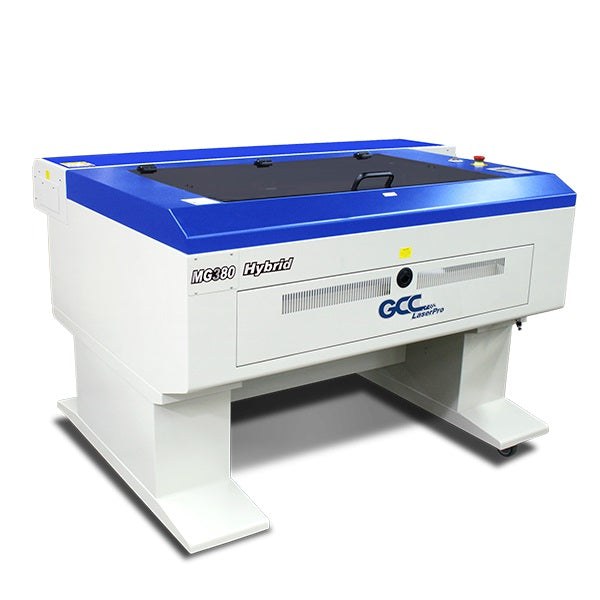

New GCC Laser Pro MG380Hybrid 12-100W CO2 Laser Cutter Machine With Superb Engraving and Cutting Quality

Specifications

• Laser Wattage - RF driven metal laser tube: 12W, DC driven glass laser tube: 100W
• Laser Source - Sealed CO2 Laser
• Laser Cooling - RF driven metal laser tube: Air Cooled / DC driven glass laser tube: Water Cooled
• Working Area - 960 x 610 mm (38 x 24 in.)
• Part Size (L x W x H)
  • All Doors Closed - 1041 x 635 x 165 mm (41 x 25 x 6.5 in.)
  • All Doors Open - 1041 x ∞ x 165 mm (41 x ∞ x 6.5 in.)
• Table Size - 1085 x 750 mm (42.7 x 29.5 in.)
• Dimensions - 1750 x 1242 x 1017 mm (68.9 x 48.9 x 40 in.)
• Driving Motor -Closed-loop DC Servo Control
• Maximum Motor Speed - 40 IPS
• Speed Control - Adjustable from 0.1~100% (Up to 16 color-linked speed settings per job)
• Power Control - Adjustable from 0~100% (Up to 16 color-linked power settings per job)
• Engraving Capability - 256-level gray scale image processing capability
• Distance Accuracy - 0.254 mm or 0.1% of move, whichever is greater
• Resolution (DPI) - Available 125, 250, 300, 380, 500, 600, 760, 1000
• Z-Axis Movement - Automatic
• Focus Lens - Standard 2.0", optional 1.5", 3"
• Interface - 10 Base-T Ethernet, USB Type-A 2.0 – For USB storage (Max. 32GB capacity, FAT file system), USB Type-B 2.0 – For connecting with the computer
• Memory Buffer - 32MB standard
• Safety - Class I Laser Product Compliant with EN60825, Class II Laser Product Compliant with CDRH, 2006/42/EC Machinery Directive Compliance, Class 4 Laser Product Compliant with CDRH with the optional pass-through door module

Features

RoHS Compliance

All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.

Dual Laser Tubes (Patented)

Possesses the high engraving quality of RF driven laser tubes while taking advantage of low cost per wattage of DC excited CO2 glass laser tubes to deliver clear cutting edge on thick materials.

Innovative Software Features

Simple step engraving and cutting laser parameters in GCC LaserPro driver, MG380Hybrid will automatically use different laser tubes to do its best output quality. A real smart laser engraver/ cutter ever.

Emergency Stop

Big red button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a highly safe operational environment.

Motion System with DC Servo Motor

The GCC LaserPro MG380Hybrid utilizes a high speed closed-loop DC servo motor for precise and fast carriage movement to ensure exceptionally accurate cutting outputs.

AutoFocus (Patented)

Patented Autofocus Gauge adjusts the laser engraver to the precise focal point on the engraving area automatically. The Autofocus is the most effective lens-focusing tool that prevents human error when exact measurement of distance from the surface of the working material is needed.

Programmable Origin

Easy-to-use position modes allow the operator an effortless way to setup a job with Drag-N-Engrave. Repetitive workflows can be drastically simplified by relocating the origin position to any desired location.

Easy-to-use Control Panel

Embrace total solution in one machine. Innovative GCC LaserPro MG380Hybrid deliver superior engraving and cutting result by its high end technology.

Rigid and Reliable Construction

Solid machine structure ensures superior output quality and motion stability for superb performance.

Superb Engraving and Cutting Quality

Designed for simplifying complex tasks, the GCC LaserPro MG380Hybrid’s user-friendly interface is a great facilitator to provide powerful function settings.
