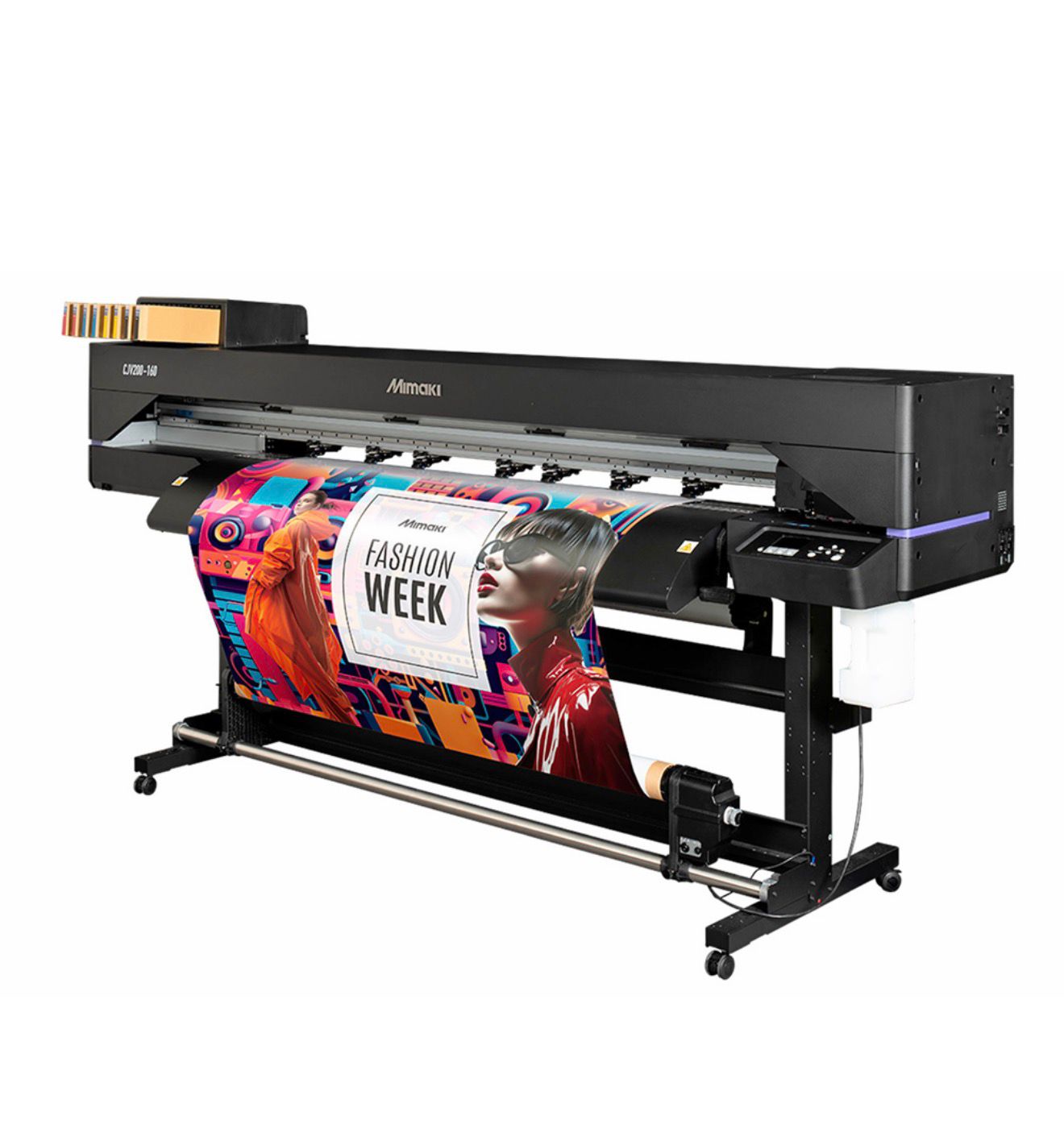

New Mimaki CJV200-130 54" Inch Print and Cut Eco-Solvent Inkjet Printer Cutter Plotter Designed for High Image Quality and Ease of Use for Everybody
Flexible Open Financing options are available.
Get pre-qualified in seconds - Start now!
Leasing Options Available – Apply Here
CJV200-130
Suitable for variously sized signage and
point-of-sale marketing materials
Max. Print / Cut Width：1,361 (53.6")mm
Max. Media Width：1,371 (54.0")mm
Features
Overwhelming Beauty
The CJV200 is equipped with a single print head of "330 Engine" in Mimaki's flagship printer. The technology of precise control of a minimum 3pl ink drop and the print head that delivers high-density prints, even at high speeds, resulting in overwhelmingly beautiful printing.
Reliable Productivity even during Peak Season
Easy for Everyone
Simple Design
Single Print Head for Simple Maintenance
Single print head system contributes less cleaning time and adjustment time. The simple design allows you to work quickly and easily.
Wide Open Cover for Easy Access
Up-Facing Control Panel for Easy Operation
Easy and Precise Automatic Set Up
Automatically performs necessary adjustment at the media setup to ensure optimal image quality at all times.
(DAS | Dot Adjustment System)
Ink Saving Function: Reduce Ink Consumption with Just 2 Clicks
Anyone can easily reduce ink consumption without technical expertise.
This function is available with any substrates and profiles.
Simple Design Software "Simple Create"
SimpleCreate is software that allows you to create labels, POP, stickers, and other designs without a need of DTP software.
It provides simple tools for creating designs and cutlines, as well as direct output from the software.
New GBL-free eco-solvent ink "SS22"
Inks for general eco-solvent printers contain an ingredient (GBL) whose use has been increasingly regulated worldwide in recent years. SS22, first installed in the CJV200 Series, is a new eco-solvent ink that does not contain GBL and is safer for operators than ever before.
The SS22 ink inherits the weather resistance, dryness, and other features of SS21 ink, which has long been popular in the market, and is the best-class in the industry, and can be switched to CJV200 from conventional machines with confidence. It is also sold in a paper cartridge format that significantly reduces the amount of plastic used, making it an environmentally friendly solution.
Specifications
|
|
CJV200-75 |
CJV200-130 |
CJV200-160 |
|
|
Print head |
On-demand piezo head |
|||
|
Print resolution |
600dpi, 900dpi, 1200dpi |
|||
|
Print gap |
By manual 2 levels (1.5/2.0 mm) |
|||
|
Ink |
Type/Color |
Eco-solvent ink |
||
|
Capacity *2 |
SS22：440ml Ink cartridge / 1L Ink pack |
|||
|
Maximum print width |
800mm (31.5") |
1,360mm (53.5") |
1,610mm (63.4") |
|
|
Media |
Maximum width |
810mm (31.9") |
1,370mm (53.9") |
1,620mm (63.8") |
|
Thickness |
1.0 mm or lower |
|||
|
Roll diameter |
φ180 mm or less |
|||
|
Roll weight |
25 kg (55.1 lb) or less |
|||
|
Roll inside diameter |
2 inch / 3 inch |
|||
|
Cutting function |
Cutting speed |
Max. 300 mm/s |
||
|
Acceleration |
Max. 0.5G |
|||
|
Cutting pressure |
10 - 450 gf |
|||
|
Cutter response times |
10 times/sec |
|||
|
Repeatability |
±0.2 mm (Excluding shrinkage / expansion caused by the film temperature) |
|||
|
Interface |
Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed |
|||
|
Certifications |
VCCI class A, FCC class A, ETL IEC 62368-1, |
|||
|
Power supply |
Single-phase (AC 100–120V/200–240V)×2 50/60Hz±1Hz |
|||
|
Power consumption |
Max. 1,320 W x 2 or less / Min. 4.5 W or less (Sleep mode) |
|||
|
Operational environment |
Temperature: 20–30 °C (68–86 °F) |
|||
|
Dimensions (W×D×H) |
1,960mm × 748mm × 1,370mm (77.2"×29.4"×53.9") |
2,520mm × 748mm × 1,370mm (99.2"×29.4"×53.9") |
2,770mm × 748mm × 1,370mm (109.0"×29.4"×53.9") |
|
|
Weight |
105 kg (231.5 lb) |
130 kg (286.6 lb) |
140 kg (308.6 lb) |
|
*1 Scheduled to be available in March 2025.
*2 The use of 1L/2L ink packs requires OPT-J0364 MBIS3 (Mimaki Bulk Ink System 3) and OPT-J0576 MBIS BKT OPT (attachment), which are options sold separately.
*3 600 ml ink pack requires eco cartridge (OPT-J0361: ECO CASE 4). Eco cartridges can be used repeatedly by replacing ink packs.
- Some of the samples in this website are artificial renderings.
- Specifications, design and dimensions stated in this website may be subject to change without notice (for technical improvements, etc).
- The corporate names and merchandise names written on this website are the trademark or registered trademark of the respective corporations.
- Inkjet printers print using extremely fine dots, so colors may very slightly vary after replacement of the printing heads. Also note that if using multiple printer units, colors could vary slightly from one unit to other unit due to slight individual differences.
